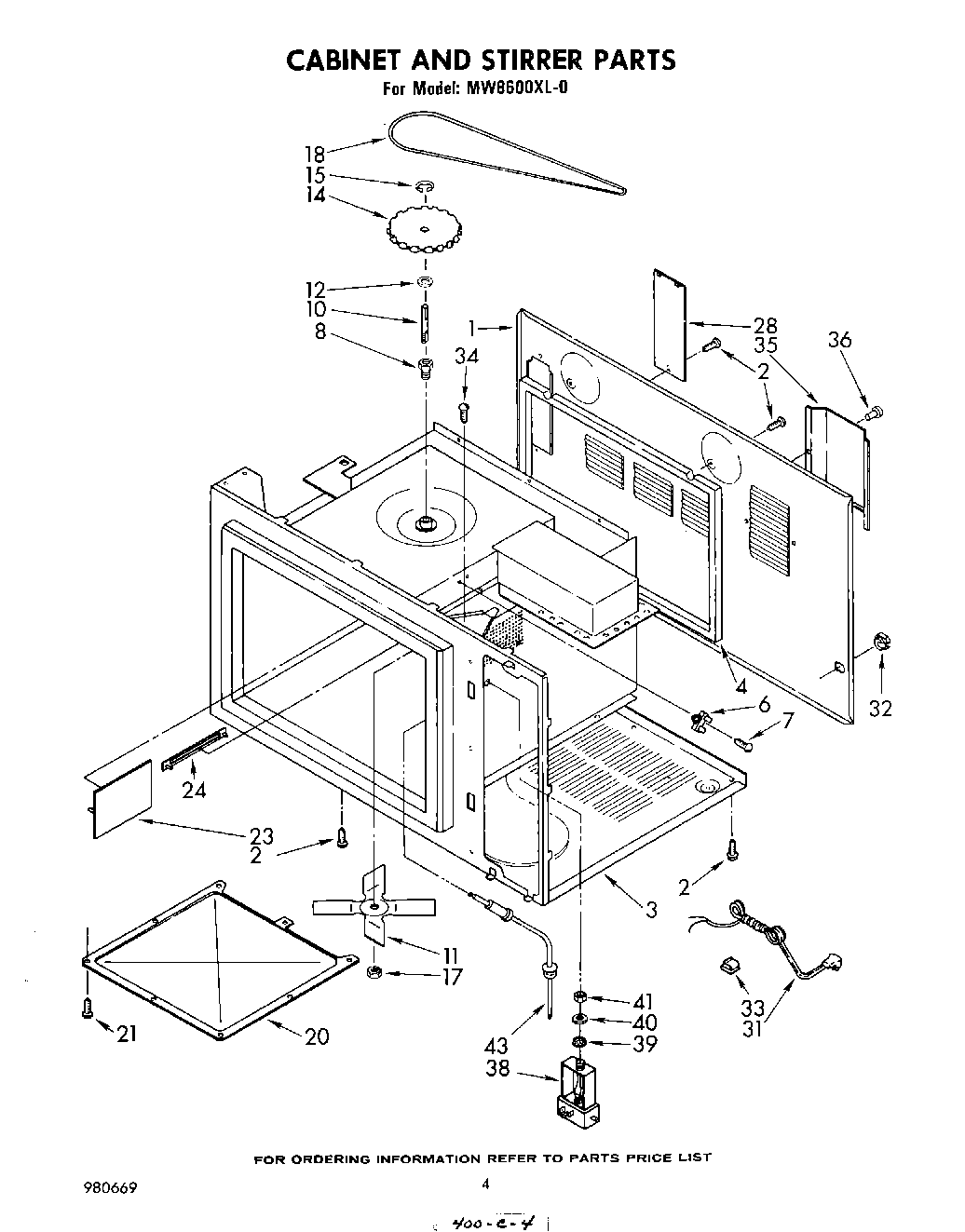

MW8600XL0 03 – CABINET AND STIRRER

Products

Position	Product
1	Back, Cabinet (Not Serviceable)
2	WP308685 Whirlpool Microwave Screw
3	Base, Cabinet (Not Serviceable)
4	Seal, Cavity Back
6	Fuse, Thermal
7	Screw
8	Bushing, Stirrer
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
14	Pulley, Stirrer Blade
15	“E“ Ring
17	Nut, Hex (1/4-20)
18	Belt, Drive
20	Cover, Stirrer
21	Fastener (2)
23	Shield, Exhaust Probe
24	Cover, Rivet
28	Cover, Lamp
31	Power Cord (Alternate)
31	Power Cord (Alternate)
32	Strain Relief, Bushing
33	8528351 Whirlpool Clip
34	Screw, 10-32 x 1/2 (4)
35	Shield, Louver (Includes Illus. 36)
36	Rivet
38	Jack, Probe
39	Washer, Internal Lock
40	Washer
41	Nut
43	temperature probe (alternate)
43	temperature probe (alternate)
