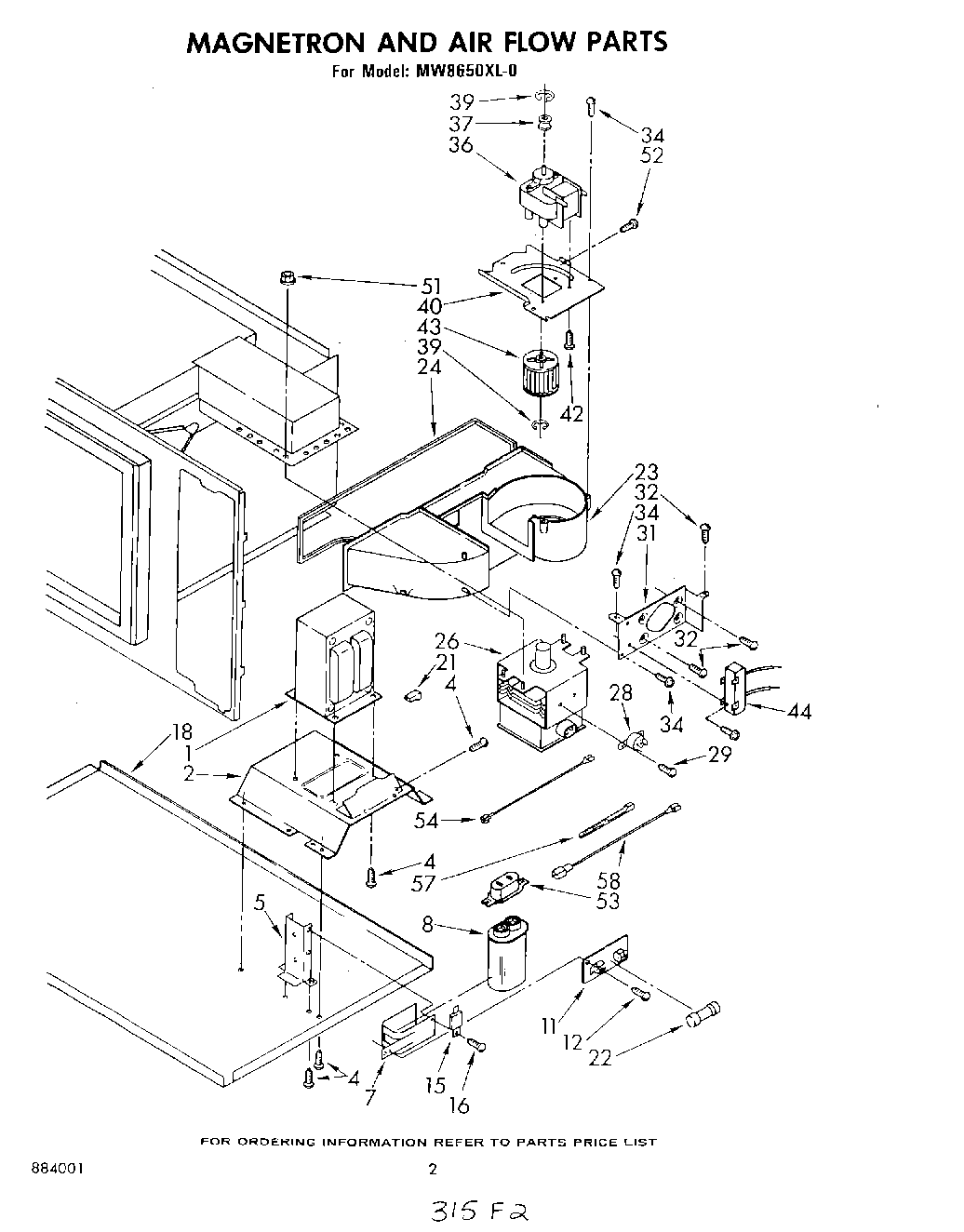

MW8650XL0 02 – MAGNETRON AND AIR FLOW

MW8650XL0 02 – MAGNETRON AND AIR FLOW

Written by

in

MW8650XL0 02 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Transformer
2Bracket, Transformer
4Screw, 10-32 x 1/2 (4)
5Bracket, Capacitor
7Strap, Capacitor
8Capacitor (Alternate)
8Capacitor (Alternate)
11Screw (2)
12WP489069 Whirlpool Compactor Screw
15Rectifier, High Voltage
16WP489128 Whirlpool Refrigerator Screw
18Base, Chassis (Not Serviceable)
21Housing, Receptical
22WPW10017410 Whirlpool Fuse
23Air Duct (Horizontal)
24SEAL
26Magnetron (Alt.)
26Magnetron (Alt.)
26Magnetron (Alt.)
28Thermostat
29Screw
31Mounting Brace, Duct
32WP90767 Whirlpool Screw
34Screw, 11-16 x 1/2 Double Load Space Thread (5)
36Motor (Alt.)
36Motor (Alt.)
37Pulley, Motor
39“E“ Ring
40Bracket, Motor
42WP486579 Whirlpool Air Conditioner Screw
43Wheel, Blower
44Reed Relay (Alternate)
44Reed Relay (Alternate)
51Flange Nut (4)
52WPL 310629
53Cover, Capacitor
54Jumper, High Voltage Red 6-3/4“ (2)
57WPW10339879 Whirlpool Wire Tie
58High Voltage Lead, Gray 6-3/4“ (2)
