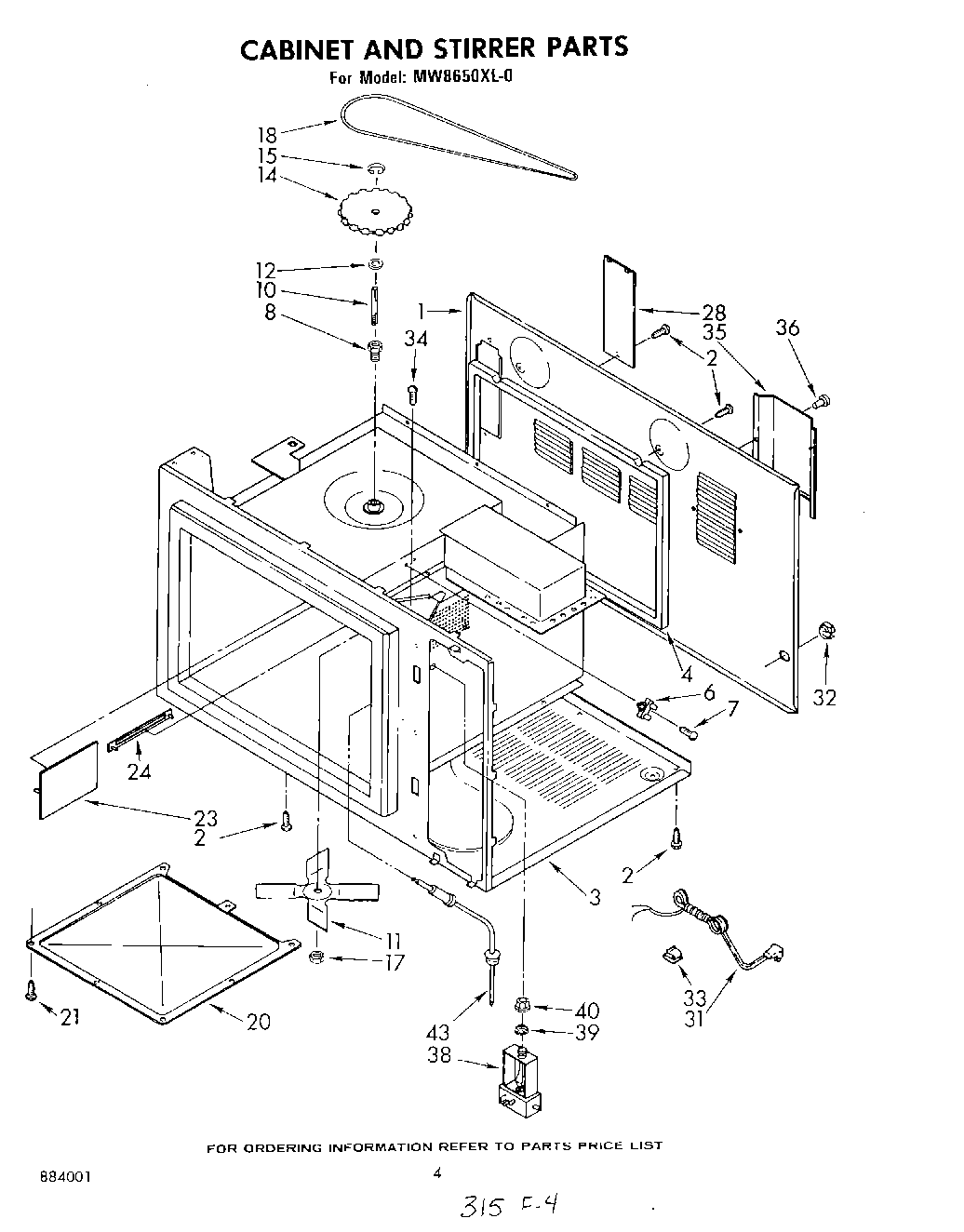

MW8650XL0 03 – CABINET AND STIRRER

Products

PositionProduct
1Back, Cabinet (Not Serviceable)
2WP308685 Whirlpool Microwave Screw
3Base, Cabinet (Not Serviceable)
4Seal, Cavity Back
6Fuse, Thermal
7Screw
8Bushing, Stirrer
10Shaft, Stirrer
11Stirrer Blade
12Washer, Nylon
14Pulley, Stirrer Blade
15“E“ Ring
17Nut, Hex (1/4-20)
18Belt, Drive
20Cover, Stirrer
21Fastener (2)
23Shield, Exhaust Probe
24Cover, Rivet
28Cover, Lamp
31Power Cord (Alternate)
31Power Cord (Alternate)
32Strain Relief, Bushing
338528351 Whirlpool Clip
34Screw, 10-32 x 1/2 (4)
35Shield, Louver (Includes Illus. 36)
36Rivet
38Jack, Probe
39Washer, Internal Lock
40Nut & Washer
43temperature probe (alternate)
43temperature probe (alternate)
