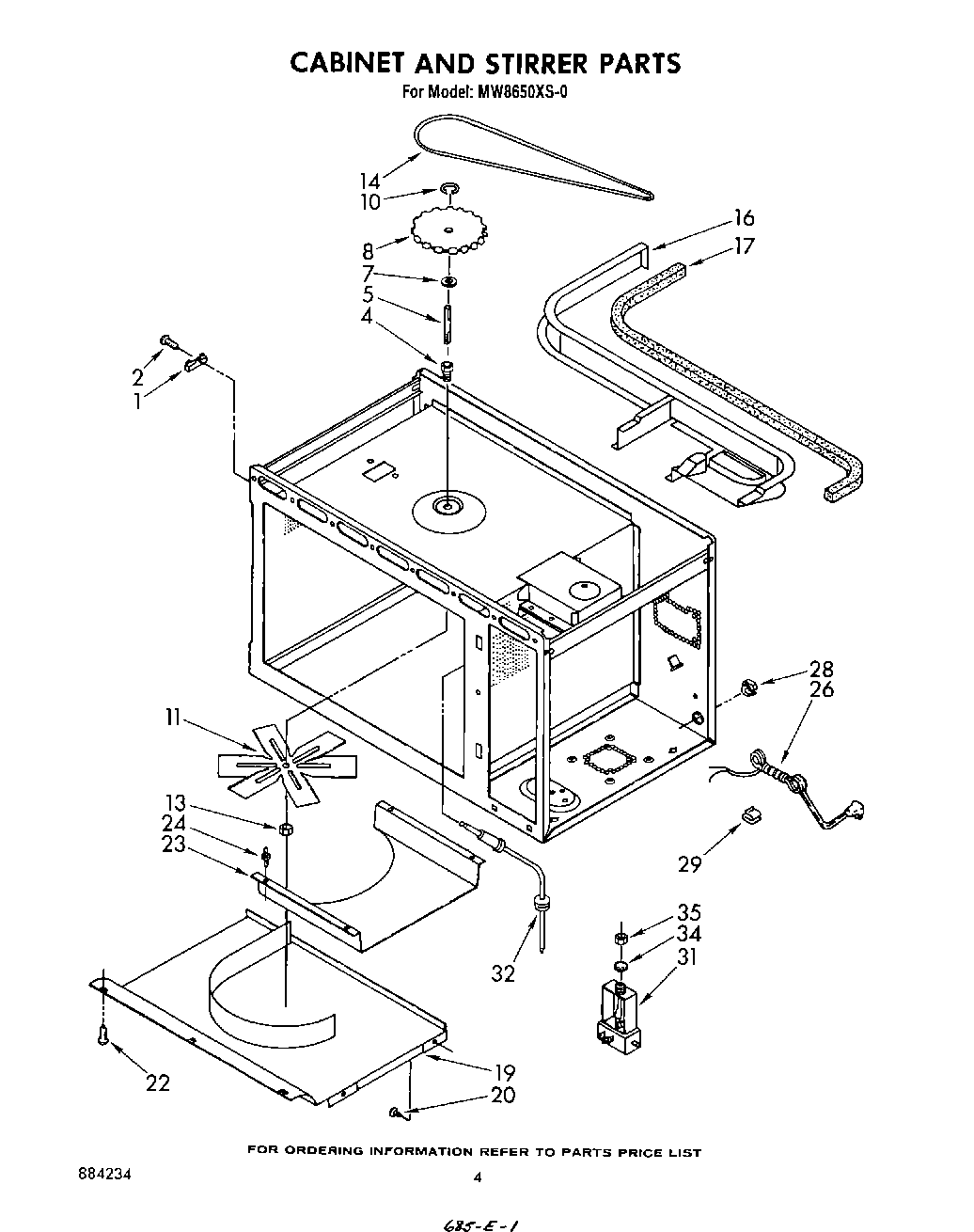

MW8650XS0 03 – CABINET AND STIRRER

MW8650XS0 03 – CABINET AND STIRRER

Written by

in

MW8650XS0 03 – CABINET AND STIRRER

Products

PositionProduct
1Fuse, Thermal
2screw
4Bushing, Stirrer
5Shaft, Stirrer
7Washer, Nylon
8Pulley, Stirrer Blade
10“E“ Ring
11Stirrer Blade
13WP487939 Whirlpool Refrigerator Nut
14WP313646 Whirlpool Microwave Drive Belt
16Baffle, Air
17Seal, Foam
19Silicone Rubber Gasket
20Fastener (4)
22screw, 8-32 x 1/2 (3)
23Plate, Tuning
24Support (4)
26Power, Cord (Alt.)
26Power, Cord (Alt.)
26Power, Cord
28Strain Relief, Bushing
29Clip
31Jack, Probe
32Probe, Temperature
32(Alt.)
32(Alt.)
34Washer, Internal Lock
35Nut
