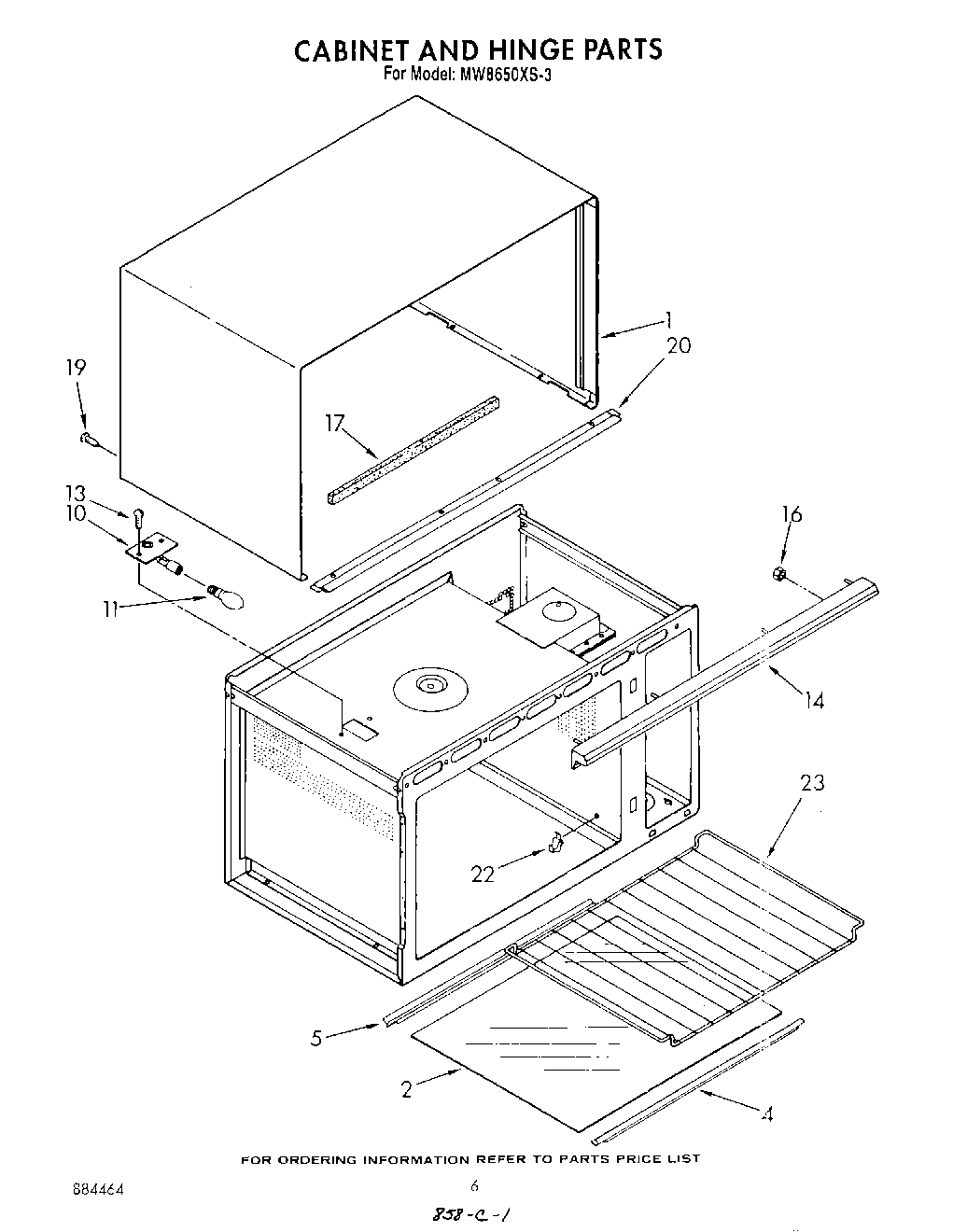

MW8650XS3 04 – CABINET AND HINGE

Written by

Products

Position	Product
1	Wrapper, Cabinet
2	Shelf, Microwave (Install with Silastic 482338)
4	Trim, Shelf (Front)
5	Trim, Shelf (Rear)
10	Snap-In Socket
11	WP3395618 Whirlpool Light Bulb
13	screw
14	Grille, Air
16	Nut (3)
17	Seal, Foam
20	Trim, Lower
20	WP488729 Whirlpool Refrigerator Door Screw
22	WP3149478 Whirlpool Microwave Support
23	rack, wire
