| Guide, Use & Care |
| Tech Sheet |
| List, Repair P |
| WPL LIT311894 |

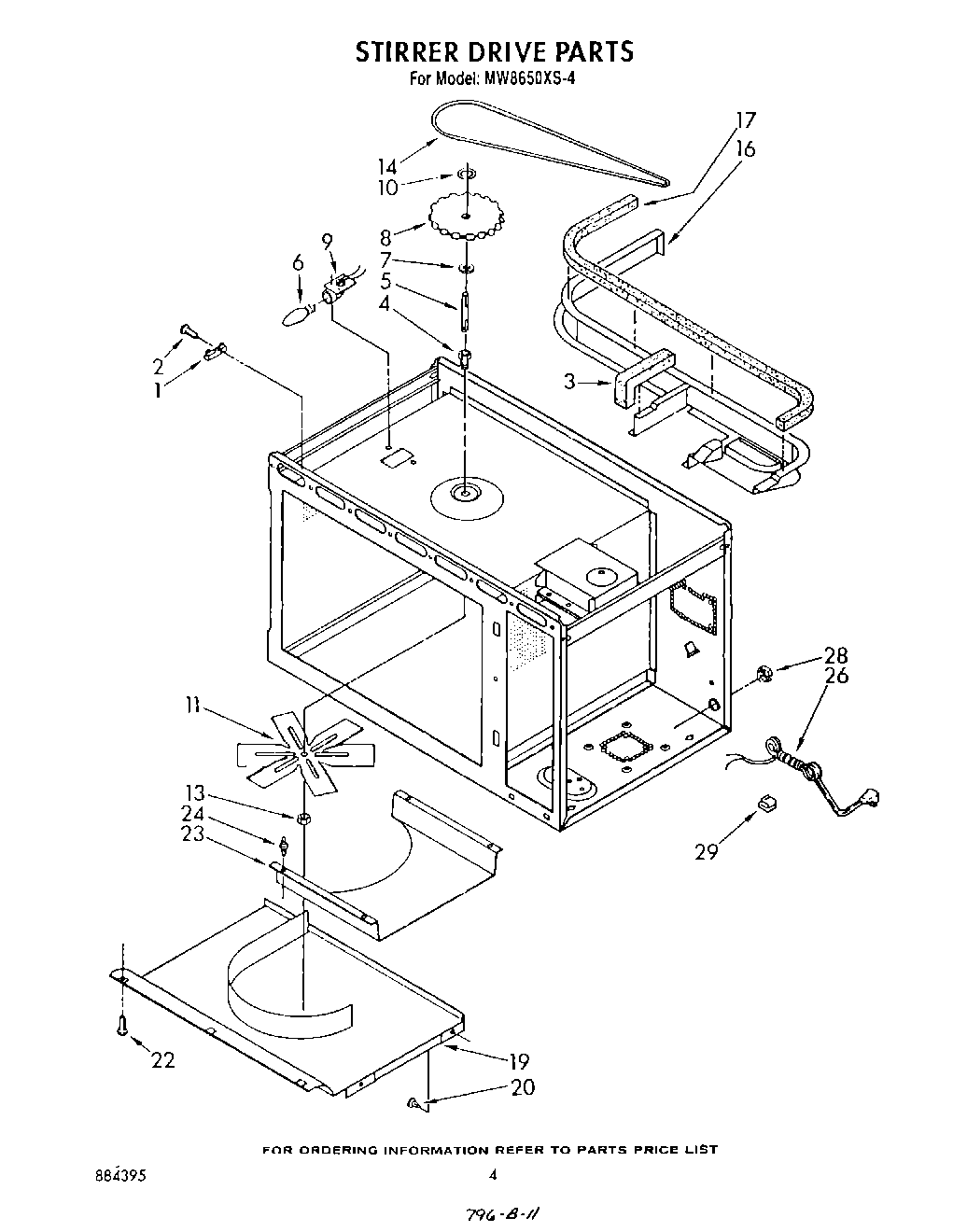

| 1 | Fuse, Thermal |
| 2 | screw |
| 3 | Seal, Foam |
| 4 | Bushing, Stirrer |
| 5 | Shaft, Stirrer |
| 6 | Snap-In Socket |
| 7 | Washer, Nylon |
| 8 | Pulley, Stirrer Blade |
| 9 | WP3395618 Whirlpool Light Bulb |
| 10 | ``E`` Ring |
| 11 | Stirrer Blade |
| 13 | WP487939 Whirlpool Refrigerator Nut |
| 14 | WP313646 Whirlpool Microwave Drive Belt |
| 16 | Baffle, Air |
| 16 | Fastener (2) |
| 17 | Seal, Foam |
| 19 | Silicone Rubber Gasket |
| 20 | Fastener (4) |
| 22 | screw, 8-32 x 1/2 (3) |
| 23 | Plate, Tuning |
| 24 | Support (4) |
| 26 | Power, Cord (Alt.) |
| 26 | Power, Cord (Alt.) |
| 26 | Power, Cord |
| 28 | Strain Relief, Bushing |
| 29 | Built-in Kits (30``) |
| 29 | WP482338 Whirlpool Refrigerator Adhesive |
| 29 | Paint, Cord Brown Spray (13 Oz.) |
| 29 | 24`` Built-In Kit |
| 29 | 27``built-in Kit |
| 29 | 242831 Whirlpool Oven Wire |
| 29 | Wire, 25`` Roll (White 14 GA.) |
| 29 | Wire, 25` Roll (Red 14 Ga.) |
| 29 | Wire, 25` Roll (Black 14 Ga.) |
| 29 | WP261869 Whirlpool Microwave Paint |
| 29 | Cord Brown |
| 29 | Wire (14 Ga. 150 c Blue) |
| 29 | 261900 Whirlpool Microwave Spray |
| 29 | WPL 832985 |
| 29 | WPL 591014 |
| 29 | 1 |
| 29 | Wire (14 Ga. 200 c Brown) |
| 29 | 18 Ga. 80~c Rating (Red) |
| 29 | Wire (12 Ga. 150 c Black) |
| 29 | Clip |
| 29 | Wire (14 Ga. 150 c Yellow) |
| 29 | Wire (14 Ga. 150 c Orange) |
| 29 | Wire (14 Ga. 150 c Green) |
| 29 | Wire (14 Ga. 150 c Brown) |
| 29 | Wall Mount Kit |
