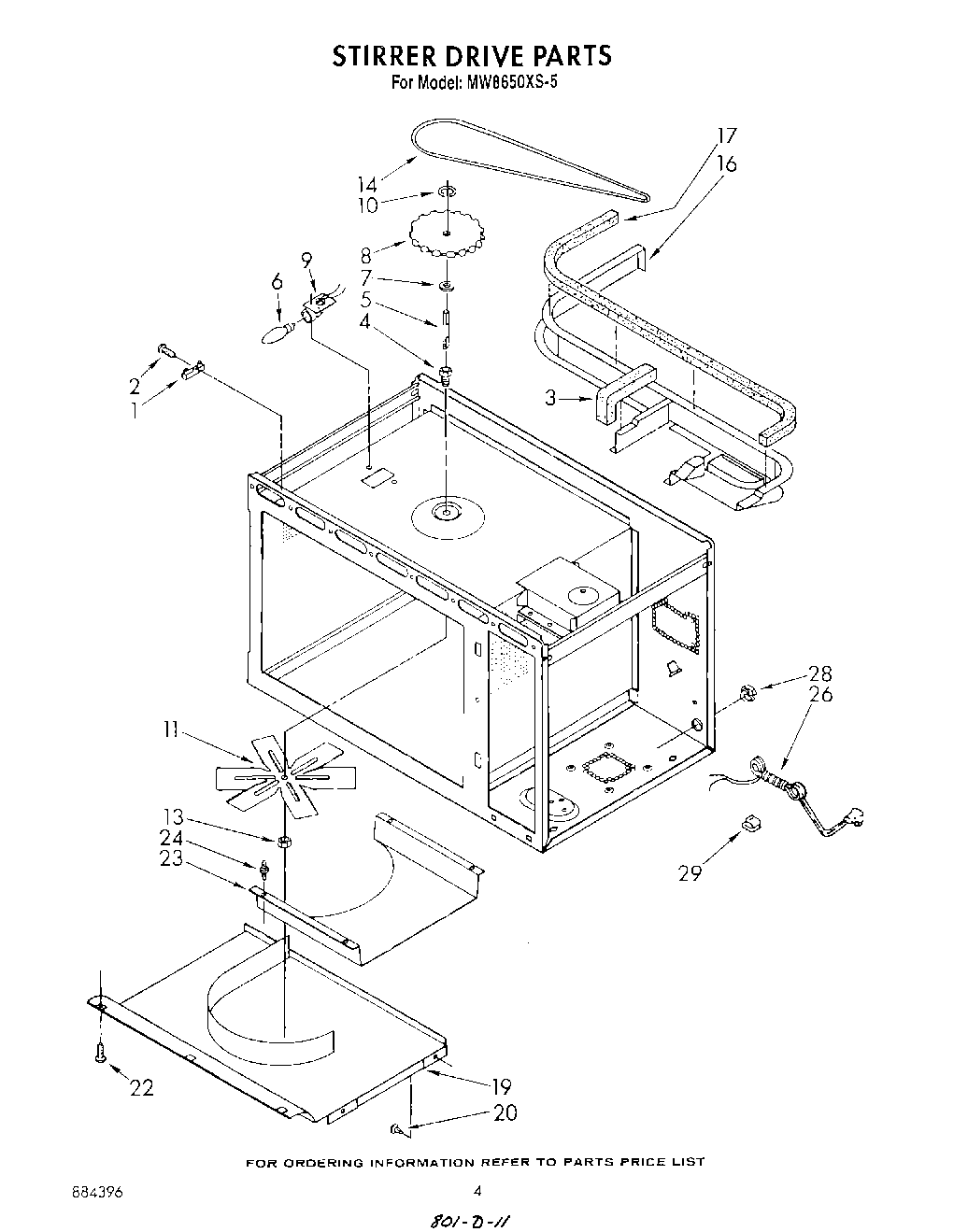

MW8650XS5 03 – SECTION

Products

Position	Product
	Guide, Use & Care
	Tech Sheet
	List, Repair P
	WPL LIT311894
1	Fuse, Thermal
2	screw
3	Seal, Foam
4	Bushing, Stirrer
5	Shaft, Stirrer
6	Snap-In Socket
7	Washer, Nylon
8	Pulley, Stirrer Blade
9	WP3395618 Whirlpool Light Bulb
10	“E“ Ring
11	Stirrer Blade
13	WP487939 Whirlpool Refrigerator Nut
14	WP313646 Whirlpool Microwave Drive Belt
16	Baffle, Air
16	Fastener (2)
17	Seal, Foam
19	Silicone Rubber Gasket
20	Fastener (4)
22	screw, 8-32 x 1/2 (3)
23	Plate, Tuning
24	Support (4)
26	Power, Cord (Alt.)
26	Power, Cord (Alt.)
26	Power, Cord
28	Strain Relief, Bushing
29	Built-in Kits (30“)
29	WP482338 Whirlpool Refrigerator Adhesive
29	Paint, Cord Brown Spray (13 Oz.)
29	24“ Built-In Kit
29	27“built-in Kit
29	242831 Whirlpool Oven Wire
29	Wire, 25“ Roll (White 14 GA.)
29	Wire, 25` Roll (Red 14 Ga.)
29	Wire, 25` Roll (Black 14 Ga.)
29	WP261869 Whirlpool Microwave Paint
29	Cord Brown
29	Wire (14 Ga. 150 c Blue)
29	261900 Whirlpool Microwave Spray
29	WPL 832985
29	WPL 591014
29	1
29	Wire (14 Ga. 200 c Brown)
29	18 Ga. 80~c Rating (Red)
29	Wire (12 Ga. 150 c Black)
29	Clip
29	Wire (14 Ga. 150 c Yellow)
29	Wire (14 Ga. 150 c Orange)
29	Wire (14 Ga. 150 c Green)
29	Wire (14 Ga. 150 c Brown)
29	Wall Mount Kit
