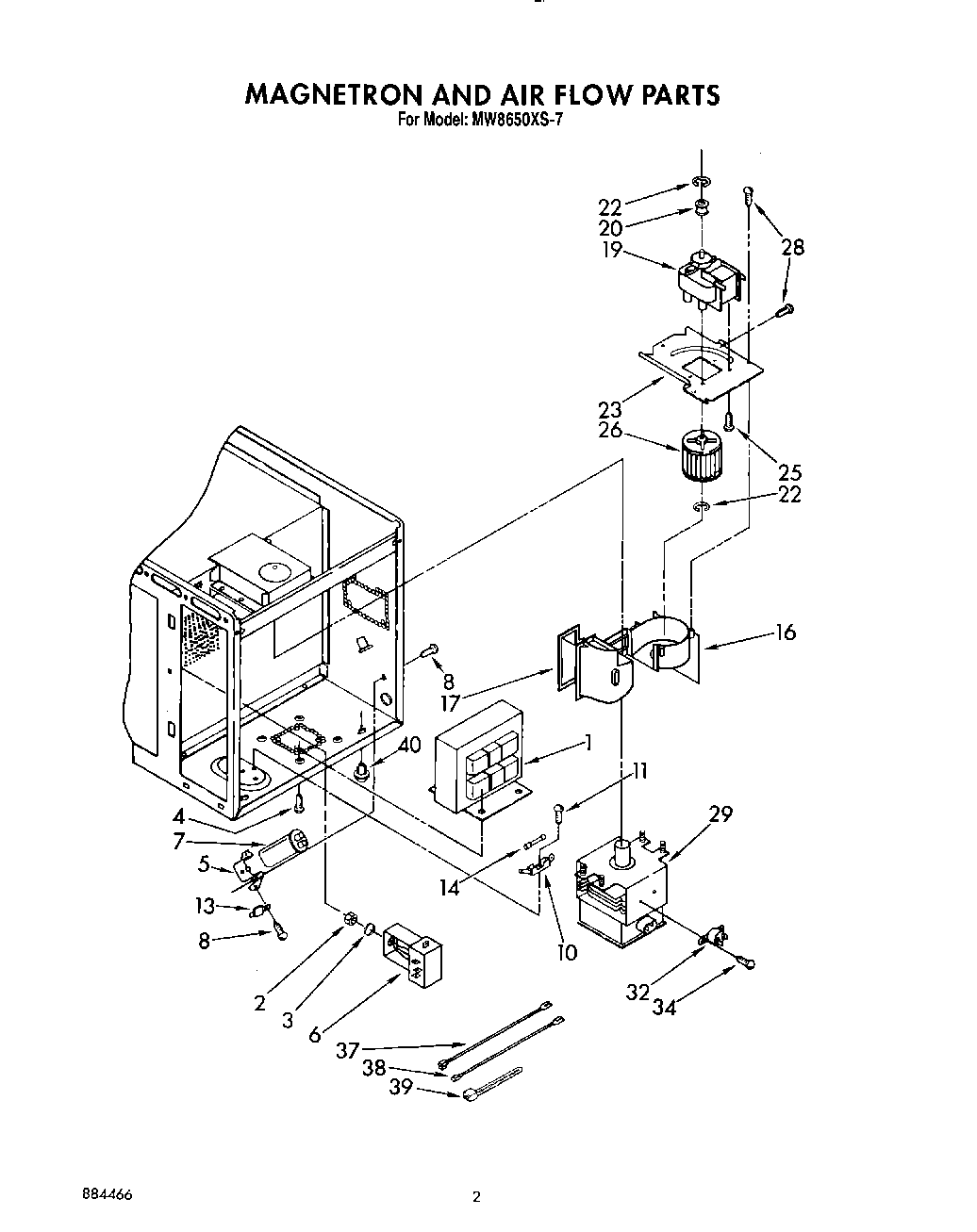

MW8650XS7 02 – MAGNETRON AND AIR FLOW, LIT/OPTIONAL

Products

Position	Product
	Repair Parts List
	WPL LIT3147573
	WPL LIT311894
	WPL LIT3147571
	Tech Sheet
	Guide, Use & Care
1	Screw 8-32 X 1/2
1	Transformer
2	Nut
3	Washer, Internal Lock
4	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5	Bracket, Capacitor
6	Probe Jack
7	Capacitor
10	Fuse Holder
11	Screw
13	Rectifier, High Voltage
14	Fuse (15 Amp)
16	Air Duct (Horizontal)
17	Seal, Air Duct
19	Transmotor
20	Pulley, Motor
22	“E“ Ring
23	Bracket, Motor
25	WP486579 Whirlpool Air Conditioner Screw
26	Wheel, Blower
29	Magnetron
32	Thermal Protector
34	Screw, 6A x 3/8 (2)
34	screw
34	Screw, 11-16 x 1/2 Double Load Space Thread (5)
37	Jumper, High Voltage Gray 8-11/16“
38	Jumper, High Voltage Red (6-5/16“)
39	WPW10339879 Whirlpool Wire Tie
40	Foot, Base (4)
