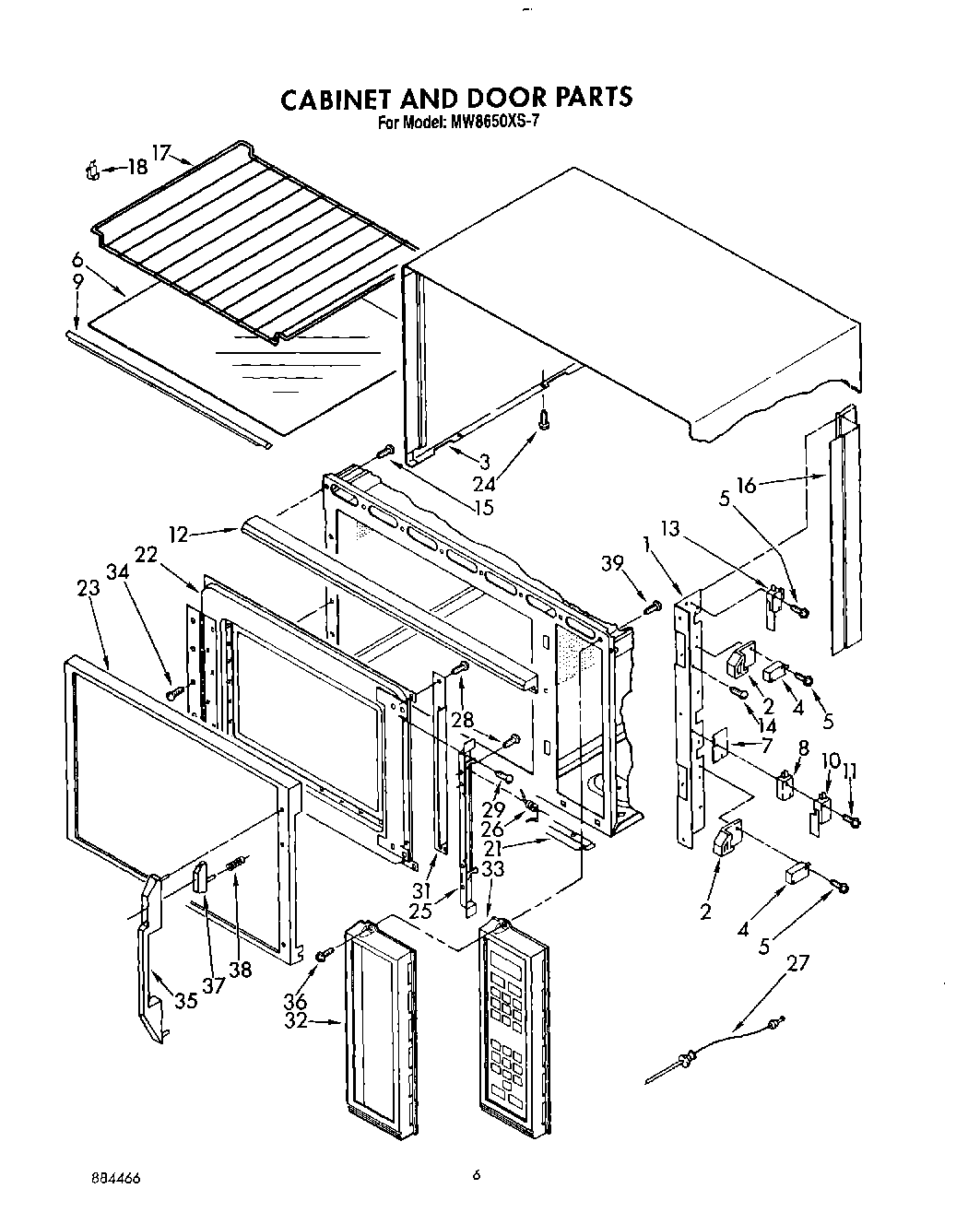

MW8650XS7 04 – CABINET AND DOOR

Products

PositionProduct
1Bracket, Catch
2Catch (2)
3Wrapper, Cabinet
4814037 Whirlpool Microwave Switch
6Shelf, Microwave (Install with Silastic 482338)
7Insulator
8Switch
9Trim, Shelf (Rear)
9Trim, Shelf (Front)
10Switch, Light/ Monitor
11Screw, 4-40 x 10 (2)
12Grille, Air
13Switch, Miniature
14WPL 312717
15screw (3)
16Shield
17rack, wire
18WP3149478 Whirlpool Microwave Support
21Trim, Lower
22Door, Inner
23Frame, Door
24WP488729 Whirlpool Refrigerator Door Screw
25Latch Assembly
26Spring, Torsion (2)
27(Alt.)
28303776 Whirlpool Dishwasher Screw
29Screw (2)
31End Cap
32Frame, Control Module
33Module, Control
34WPW10068250 Whirlpool Dishwasher Screw
35Handle, Door
36Screw, 8-22 (5)
37Button, Door Handle
38Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
39Screw
