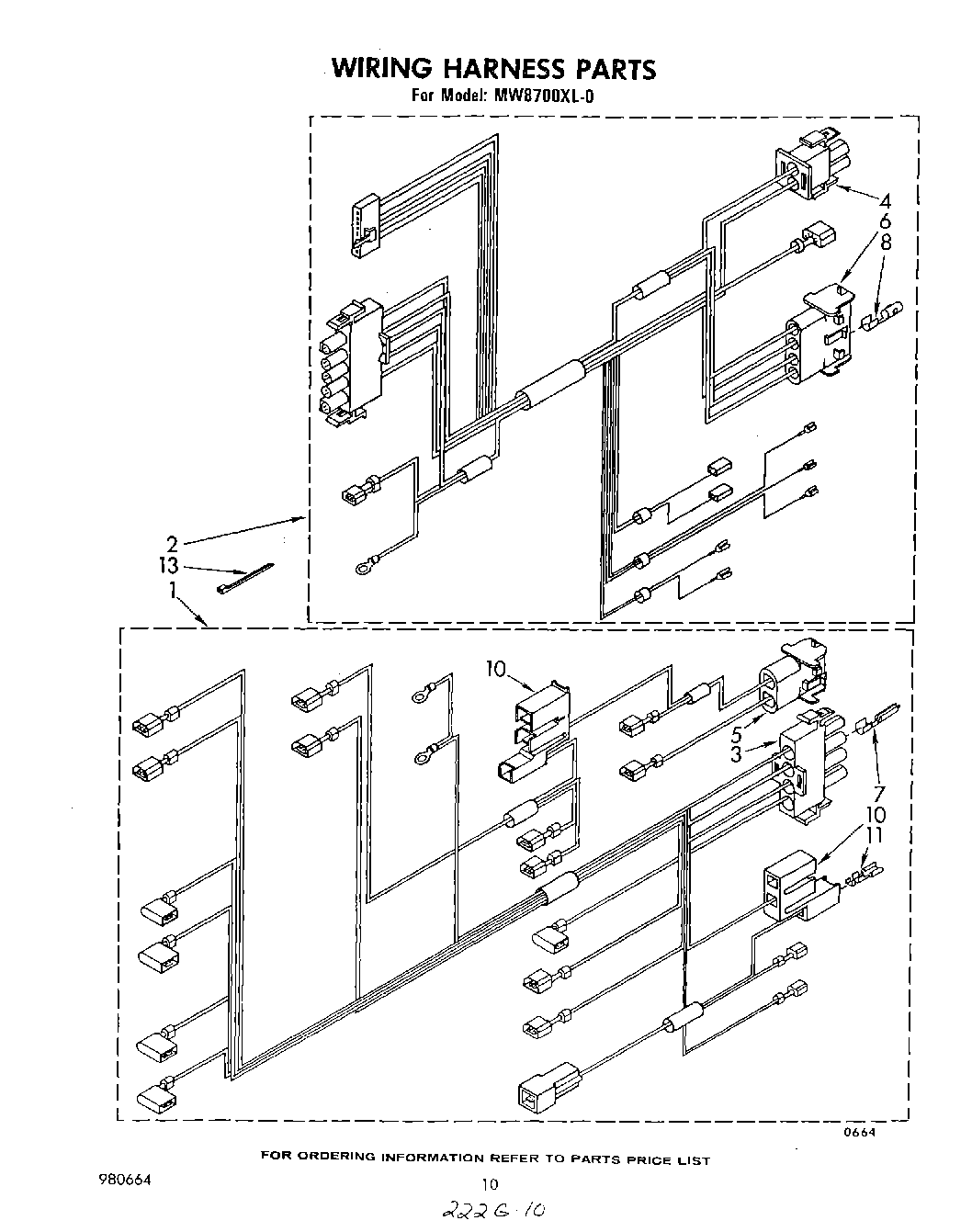

MW8700XL0 06 – WIRING HARNESS , LIT/OPTIONAL

MW8700XL0 06 – WIRING HARNESS , LIT/OPTIONAL

Written by

in

MW8700XL0 06 – WIRING HARNESS , LIT/OPTIONAL

Products

PositionProduct
1Harness, Wiring Main
2Harness, Wiring Control
3Disconnect Block (4 Terminal)
4plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
5cap, terminal (uses 310222 or 310223 pin terminal)
6Disconnect Block, Female
7Harness, Wiring (Connector (11))
8Harness, Wiring (Connector (6))
10Housing, Plug
11WP248562 Whirlpool Terminal
13Instructions, Installation
13Tech Sheet (Service Information)
13Guide, Use & Care
13RCK807 27“ Built-In Kit
13WPL 310848
13RCK811 30“ Wall Mount Grille Kit
13WPL 832769
13Storage Cabinet
13RCK805 25-3/4“ Built-In Kit
13RCK803 30“ Built-In Kit
13List, Repair Parts
131
13Wire (14 Ga. 150 c Brown)
13Wire (14 Ga. 150 c Blue)
13WP261869 Whirlpool Microwave Paint
13242831 Whirlpool Oven Wire
13WP482338 Whirlpool Refrigerator Adhesive
13WPW10339879 Whirlpool Wire Tie
13Wire, 25“ Roll (White 14 GA.)
13Wire, 25` Roll (Red 14 Ga.)
13Wire (14 Ga. 150 c Green)
13Wire (14 Ga. 150 c Orange)
13Spacer-Oven Door Glass (Lt. or Rt.)
13WPL 832763
13261900 Whirlpool Microwave Spray
13WPL 591014
13Wire (14 Ga. 200 c Brown)
1318 Ga. 80~c Rating (Red)
13Wire (12 Ga. 150 c Black)
13Wire (14 Ga. 150 c Yellow)
13Wire, 25` Roll (Black 14 Ga.)
