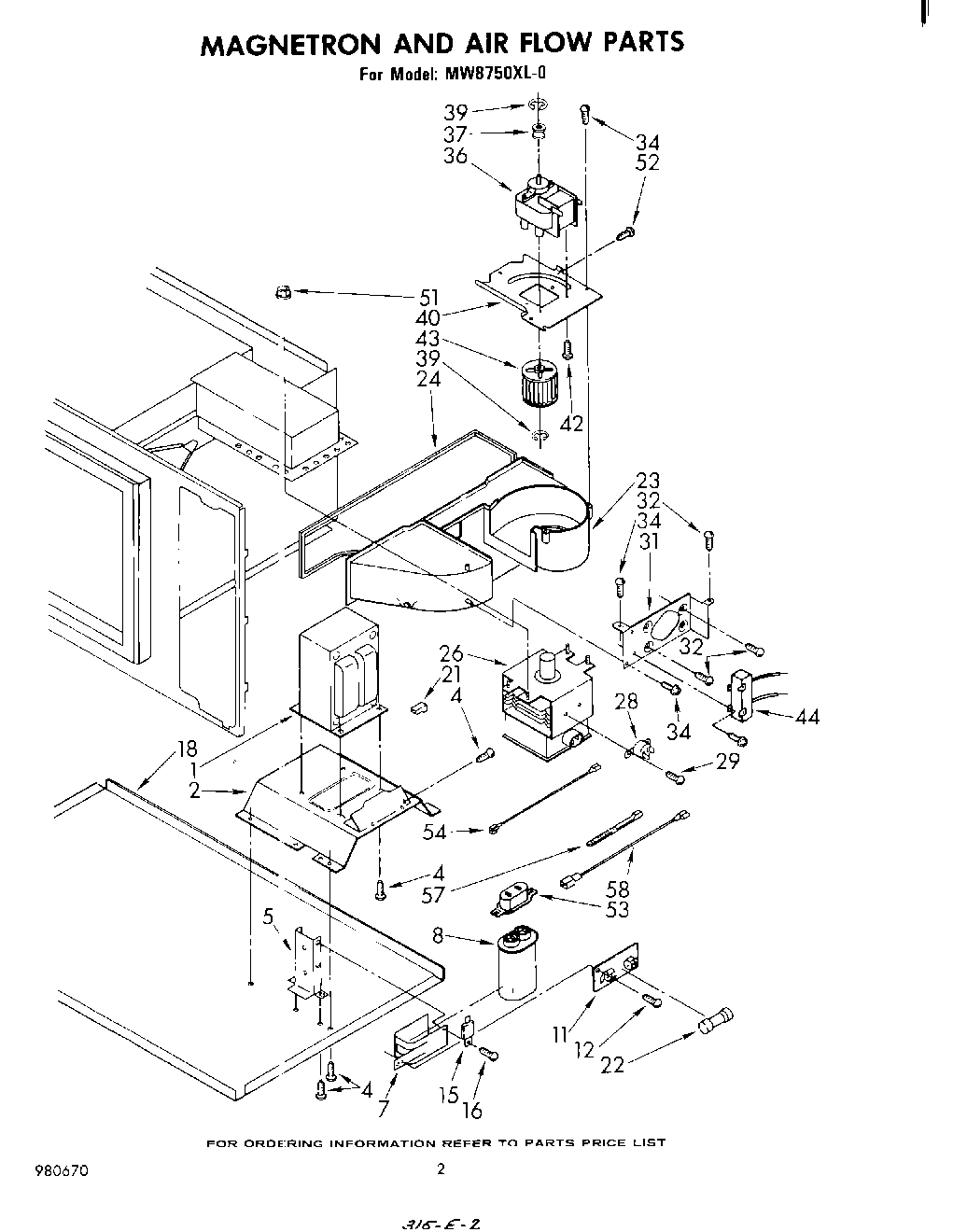

MW8750XL0 02 – MAGNETRON AND AIR FLOWadmin2025-04-26T12:48:34+00:00MW8750XL0 02 – MAGNETRON AND AIR FLOW
Products
| Position | Product |
|---|
| 1 | Transformer |
| 2 | Bracket, Transformer |
| 4 | Screw, 10-32 x 1/2 (4) |
| 5 | Bracket, Capacitor |
| 7 | Strap, Capacitor |
| 8 | Capacitor (Alternate) |
| 8 | Capacitor (Alternate) |
| 11 | Screw (2) |
| 12 | WP489069 Whirlpool Compactor Screw |
| 15 | Rectifier, High Voltage |
| 16 | WP489128 Whirlpool Refrigerator Screw |
| 18 | Base, Chassis (Not Serviceable) |
| 21 | Housing, Receptical |
| 22 | WPW10017410 Whirlpool Fuse |
| 23 | Air Duct (Horizontal) |
| 24 | SEAL |
| 26 | Magnetron (Alt.) |
| 26 | Magnetron (Alt.) |
| 26 | Magnetron (Alt.) |
| 28 | Thermostat |
| 29 | Screw |
| 31 | Mounting Brace, Duct |
| 32 | WP90767 Whirlpool Screw |
| 34 | Screw, 11-16 x 1/2 Double Load Space Thread (5) |
| 36 | Motor (Alt.) |
| 36 | Motor (Alt.) |
| 37 | Pulley, Motor |
| 39 | ``E`` Ring |
| 40 | Bracket, Motor |
| 42 | WP486579 Whirlpool Air Conditioner Screw |
| 43 | Wheel, Blower |
| 44 | Reed Relay (Alternate) |
| 44 | Reed Relay (Alternate) |
| 51 | Flange Nut (4) |
| 52 | WPL 310629 |
| 53 | Cover, Capacitor |
| 54 | Jumper, High Voltage Red 6-3/4`` (2) |
| 57 | WPW10339879 Whirlpool Wire Tie |
| 58 | High Voltage Lead, Gray 6-3/4`` (2) |
