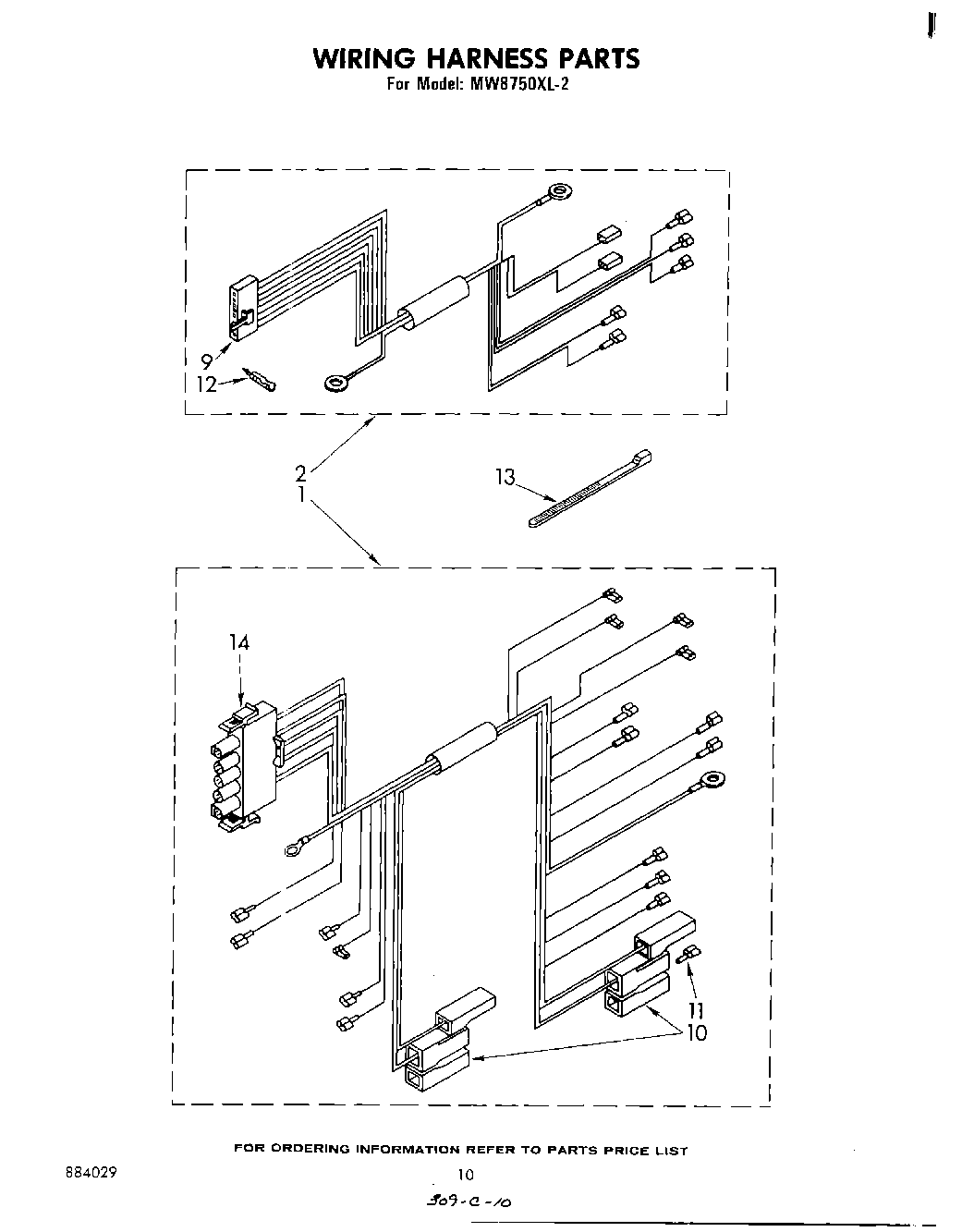

MW8750XL2 06 – WIRING HARNESS, LITERATURE AND OPTIONAL

Products

PositionProduct
1xHarness, Wiring Main
2Harness, Wiring Control
9Connector Housing
10Housing, Plug
11WP248562 Whirlpool Terminal
12Harness, Wiring (Connector (10))
13WPW10339879 Whirlpool Wire Tie
14Cord Brown
14WPL 832769
14WPL 311574
14Cookbook
14Instructions, Installation
14RCK803 30“ Built-In Kit
14RCK805 25-3/4“ Built-In Kit
14Storage Cabinet
14RCK811 30“ Wall Mount Grille Kit
14RCK807 27“ Built-In Kit
14Tech Sheet
14Guide, Use & Care
14Wire, 25` Roll (Black 14 Ga.)
14WPL 832763
14Wire, 25` Roll (Red 14 Ga.)
14Wire, 25“ Roll (White 14 GA.)
14WP482338 Whirlpool Refrigerator Adhesive
14242831 Whirlpool Oven Wire
14WP261869 Whirlpool Microwave Paint
14Wire (14 Ga. 150 c Blue)
14Wire (14 Ga. 150 c Brown)
14Wire (14 Ga. 150 c Green)
14Wire (14 Ga. 150 c Orange)
14Wire (14 Ga. 150 c Yellow)
14Wire (12 Ga. 150 c Black)
1418 Ga. 80~c Rating (Red)
14Wire (14 Ga. 200 c Brown)
141
14WPL 591014
14261900 Whirlpool Microwave Spray
14Paint, Cord Brown Spray (13 Oz.)
14List, Repair Parts
