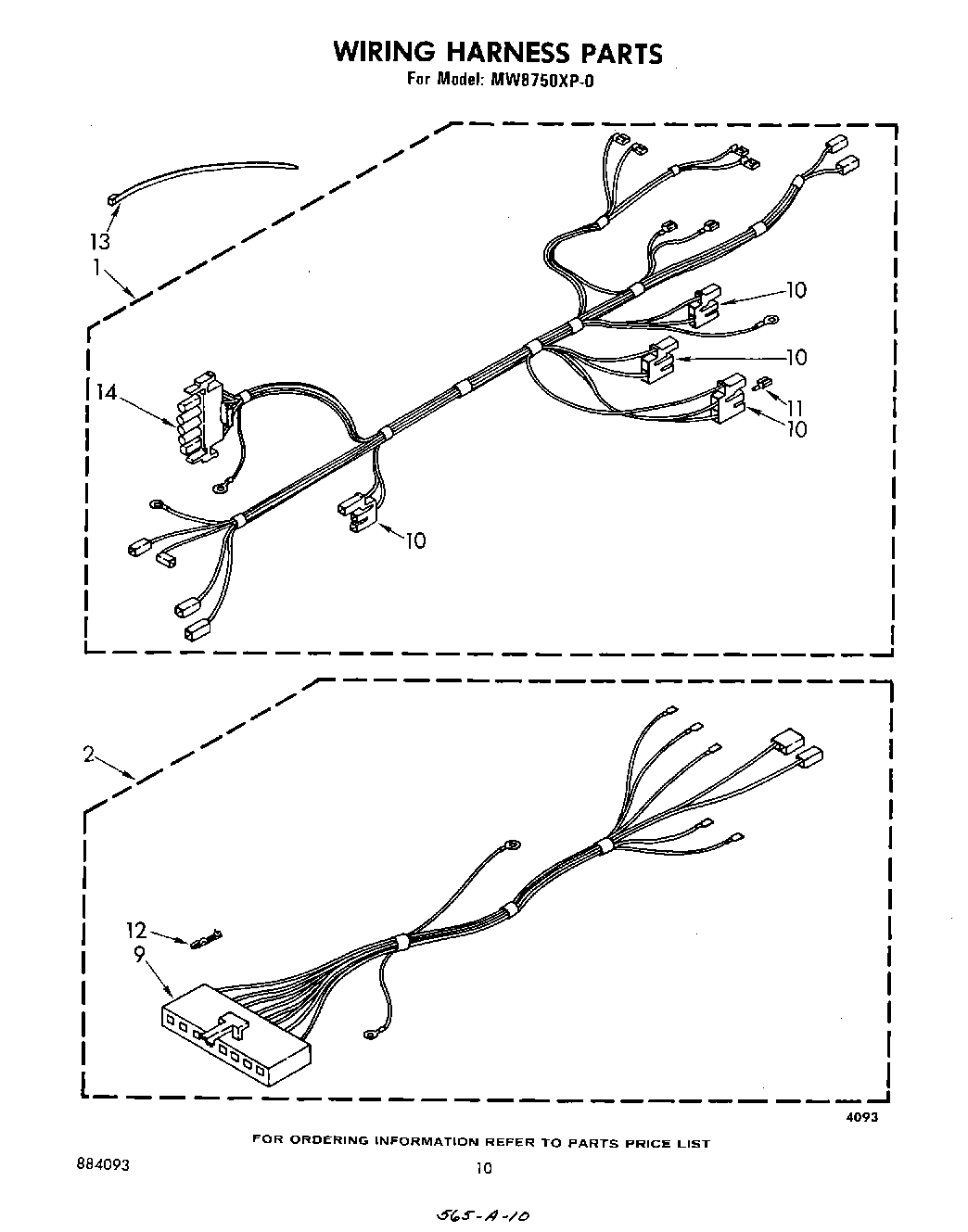

MW8750XP0 06 – WIRING HARNESS , LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Tech Sheet
	Guide, Use & Care
	Cook
1	Harness, Wiring Main
2	Harness, Wiring Control
9	Connector Housing
10	Housing, Plug
11	WP248562 Whirlpool Terminal
12	Harness, Wiring (Connector (10))
13	WPW10339879 Whirlpool Wire Tie
14	RCK805 25-3/4`` Built-In Kit
14	WPL 311574
14	Cord Brown
14	RCK807 27`` Built-In Kit
14	WPL 832769
14	RCK811 30`` Wall Mount Grille Kit
14	Storage Cabinet
14	RCK803 30`` Built-In Kit
14	WPL 832763
14	Paint, Cord Brown Spray (13 Oz.)
14	Wire, 25` Roll (Red 14 Ga.)
14	Wire, 25`` Roll (White 14 GA.)
14	WP482338 Whirlpool Refrigerator Adhesive
14	242831 Whirlpool Oven Wire
14	WP261869 Whirlpool Microwave Paint
14	Wire (14 Ga. 150 c Blue)
14	Wire (14 Ga. 150 c Brown)
14	Wire (14 Ga. 150 c Green)
14	Wire (14 Ga. 150 c Orange)
14	Wire (14 Ga. 150 c Yellow)
14	Wire (12 Ga. 150 c Black)
14	18 Ga. 80~c Rating (Red)
14	Wire (14 Ga. 200 c Brown)
14	1
14	WPL 591014
14	261900 Whirlpool Microwave Spray
14	Wire, 25` Roll (Black 14 Ga.)
