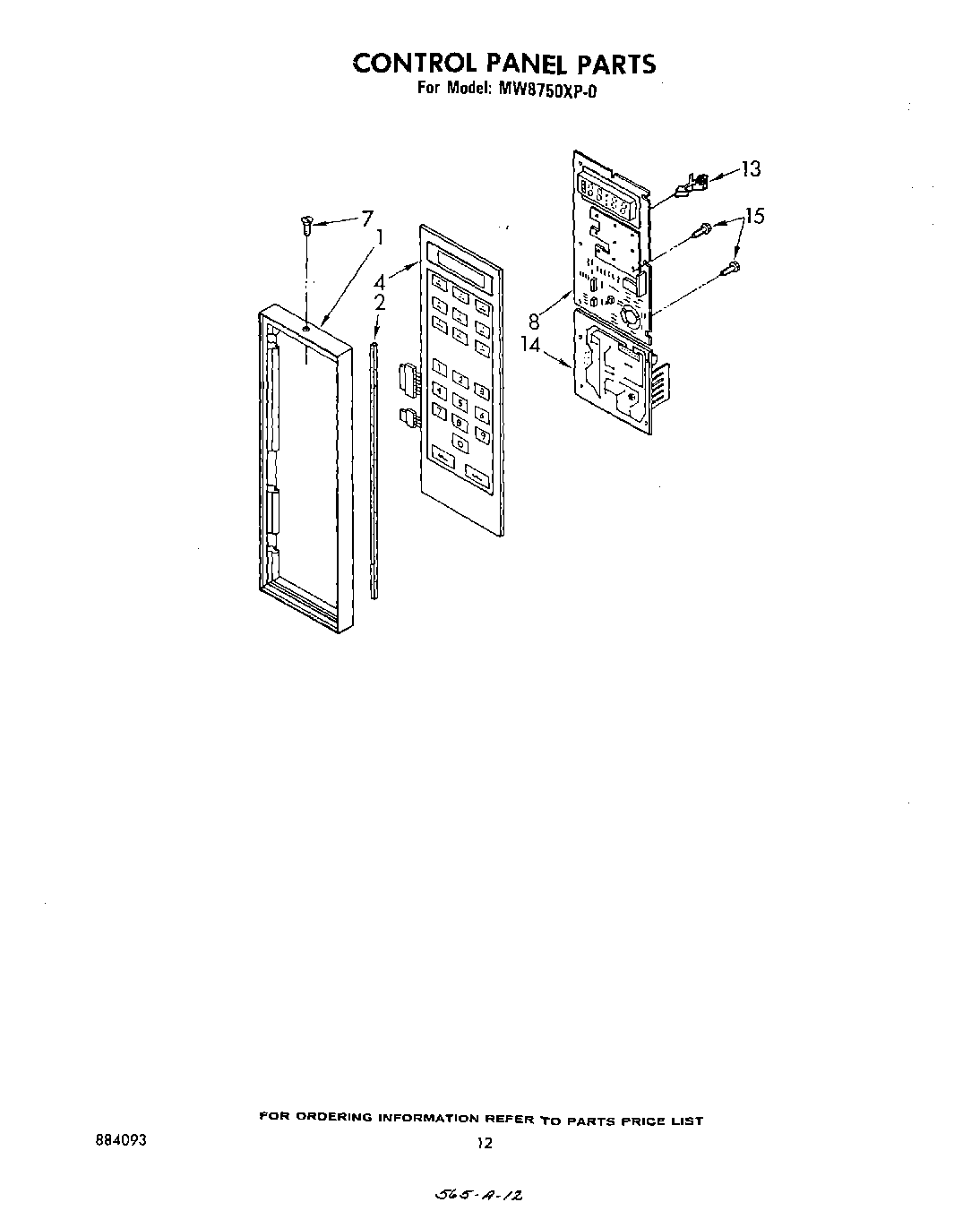

MW8750XP0 07 – CONTROL PANEL
Products
| Position | Product |
|---|---|
| 1 | Frame, Control Panel |
| 2 | Seal, Foam (2) |
| 4 | Touch Panel, Glass |
| 7 | Screw, 8-18BT x .88 (2) |
| 8 | Microcomputer |
| 13 | clip, clock to socket (2) |
| 14 | Power Supply |
| 15 | Screw |
