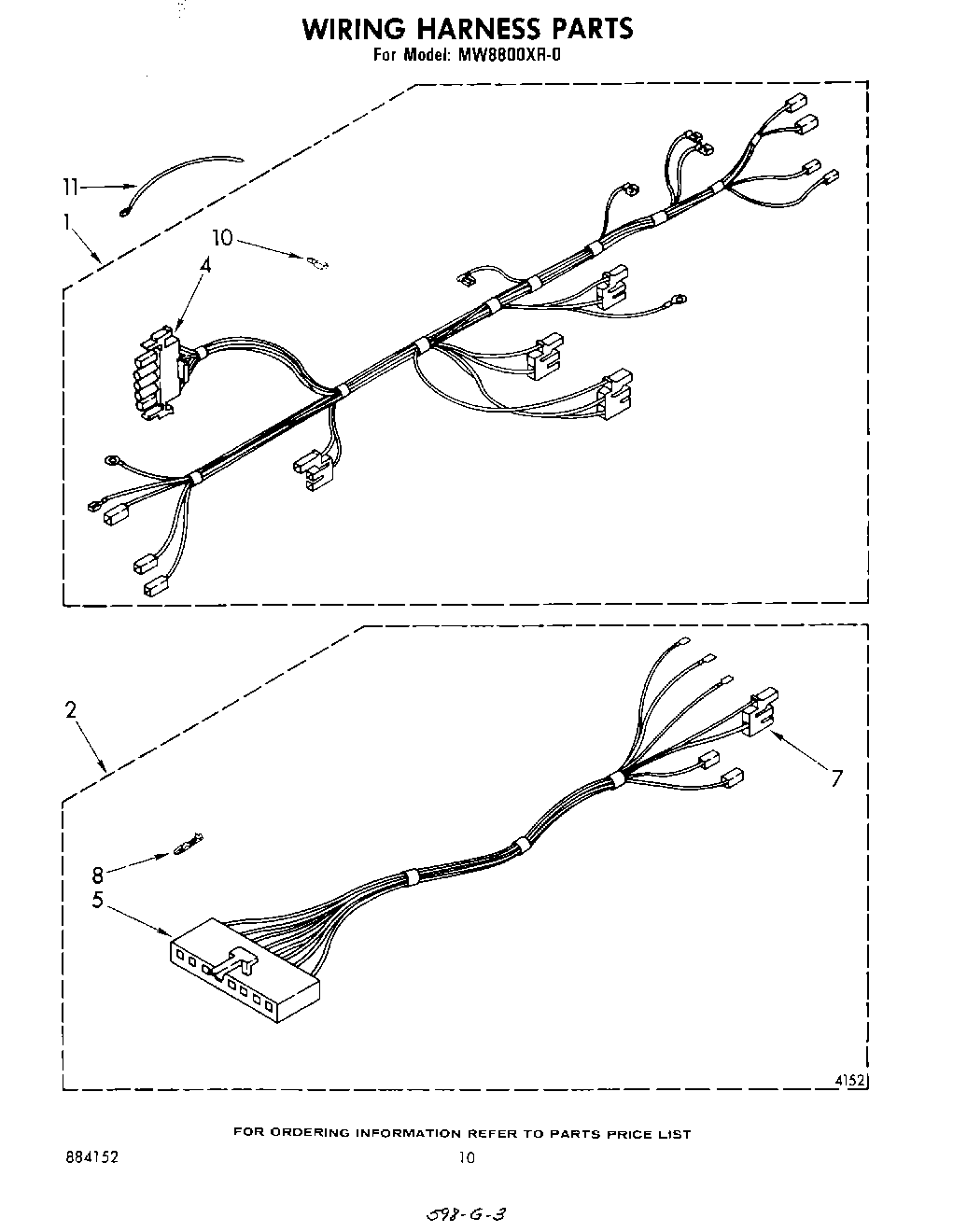

MW8800XR0 06 – WIRING HARNESS , LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Cook
	Tech Sheet
	Guide, Use & Care
1	Harness, Wiring Main
2	Harness, Wiring Control
4	WPL 311574
5	Connector Housing
7	Housing, Plug
8	Harness, Wiring (Connector (10))
10	WP248562 Whirlpool Terminal
11	Built-in Kits (30“)
11	Cord Brown
11	24“ Built-In Kit
11	27“built-in Kit
11	Wall Mount Kit
11	Paint, Cord Brown Spray (13 Oz.)
11	261900 Whirlpool Microwave Spray
11	WPL 832985
11	Wire, 25` Roll (Red 14 Ga.)
11	Wire, 25“ Roll (White 14 GA.)
11	WPW10339879 Whirlpool Wire Tie
11	WP482338 Whirlpool Refrigerator Adhesive
11	242831 Whirlpool Oven Wire
11	WP261869 Whirlpool Microwave Paint
11	Wire (14 Ga. 150 c Blue)
11	Wire (14 Ga. 150 c Brown)
11	Wire (14 Ga. 150 c Green)
11	Wire (14 Ga. 150 c Orange)
11	Wire (14 Ga. 150 c Yellow)
11	Wire (12 Ga. 150 c Black)
11	18 Ga. 80~c Rating (Red)
11	Wire (14 Ga. 200 c Brown)
11	1
11	WPL 591014
11	Wire, 25` Roll (Black 14 Ga.)
