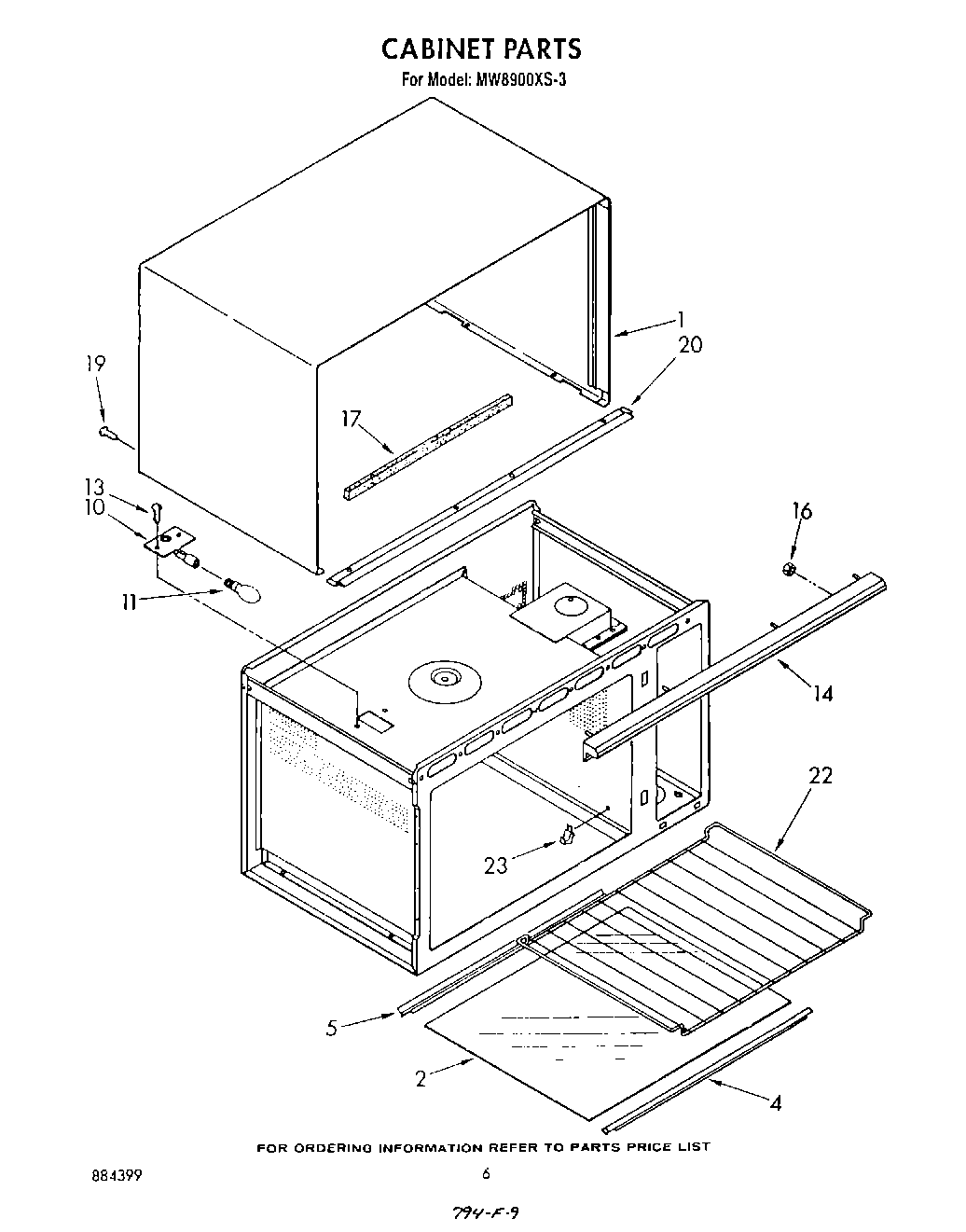

| 1 | Wrapper, Cabinet |
| 2 | Shelf, Microwave (Install with Silastic 482338) |
| 4 | Trim, Shelf (Front) |
| 5 | Trim, Shelf (Rear) |
| 10 | Snap-In Socket |
| 11 | WP3395618 Whirlpool Light Bulb |
| 13 | screw |
| 14 | Grille, Air |
| 16 | Nut (3) |
| 17 | Seal, Foam |
| 19 | WP488729 Whirlpool Refrigerator Door Screw |
| 20 | Trim, Lower |
| 22 | rack, wire |
| 23 | WP3149478 Whirlpool Microwave Support |
