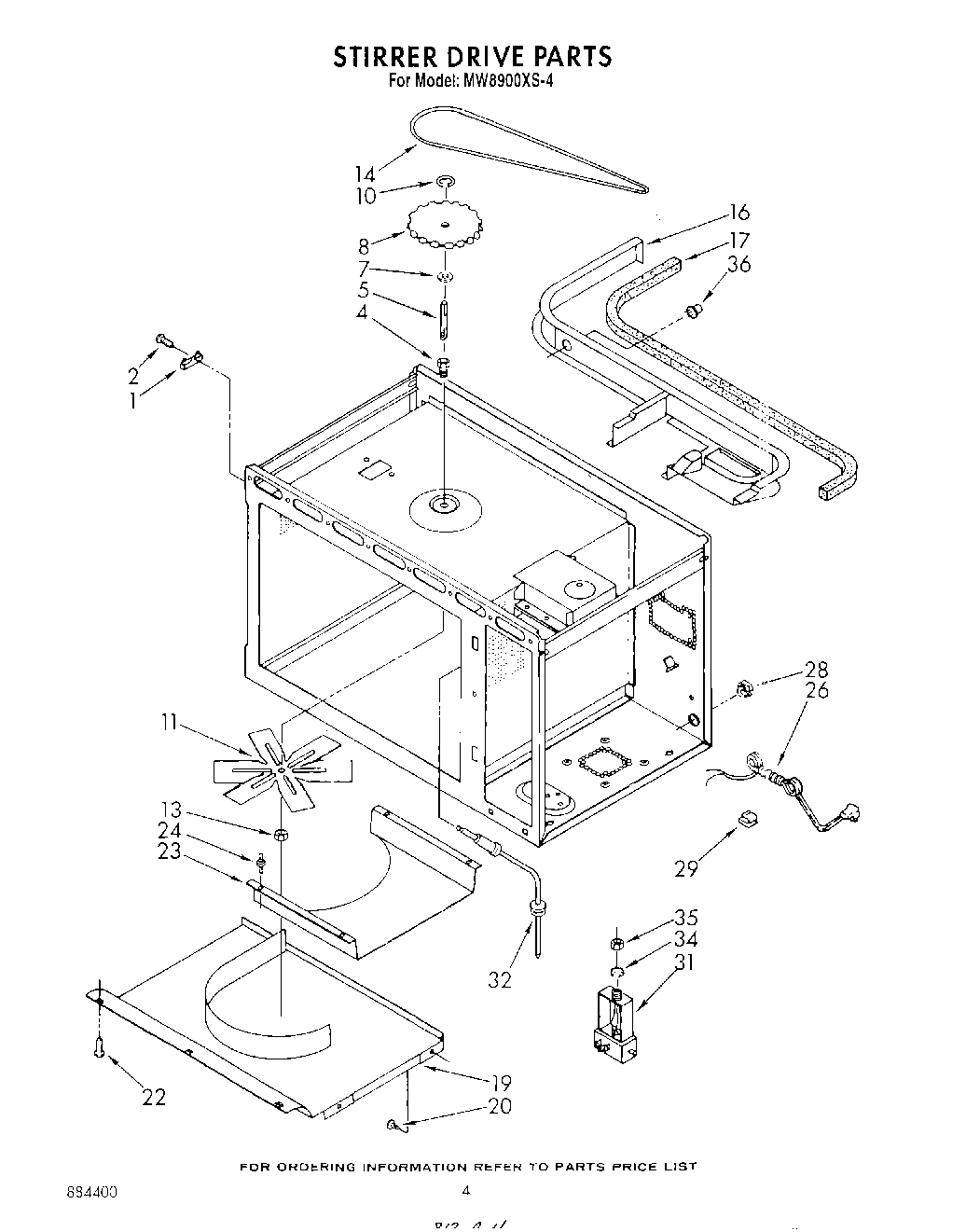

MW8900XS4 03 – STIRRER DRIVE , LITERATURE AND OPTI

Products

Position	Product
	WPL LIT314880
	WPL 591014
	WPL 832985
	261900 Whirlpool Microwave Spray
	Paint, Cord Brown Spray (13 Oz.)
	27“built-in Kit
	Cord Brown
	WPL LIT311894
	WPL LIT884400
	Built-in Kits (30“)
	24“ Built-In Kit
	Wall Mount Kit
	Tech Sheet
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	WP482338 Whirlpool Refrigerator Adhesive
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Brown)
1	Fuse, Thermal
2	screw
4	Bushing, Stirrer
5	Shaft, Stirrer
7	Washer, Nylon
8	Pulley, Stirrer Blade
10	“E“ Ring
11	Stirrer Blade
13	WP487939 Whirlpool Refrigerator Nut
14	WP313646 Whirlpool Microwave Drive Belt
16	Baffle, Air
17	Seal, Foam
19	Silicone Rubber Gasket
20	Fastener (4)
22	screw, 8-32 x 1/2 (3)
23	Plate, Tuning
24	Support (4)
26	Power, Cord (Alt.)
26	Power, Cord (Alt.)
26	Power, Cord
28	Strain Relief, Bushing
29	Clip
31	Probe Jack
32	(Alt.)
32	(Alt.)
34	Washer, Internal Lock
35	Nut
36	Sensor, Gas
