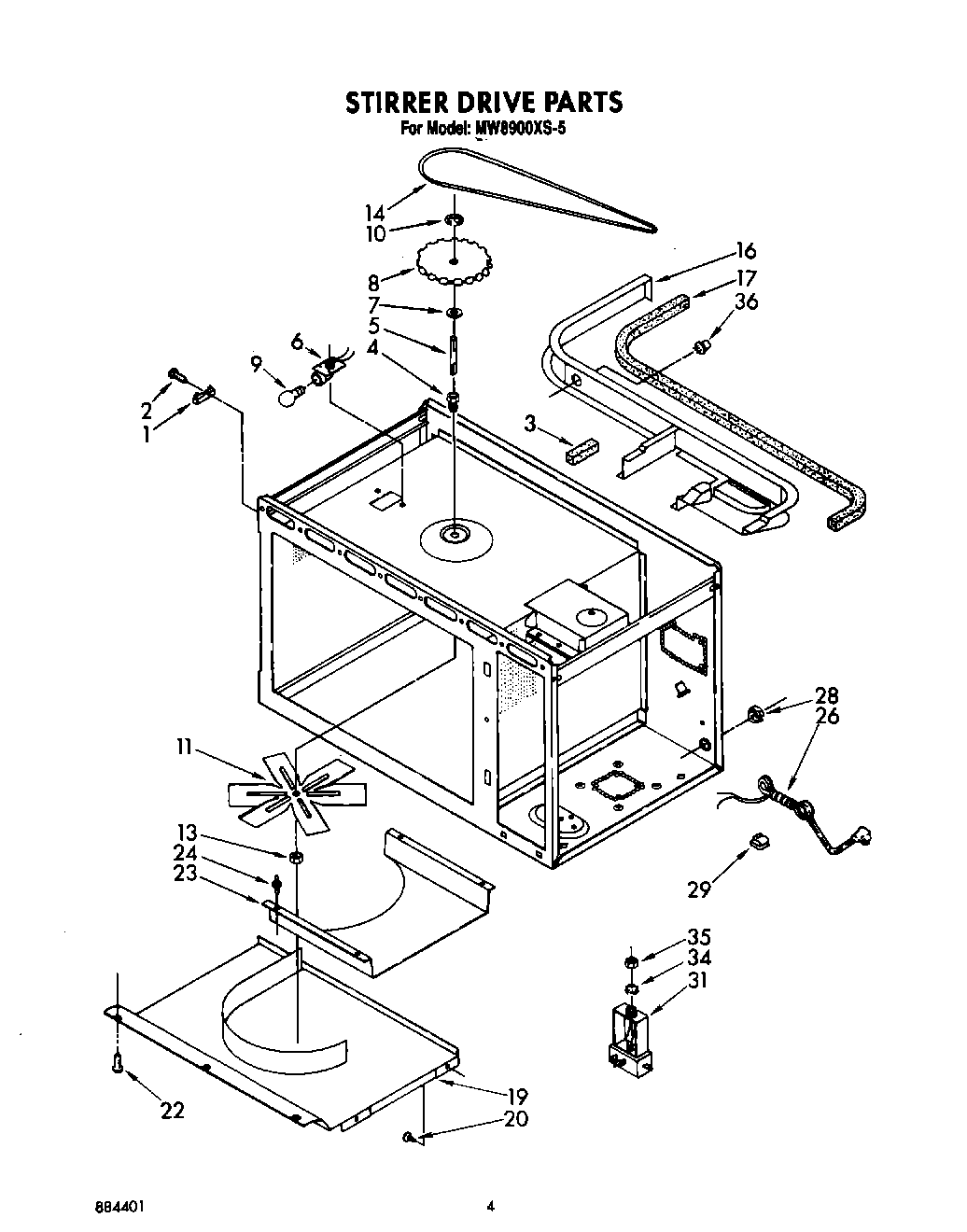

MW8900XS5 03 – STIRRER DRIVE , LIT/OPTIONAL

Products

Position	Product
	Guide, Use & Care
	WPL 591014
	WPL 832985
	261900 Whirlpool Microwave Spray
	Paint, Cord Brown Spray (13 Oz.)
	24“ Built-In Kit
	Cord Brown
	WPL LIT311894
	List, Repair Parts
	Built-in Kits (30“)
	Tech Sheet
	27“built-in Kit
	Wall Mount Kit
	1
	Wire (14 Ga. 200 c Brown)
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire, 25“ Roll (White 14 GA.)
	WP482338 Whirlpool Refrigerator Adhesive
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
1	Fuse, Thermal
2	screw
3	Seal, Foam
4	Bushing, Stirrer
5	Shaft, Stirrer
6	Snap-In Socket
7	Washer, Nylon
8	Pulley, Stirrer Blade
9	WP3395618 Whirlpool Light Bulb
10	“E“ Ring
11	Stirrer Blade
13	WP487939 Whirlpool Refrigerator Nut
14	WP313646 Whirlpool Microwave Drive Belt
16	Baffle, Air
17	Seal, Foam
19	Silicone Rubber Gasket
20	Fastener (4)
22	screw, 8-32 x 1/2 (3)
23	Plate, Tuning
24	Support (4)
26	Power, Cord (Alt.)
26	Power, Cord (Alt.)
26	Power, Cord
28	Strain Relief, Bushing
29	Clip
31	Probe Jack
34	Washer, Internal Lock
35	Nut
36	Sensor, Gas
