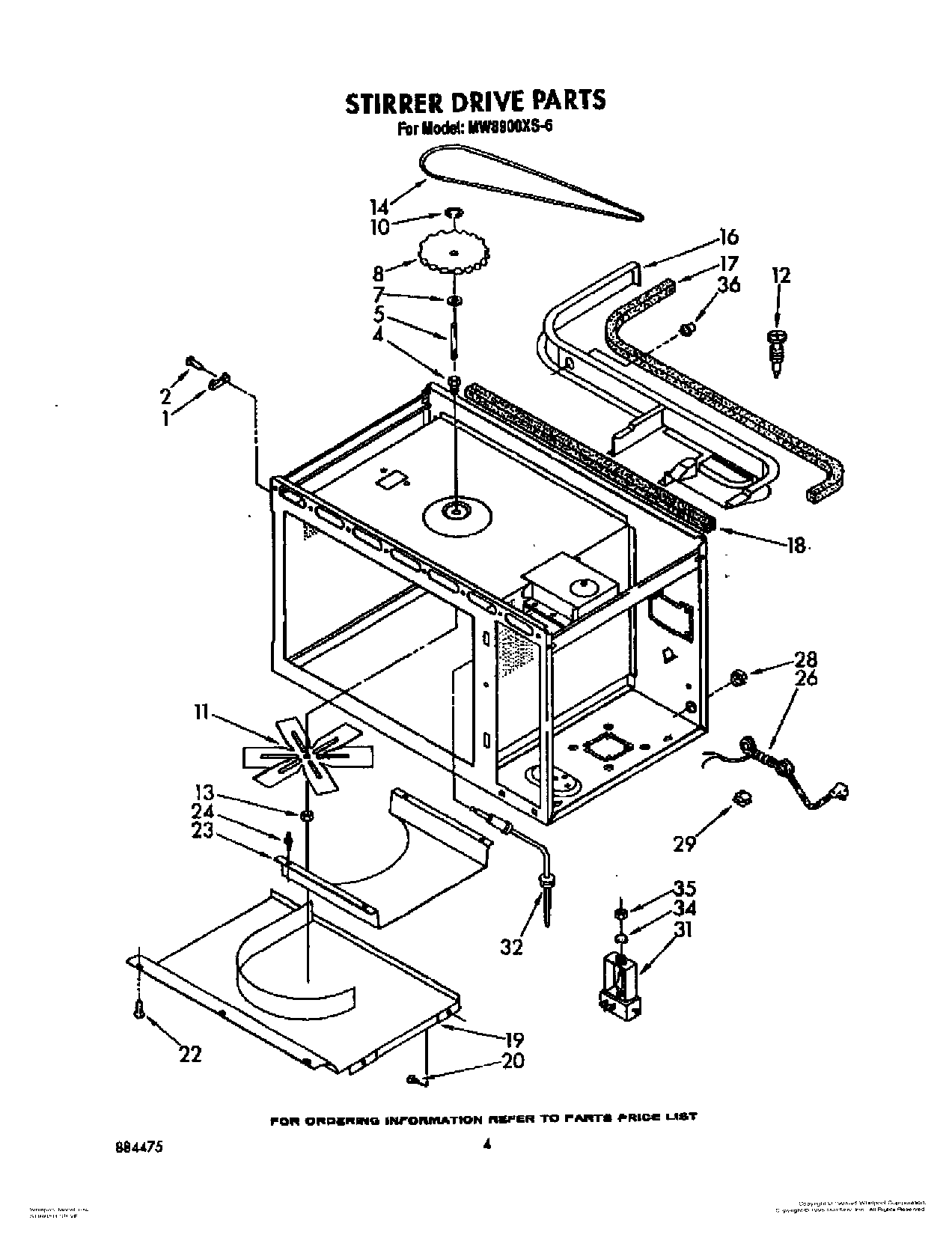

MW8900XS6 03 – STIRRER DRIVE, OPTIONAL

Products

Position	Product
1	Fuse, Thermal
2	screw
4	Bushing, Stirrer
5	Shaft, Stirrer
7	Washer, Nylon
8	Pulley, Stirrer Blade
10	“E“ Ring
11	Stirrer Blade
12	Fastener (2)
13	WP487939 Whirlpool Refrigerator Nut
14	WP313646 Whirlpool Microwave Drive Belt
16	Baffle, Air
17	Seal, Foam
18	Seal, Foam
19	Silicone Rubber Gasket
20	Fastener (4)
22	screw, 8-32 x 1/2 (3)
23	Plate, Tuning
24	Support (4)
26	Power, Cord (Alt.)
26	Power, Cord
26	Power, Cord (Alt.)
28	Strain Relief, Bushing
29	Clip
31	Probe Jack
32	(Alt.)
32	(Alt.)
34	Washer, Internal Lock
35	Nut
36	Wire (14 Ga. 150 c Brown)
36	Wire (14 Ga. 150 c Blue)
36	WP482338 Whirlpool Refrigerator Adhesive
36	Wire, 25“ Roll (White 14 GA.)
36	Paint, Cord Brown Spray (13 Oz.)
36	WP261869 Whirlpool Microwave Paint
36	Wire, 25` Roll (Red 14 Ga.)
36	24“ Built-In Kit
36	27“built-in Kit
36	Wall Mount Kit
36	Wire, 25` Roll (Black 14 Ga.)
36	Cord Brown
36	Wire (14 Ga. 150 c Green)
36	261900 Whirlpool Microwave Spray
36	WPL 832985
36	WPL 591014
36	1
36	Wire (14 Ga. 200 c Brown)
36	18 Ga. 80~c Rating (Red)
36	Wire (12 Ga. 150 c Black)
36	Sensor, Gas
36	Wire (14 Ga. 150 c Yellow)
36	Wire (14 Ga. 150 c Orange)
36	Built-in Kits (30“)
