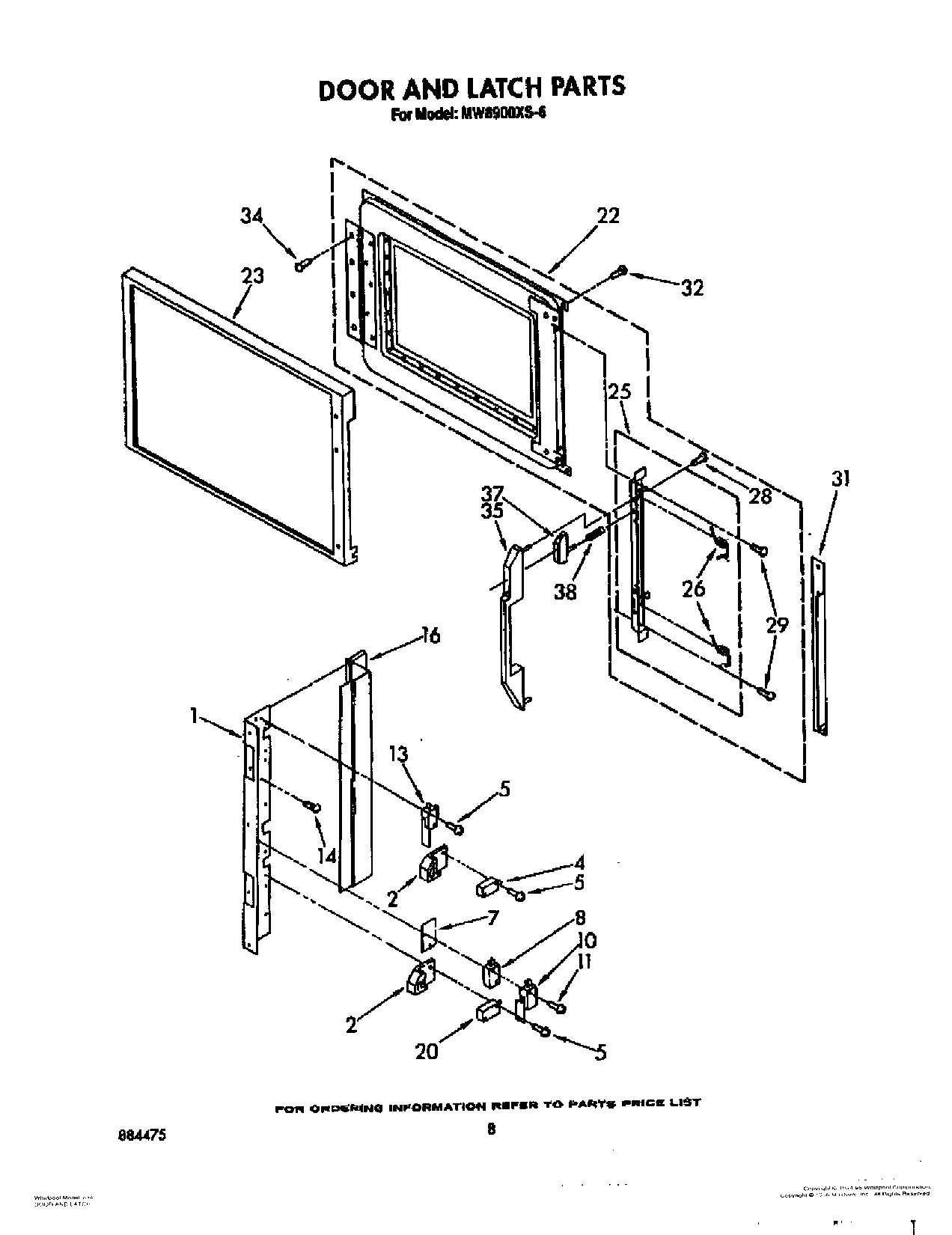

MW8900XS6 06 – DOOR AND LATCHadmin2025-04-26T12:47:52+00:00MW8900XS6 06 – DOOR AND LATCH
Products
| Position | Product |
|---|
| 1 | Bracket, Catch |
| 2 | Catch (2) |
| 5 | WPL 312717 |
| 7 | Insulator |
| 8 | Switch (Alt.) |
| 8 | Switch |
| 8 | Spring |
| 10 | Switch, Light Monitor (Alt.) |
| 10 | Switch, Light/ Monitor |
| 10 | Switch, Light Monitor (Alt.) |
| 11 | Screw, 4-40 x 10 (2) |
| 13 | Switch, Miniature |
| 14 | WPL 309080 |
| 16 | Shield |
| 20 | 814037 Whirlpool Microwave Switch |
| 22 | Door, Inner |
| 23 | Frame, Door |
| 25 | Latch Assembly |
| 26 | Spring, Torsion (2) |
| 28 | 303776 Whirlpool Dishwasher Screw |
| 29 | Screw (2) |
| 31 | End Cap |
| 32 | Screw, 8-22 (5) |
| 34 | WPW10068250 Whirlpool Dishwasher Screw |
| 35 | Handle, Door |
| 37 | Button, Door Handle |
| 38 | Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65) |
