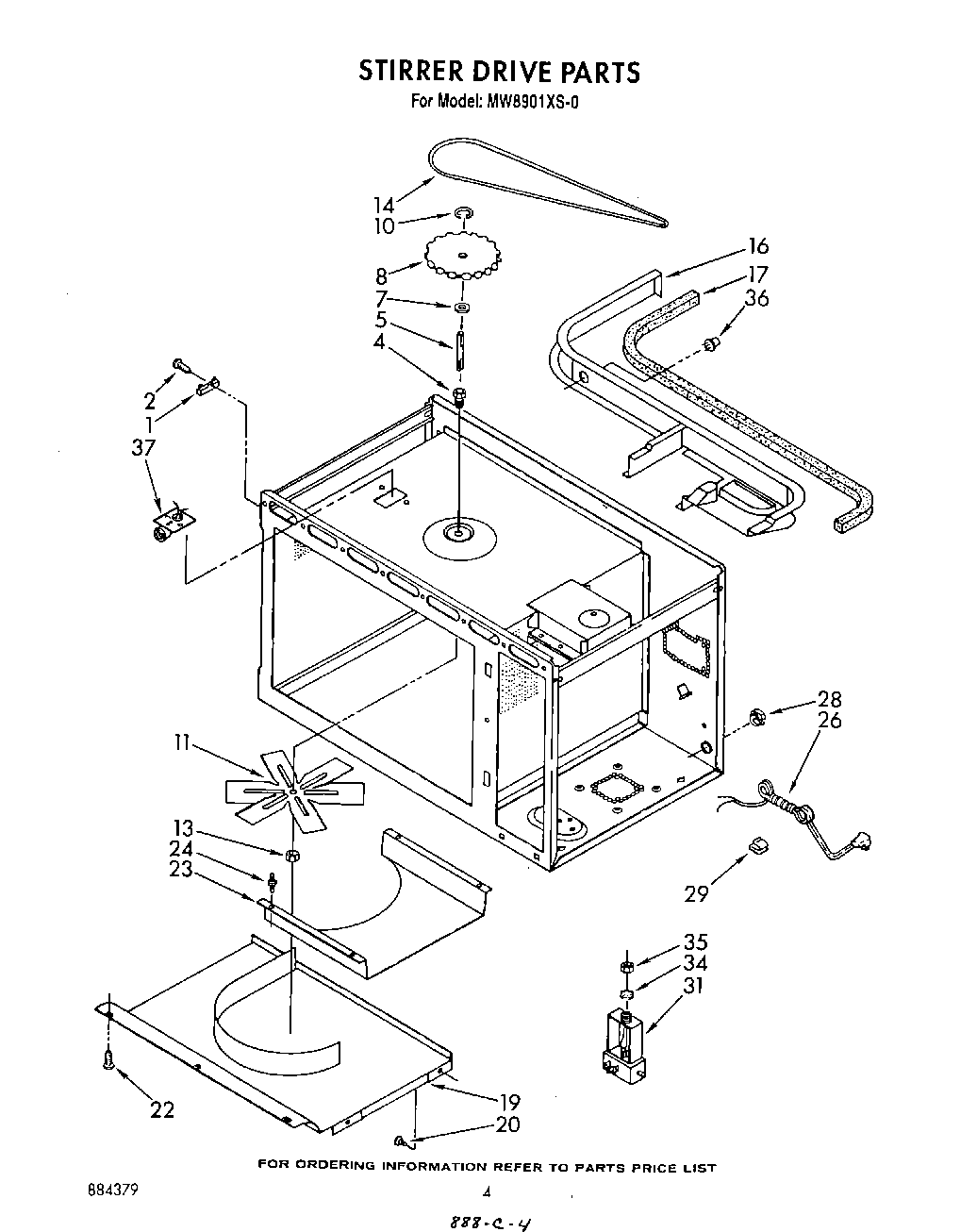

MW8901XS0 03 – STIRRER DRIVE , LIT/OPTIONAL AND LI

Products

Position	Product
	List, Repair Parts
	Guide, Use & Care
	WPL LIT311894
	Tech Sheet
1	Thermal Fuse
4	Bushing, Stirrer
5	Shaft, Stirrer
7	Washer, Nylon
8	Pulley, Stirrer Blade
10	“E“ Ring
11	Stirrer Blade
13	WP487939 Whirlpool Refrigerator Nut
14	WP313646 Whirlpool Microwave Drive Belt
16	Fastner
16	Baffle, Air
16	Seal, Foam
16	Fastener (2)
17	Seal, Foam
19	Silicone Rubber Gasket
20	Fastener (4)
22	screw, 8-32 x 1/2 (3)
23	Plate, Tuning
24	Support (4)
26	Power, Cord
28	Strain Relief, Bushing
29	Clip
31	Probe Jack
34	Washer, Internal Lock
35	Nut
36	Grill, Air (Screw (3) (White))
36	Screw
36	Sensor, Gas
37	WP261869 Whirlpool Microwave Paint
37	242831 Whirlpool Oven Wire
37	Wire, 25` Roll (Red 14 Ga.)
37	Built-in Kits (30“)
37	27“built-in Kit
37	Wire, 25“ Roll (White 14 GA.)
37	screw
37	Wall Mount Kit
37	Wire (14 Ga. 150 c Blue)
37	24“ Built-In Kit
37	Wire (14 Ga. 150 c Brown)
37	Wire (14 Ga. 150 c Green)
37	Cord Brown
37	261900 Whirlpool Microwave Spray
37	WPL 832985
37	WPL 591014
37	1
37	Wire (14 Ga. 200 c Brown)
37	18 Ga. 80~c Rating (Red)
37	Wire (12 Ga. 150 c Black)
37	Snap-In Socket
37	Wire (14 Ga. 150 c Yellow)
37	Wire (14 Ga. 150 c Orange)
37	W10841140 Whirlpool Dishwasher Adhesive
37	Paint, Cord Brown Spray (13 Oz.)
37	Wire, 25` Roll (Black 14 Ga.)
