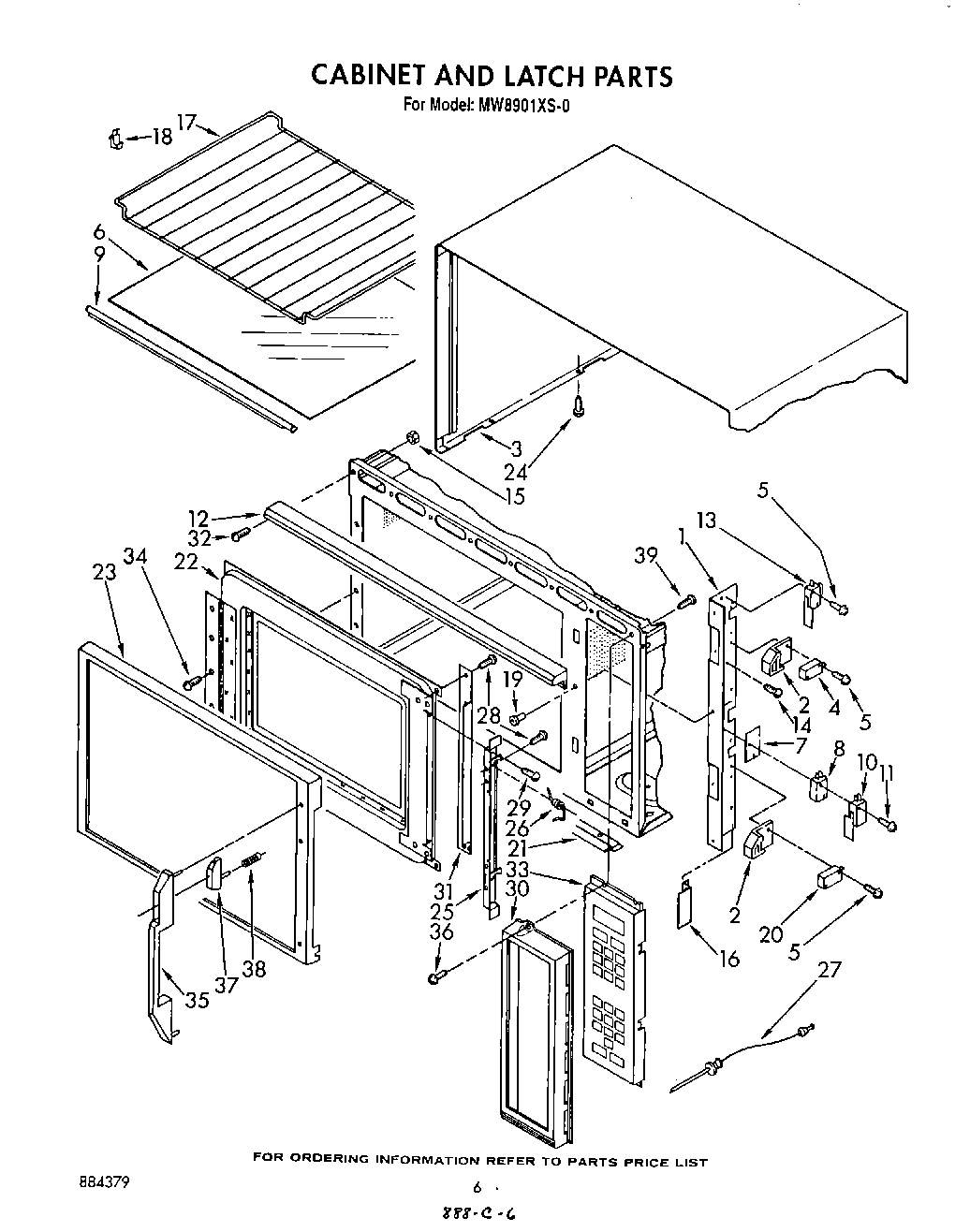

MW8901XS0 04 – CABINET AND LATCHadmin2025-04-26T12:45:49+00:00MW8901XS0 04 – CABINET AND LATCH
Products
| Position | Product |
|---|
| 1 | Bracket, Catch |
| 2 | Catch (2) |
| 3 | Seal, Foam |
| 3 | Wrapper, Cabinet |
| 6 | Shelf, Microwave (Install with Silastic 482338) |
| 7 | Insulator |
| 8 | Switch |
| 9 | Trim, Shelf (Rear) |
| 9 | Trim, Shelf (Front) |
| 10 | Switch, Light/ Monitor |
| 11 | Screw, 4-40 x 10 (2) |
| 12 | Grill, Air (White) |
| 13 | WPL 312717 |
| 13 | Switch, Miniature |
| 14 | WPL 309080 |
| 15 | Nut (3) |
| 16 | Shield |
| 17 | rack, wire |
| 18 | WP3149478 Whirlpool Microwave Support |
| 19 | Rivet, Pop (3) |
| 20 | 814037 Whirlpool Microwave Switch |
| 21 | Trim, Wrapper |
| 22 | Door, Inner |
| 23 | Frame, Door |
| 24 | WP488729 Whirlpool Refrigerator Door Screw |
| 25 | Latch Assembly |
| 26 | Spring, Torsion (2) |
| 27 | (Alt.) |
| 28 | 303776 Whirlpool Dishwasher Screw |
| 29 | Screw (2) |
| 30 | Frame, Control Panel |
| 31 | End Cap (White) |
| 32 | Screw, 8-22 (5) |
| 33 | Control, Module |
| 34 | WPW10068250 Whirlpool Dishwasher Screw |
| 35 | Handle, Door (White) |
| 36 | Screw 8-32 X 1/2 |
| 37 | Button, Door Handle |
| 38 | Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65) |
| 39 | Screw |
