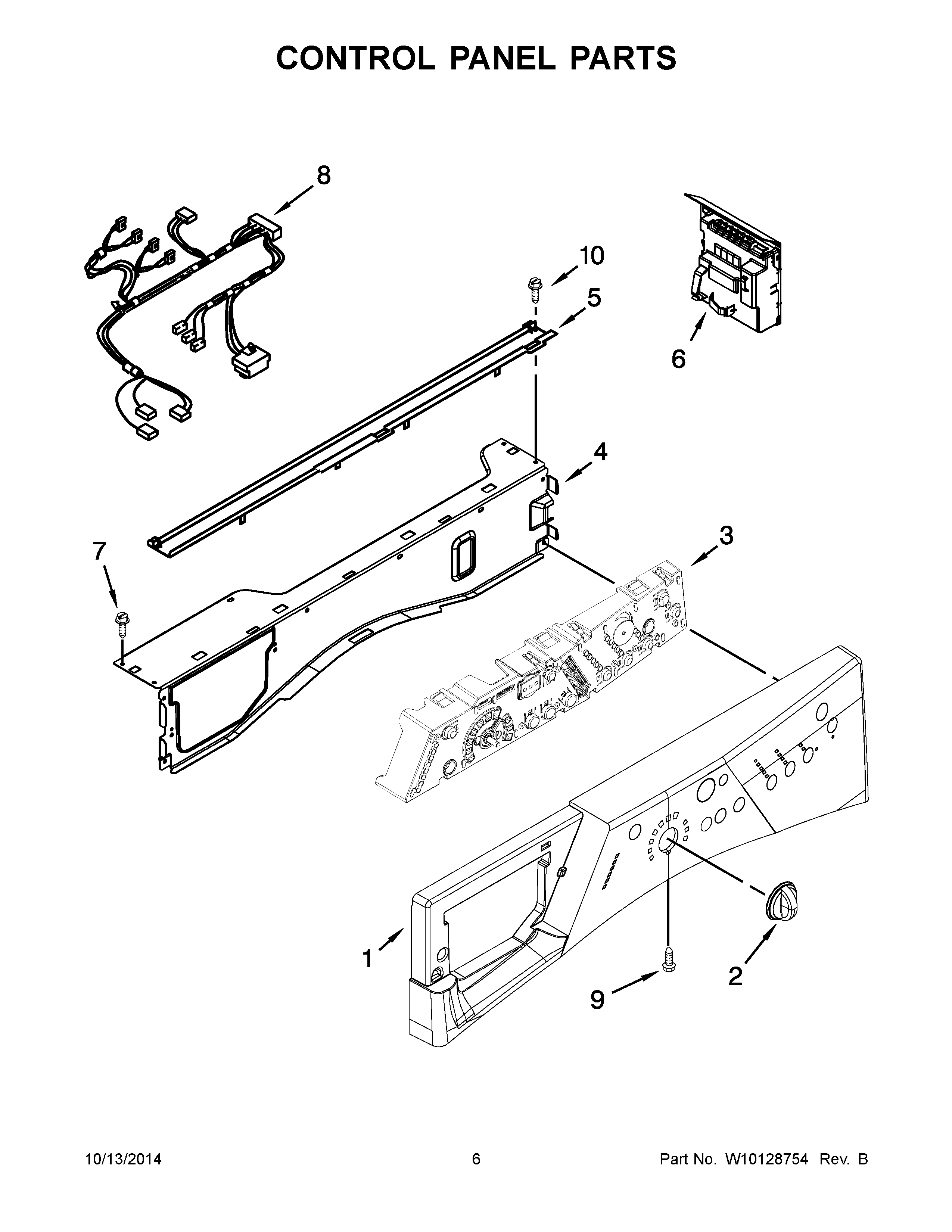

MWFW8300SW01 04 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	PANEL, CONTROL
2	ASSEMBLY, KNOB
3	USER INTERFACE
4	W10846488 Whirlpool Bracket
5	CHANNEL, WATER
6	WPW10525351-includeCORE Whirlpool WPW10525351 Washer Electronic Control Board + Core
7	WP488729 Whirlpool Refrigerator Door Screw
8	WPW10169929 Whirlpool Wire Harness
9	WP8540282 Whirlpool Screw
10	WP489442 Whirlpool Refrigerator Screw
