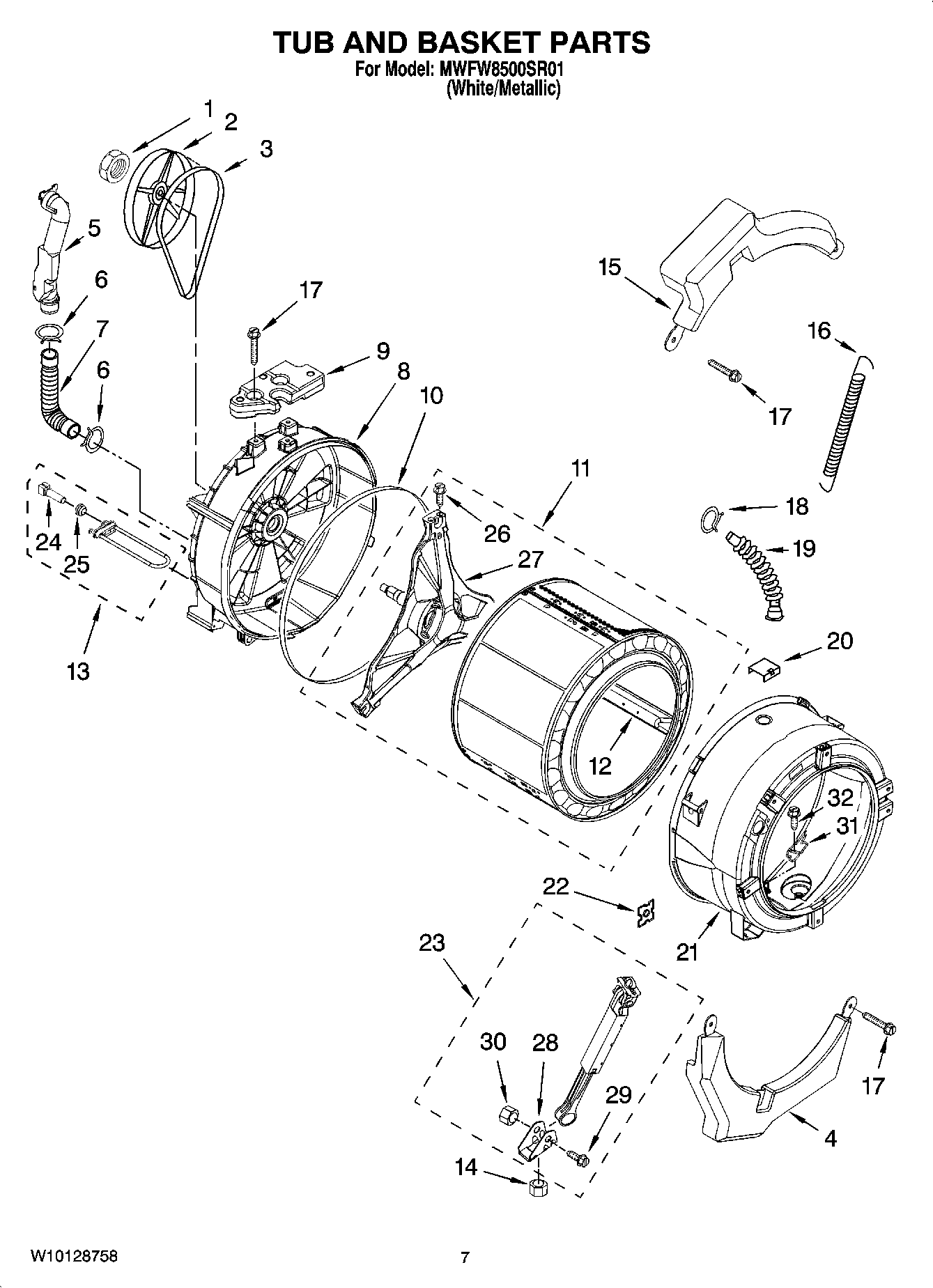

MWFW8500SR01 06 – TUB AND BASKET PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	ACCESSORY PARTS
	285863 Whirlpool Drain Hose Extension 4'
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
1	WPW10283361 Whirlpool Nut
2	WP8540088C Whirlpool Pulley
3	WP8540101 Whirlpool Washer Drive Belt
4	W10200297 Whirlpool Counterweight
5	W10112169 Whirlpool Vent Pipe
6	8540010 Whirlpool Clamp
7	W11398765 Whirlpool Hose
8	280255 Whirlpool Outer Tub
9	Counterweight, Rear
10	WPW10111158 Whirlpool Gasket Assembly
11	WP8540357 Whirlpool Basket Assembly
12	WP8540360 Whirlpool Baffle
13	WPW10426377 Whirlpool Heater Assembly
14	8534084 Whirlpool Nut
15	COUNTERWEIGHT, FRONT UPPER
16	280159 Whirlpool Spring Assembly
17	W11685857 Whirlpool Screw Assembly
18	3363365 Whirlpool Clamp
19	WP8540015 Whirlpool Hose Assembly
20	WP8540092 Whirlpool Clamp
22	WP8182512 Whirlpool Nut Assembly
23	W10739670 Whirlpool Shock Absorber Package
24	WPW10467289 Whirlpool Sensor
25	W11590578 Whirlpool Seal
26	WP8540382 Whirlpool Screw
27	ASSEMBLY, CROSSPIECE
28	BRACKET, SHOCK ABSORBER MOUNTING
29	8540841 Whirlpool Bolt
30	NUT, SHOCK BRKT.
31	Bracket, Heating Element
32	W11230114 Whirlpool Screw Assembly
