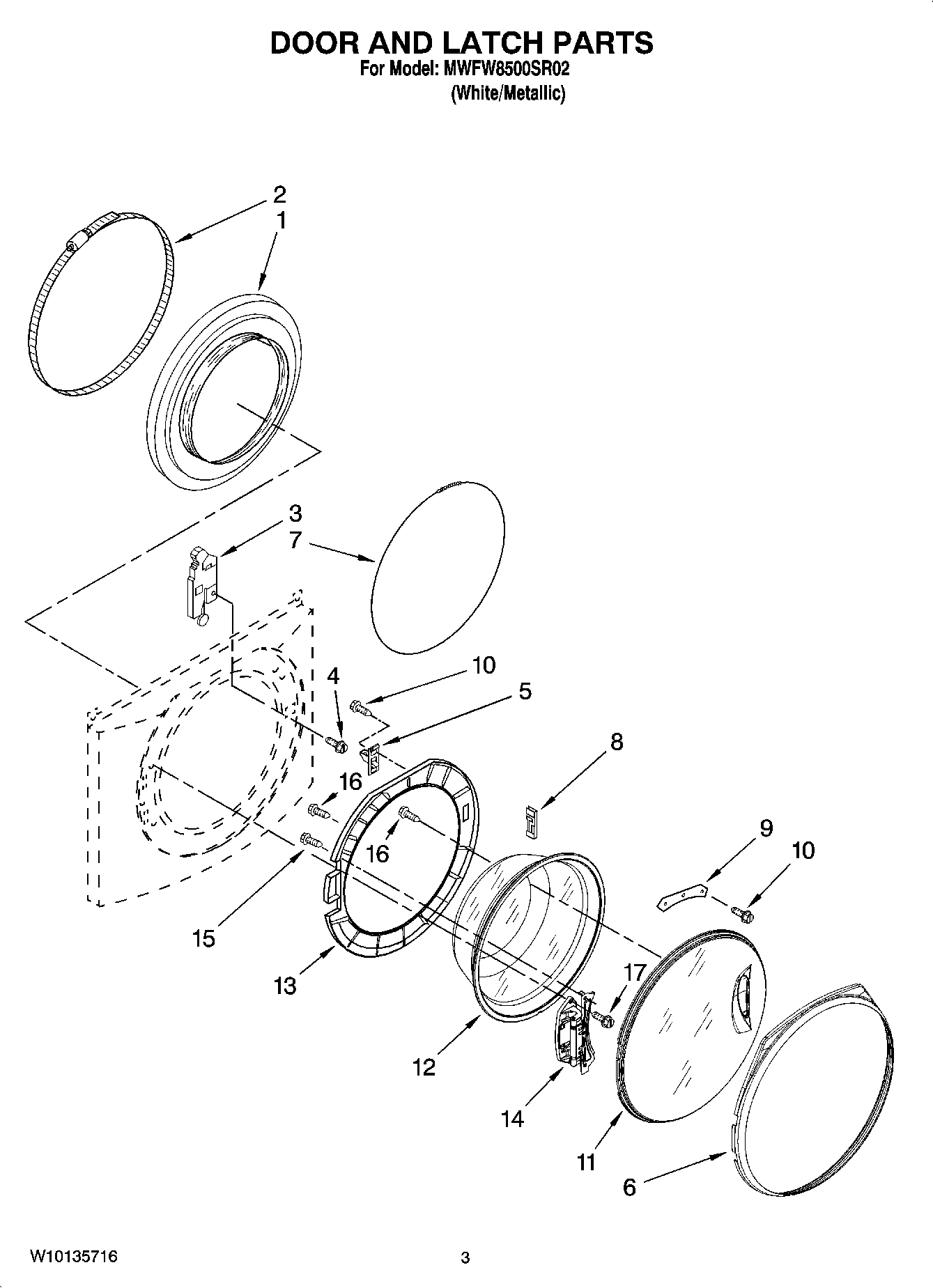

MWFW8500SR02 02 – DOOR AND LATCH PARTS

MWFW8500SR02 02 – DOOR AND LATCH PARTS

Written by

in

MWFW8500SR02 02 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10111435 Whirlpool Washer Door Boot Seal
2WP8540108 Whirlpool Boot Spring Clamp
3WPW10253483 Whirlpool Latch
4WP8540725 Whirlpool Screw Assembly
5WP8540221 Whirlpool Door Strike Assembly
6Trim Ring, Outer Door
7W11032829 Whirlpool Clamp Assembly
8WP8540115 Whirlpool Clamp
9W11665946 Whirlpool Clamp
10W11230114 Whirlpool Screw Assembly
11Frame, Door Front Assembly
12WPW10388315 Whirlpool Glass Door
13WPW10138523 Whirlpool Frame
14Hinge, Door
15WP8181660 Whirlpool Screw
16WP8540282 Whirlpool Screw
17WP489442 Whirlpool Refrigerator Screw
