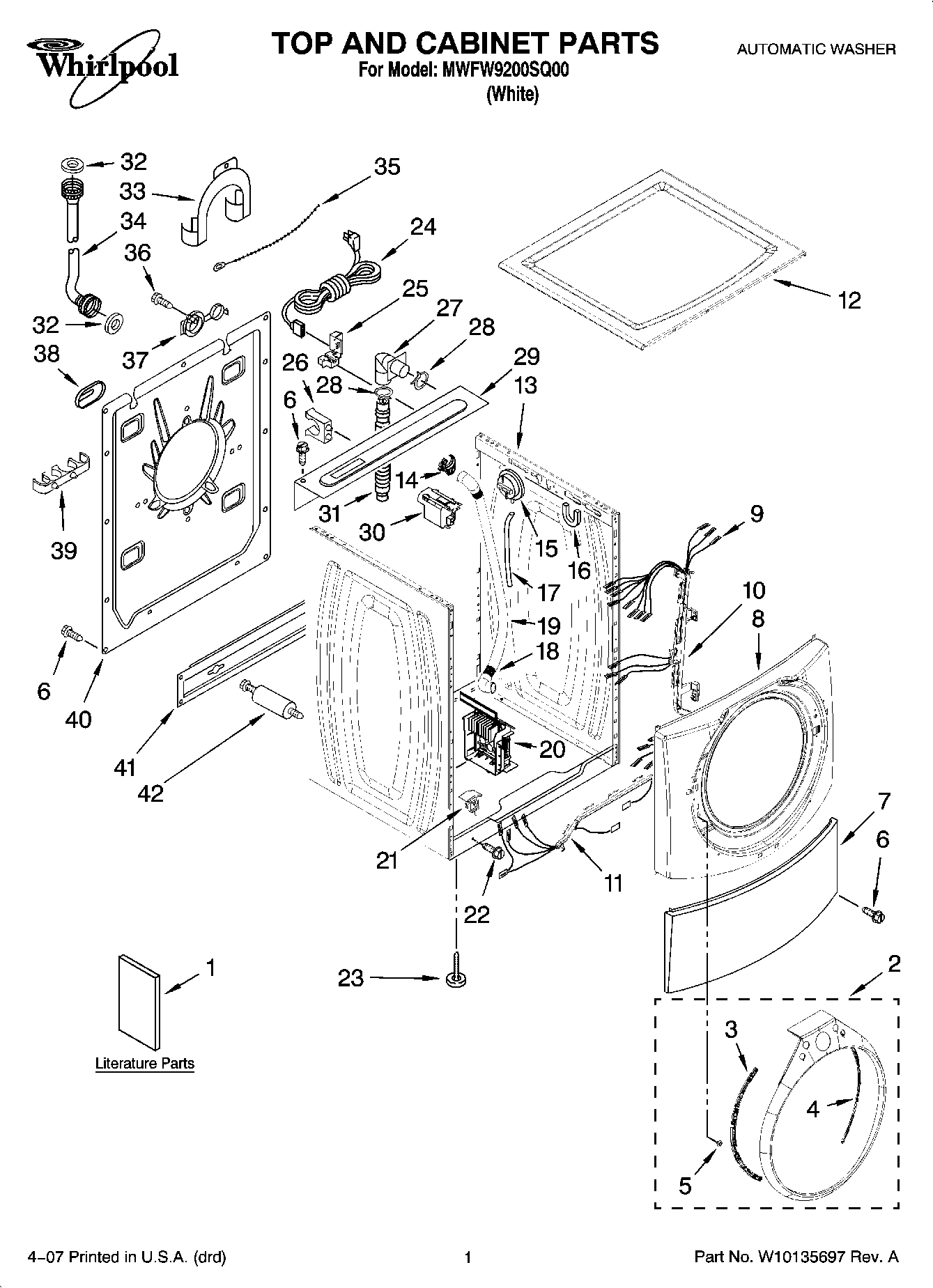

MWFW9200SQ00 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	Energy Guide
1	Tech Sheet
1	Quick Start Guide
2	Trim Ring, Teardrop Assembly
3	Bracket, Trim Fixation (Left)
4	Bracket, Trim Fixation (Right)
5	WP8183210 Whirlpool Clip
6	WP489442 Whirlpool Refrigerator Screw
7	Toe Panel
8	Panel, Front
9	W10116562 Whirlpool Wire Harness
10	W10216383 Whirlpool Retainer
11	W10168549 Whirlpool Retainer
12	Top
13	Cabinet
14	8182209 Whirlpool Clip
15	W11417622 Whirlpool Washer Water Level Switch
16	WP8181763 Whirlpool Bracket Assembly
17	WPW10004260 Whirlpool Pressure Switch Hose
18	WPW10003250 Whirlpool Hose
19	Sleeve, Drain Hose
20	WP8183196 Whirlpool Electronic Control Board + Core
21	WPW10085220 Whirlpool Switch
22	8540479 Whirlpool Screw
23	W10862938 Whirlpool Leveling Feet
24	WP8183009 Whirlpool Power Cord
25	8182635 Whirlpool Strain Relief
26	Clip, Outer Hose Holder
27	CONNECTOR
28	WP356138 Whirlpool Hose Clamp
29	Brace, Rear
30	WPW10367632 Whirlpool Filter
31	WP8181737 Whirlpool Hose
32	WP16123 Whirlpool Washer
33	WPW10280024 Whirlpool Retainer
34	WP89503 Whirlpool Washer Fill Hose
34	FILL HOSE 5' W/WASHER
35	WPW10339879 Whirlpool Wire Tie
36	8182201 Whirlpool Screw
37	W11116978 Whirlpool Grommet
38	WP8540268 Whirlpool Cover Assembly
39	8182701 Whirlpool Clip
40	W10003030 Whirlpool Panel
41	WPW10003040 Whirlpool Brace
42	W10289554A Whirlpool Bolt Kit
