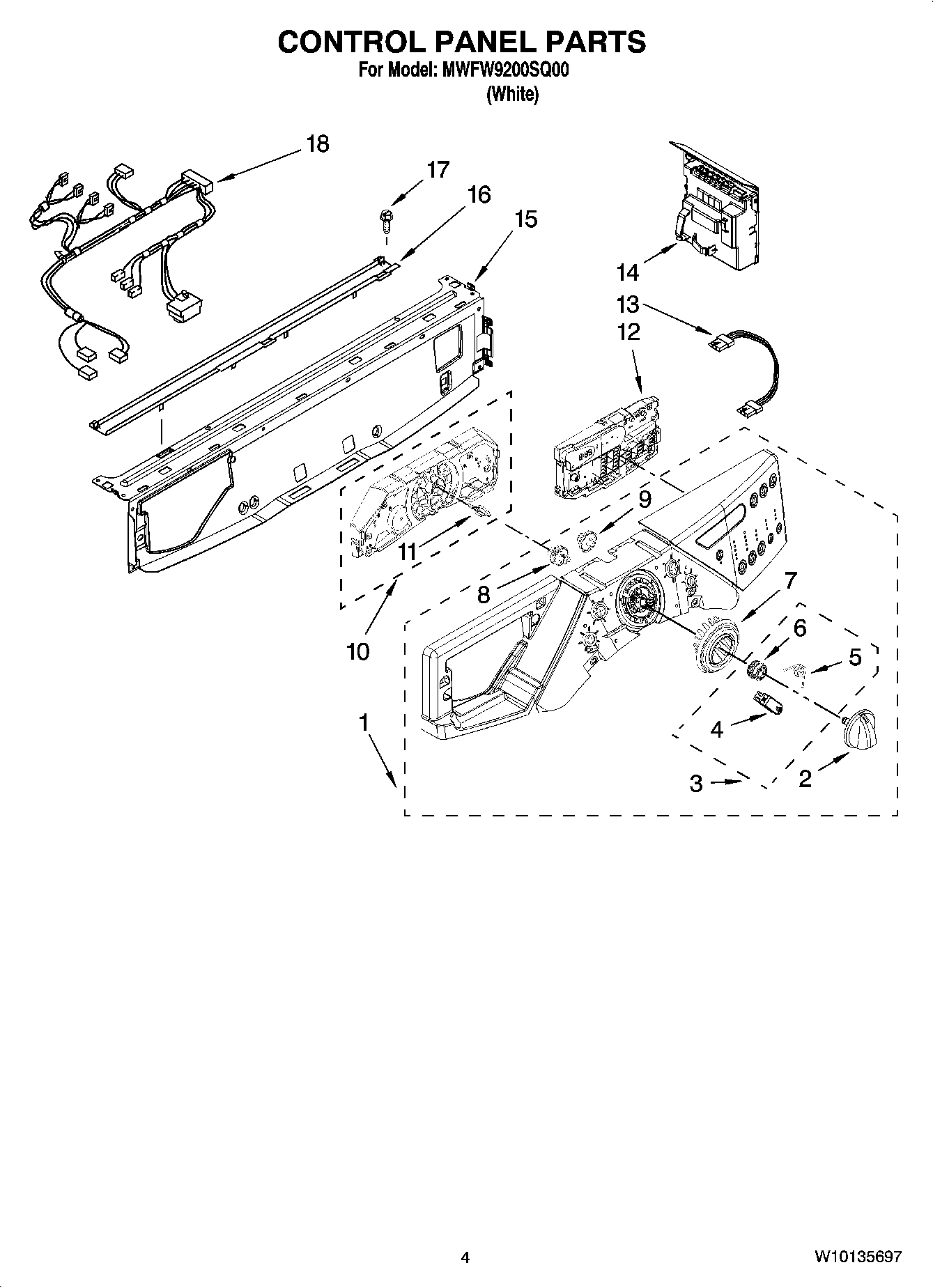

MWFW9200SQ00 03 – CONTROL PANEL PARTS

Products

Position	Product
1	Panel, Control
2	Knob, Control (Includes Item 9)
3	Wheel, Detent Kit (Includes Item 9)
4	Wheel, Rast (2) (Service In Kit Only)
5	Spring, Knob (2) (Service In Kit Only)
6	Wheel, Detent (Service In Kit Only)
7	Ring, Knob Light (Includes Item 9)
8	W10131381 Whirlpool Wheel
9	Retainer, Snap
10	User Interface, Center
11	Adapter, Encoder Wheel
12	User Interface, Right
13	8183254 Whirlpool Wire Harness
14	Microcomputer, Machine Control
15	W10059240 Whirlpool Bracket Assembly
16	WP8183204 Whirlpool Diverter
17	WP489442 Whirlpool Refrigerator Screw
18	Harness, Wiring (Upper Main)
