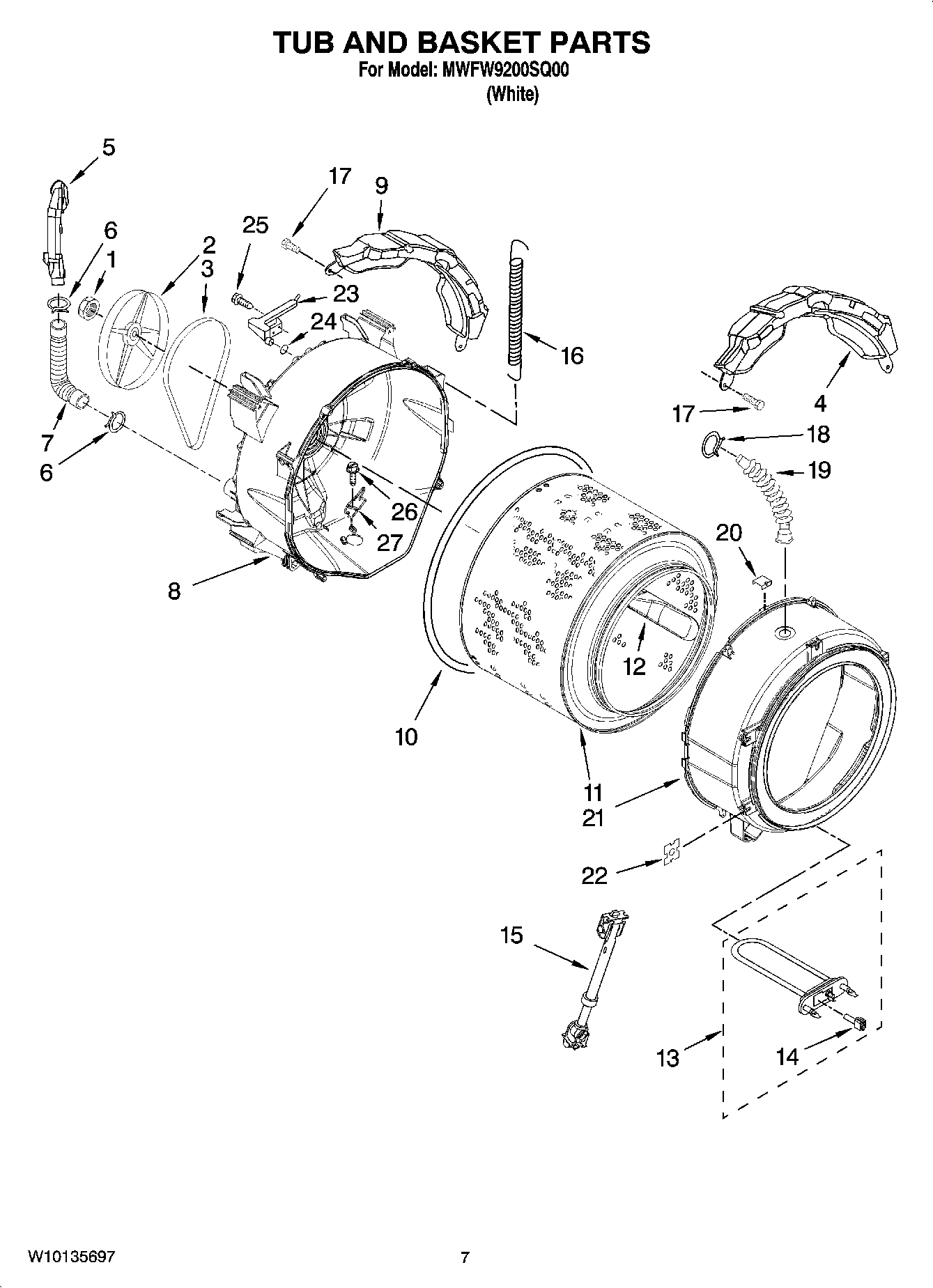

MWFW9200SQ00 05 – TUB AND BASKET PARTS

MWFW9200SQ00 05 – TUB AND BASKET PARTS

Products

PositionProduct
1WPW10283361 Whirlpool Nut
2WP8182650 Whirlpool Pulley
3WPW10388414 Whirlpool Washer Drive Belt
4WPW10008880 Whirlpool Counterweight Assembly
5Pipe, Ventilation
68540010 Whirlpool Clamp
7WP8181743 Whirlpool Hose Assembly
8Tub, Rear (Includes Items 10, 22, 26 & 27)
9Counterweight, Rear
10WPW10036350 Whirlpool Gasket
11WPW10040480 Whirlpool Basket
12Baffle, Tub
13WPW10426377 Whirlpool Heater Assembly
14WPW10467289 Whirlpool Sensor
15W10822553 Whirlpool Washer Shock Absorber
16W10135004 Whirlpool Spring Assembly
17W11685857 Whirlpool Screw Assembly
183363365 Whirlpool Clamp
19WP8540015 Whirlpool Hose Assembly
20WP8540092 Whirlpool Clamp
21Tub, Front (Includes Items 10 & 22)
22WP8182512 Whirlpool Nut Assembly
23Air Trap
24WPW10250553 Whirlpool O-Ring
25W11230114 Whirlpool Screw Assembly
27W10250558 Whirlpool Bracket Assembly
