MWL111RBW2 05 – CONTROL PANEL – Aparts

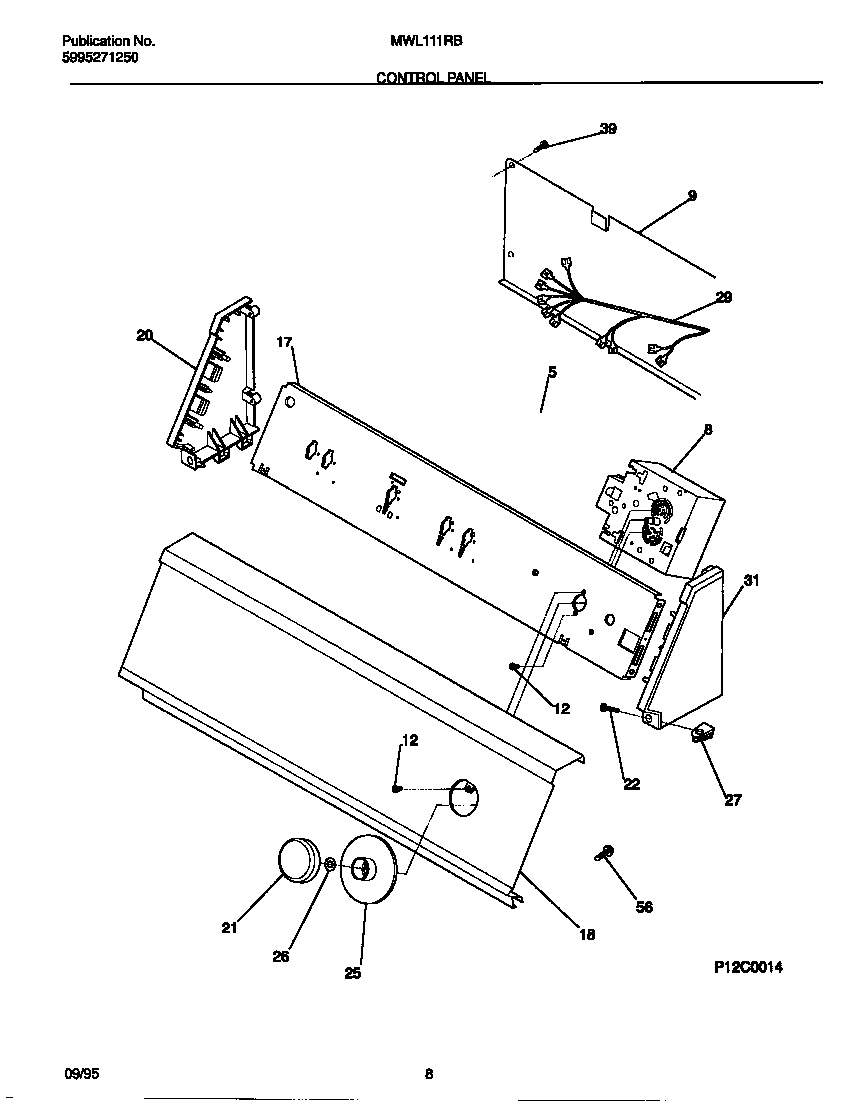

MWL111RBW2 05 – CONTROL PANEL

Products

Position	Product
2	131168200 Frigidaire Dryer Screw
5	WCI 131302500
8	WCI 131359700
9	COVER-BACK
12	SCREW (2)
17	WCI 131297306
18	WCI 131250800
20	WCI 5303291344
21	WCI 5308014337
22	WCI 131266300
25	WCI 5303295581
26	Spacer,washer ,timer shaft
27	CLIP-CONSOLE MTG
29	WCI 131449900
31	WCI 5303291352
39	131205100 Frigidaire Screw
56	131243800 Frigidaire Screw
