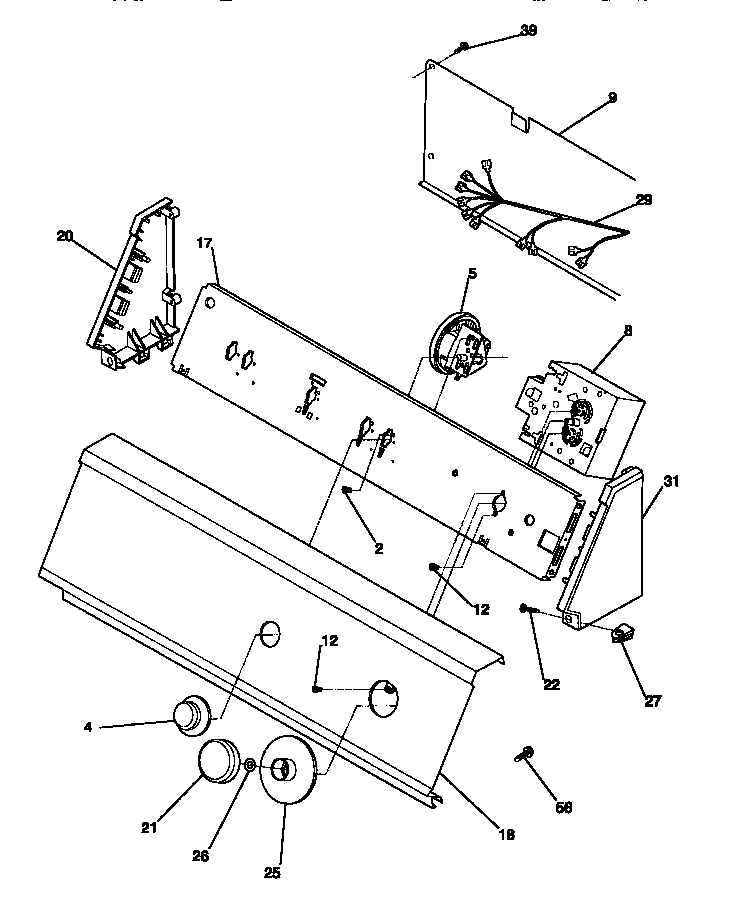

MWL411RBW3 05 – CONTROL PANEL

MWL411RBW3 05 – CONTROL PANEL

Written by

in

MWL411RBW3 05 – CONTROL PANEL

Products

PositionProduct
2131168200 Frigidaire Dryer Screw
4WCI 131081000
5WCI 131302500
8WCI 131359800
9COVER-BACK
12SCREW (2)
17WCI 131297306
18PANEL-CONTROL, WHITE
20WCI 5303291344
21WCI 5308014337
22WCI 131266300
25WCI 5303295581
26Spacer,washer ,timer shaft
27CLIP-CONSOLE MTG
29WCI 131342700
31WCI 5303291352
39131205100 Frigidaire Screw
56131243800 Frigidaire Screw
