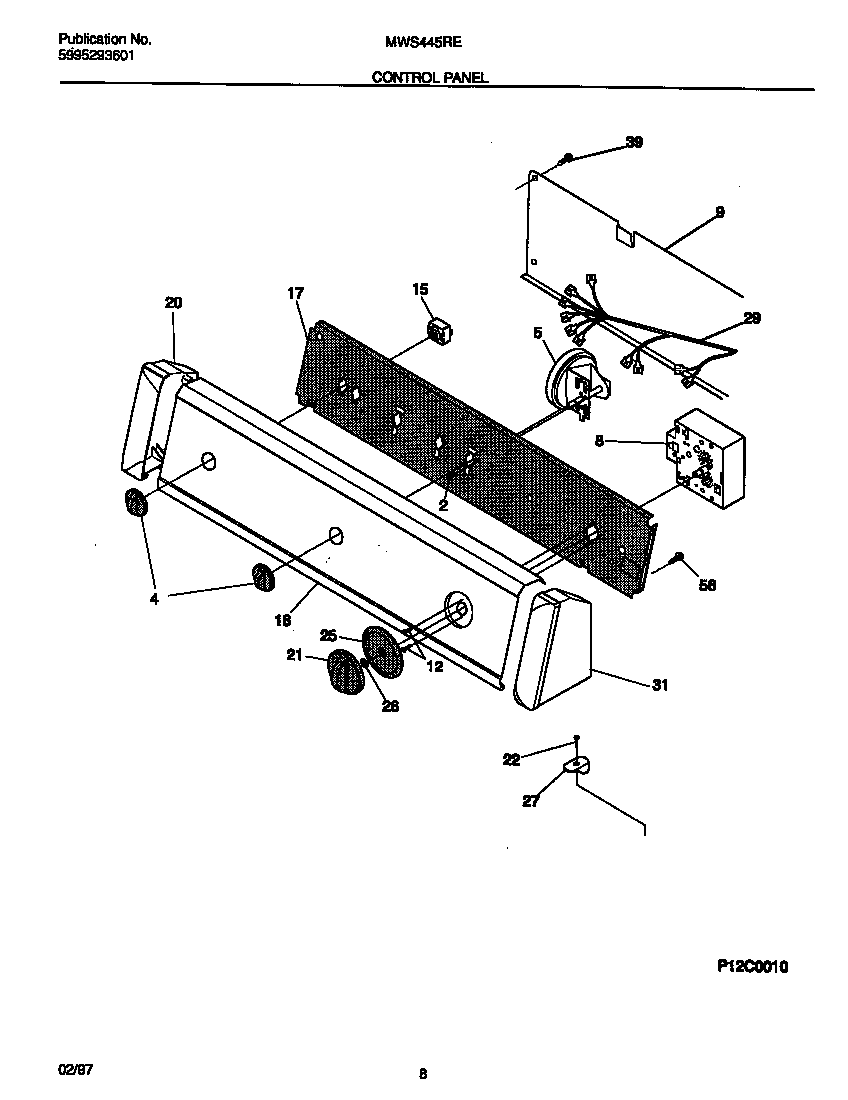

MWS445RES1 05 – CONTROL PANEL

MWS445RES1 05 – CONTROL PANEL

Written by

in

MWS445RES1 05 – CONTROL PANEL

Products

PositionProduct
2131168200 Frigidaire Dryer Screw
4WCI 131118603
5134680100 Frigidaire Pressure Switch
8WCI 131436800
9COVER-BACK
12SCREW (2)
15WCI 131081200
17WCI 131297306
18WCI 131507800
20WCI 5303291343
21KNOB – TIMER
22WCI 131266320
25DIAL-TIMER, WHITE
26Spacer,washer ,timer shaft
27CLIP-CONSOLE MTG
29WCI 131645100
31WCI 5303291351
39131205100 Frigidaire Screw
56131243800 Frigidaire Screw
