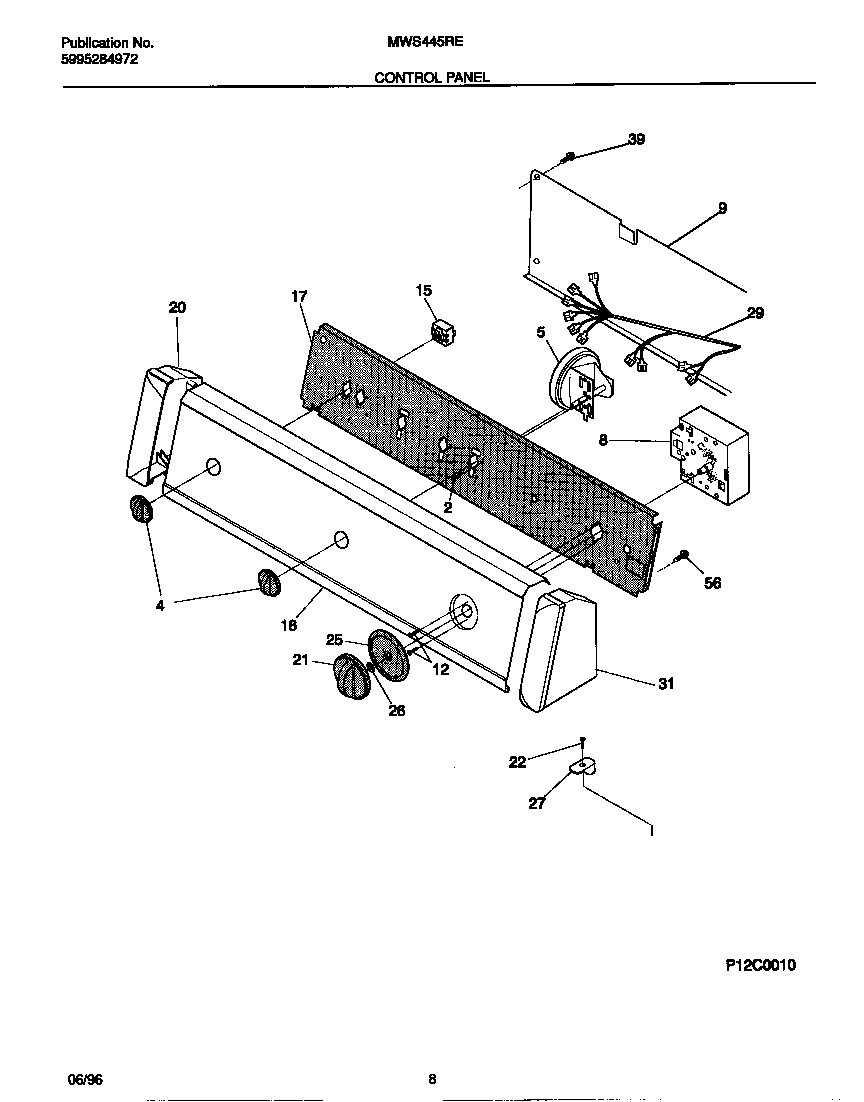

MWS445RET0 05 – CONTROL PANEL – Aparts

MWS445RET0 05 – CONTROL PANEL

Products

Position	Product
2	131168200 Frigidaire Dryer Screw
4	WCI 131118604
5	134680100 Frigidaire Pressure Switch
8	WCI 131436800
9	COVER-BACK
12	SCREW (2)
15	WCI 131081200
17	WCI 131297306
18	WCI 131507900
20	WCI 5303318524
21	WCI 131118402
22	WCI 131266320
25	WCI 131118504
26	Spacer,washer ,timer shaft
27	CLIP-CONSOLE MTG
29	WCI 131520000
31	WCI 5303318525
39	131205100 Frigidaire Screw
56	131243800 Frigidaire Screw
