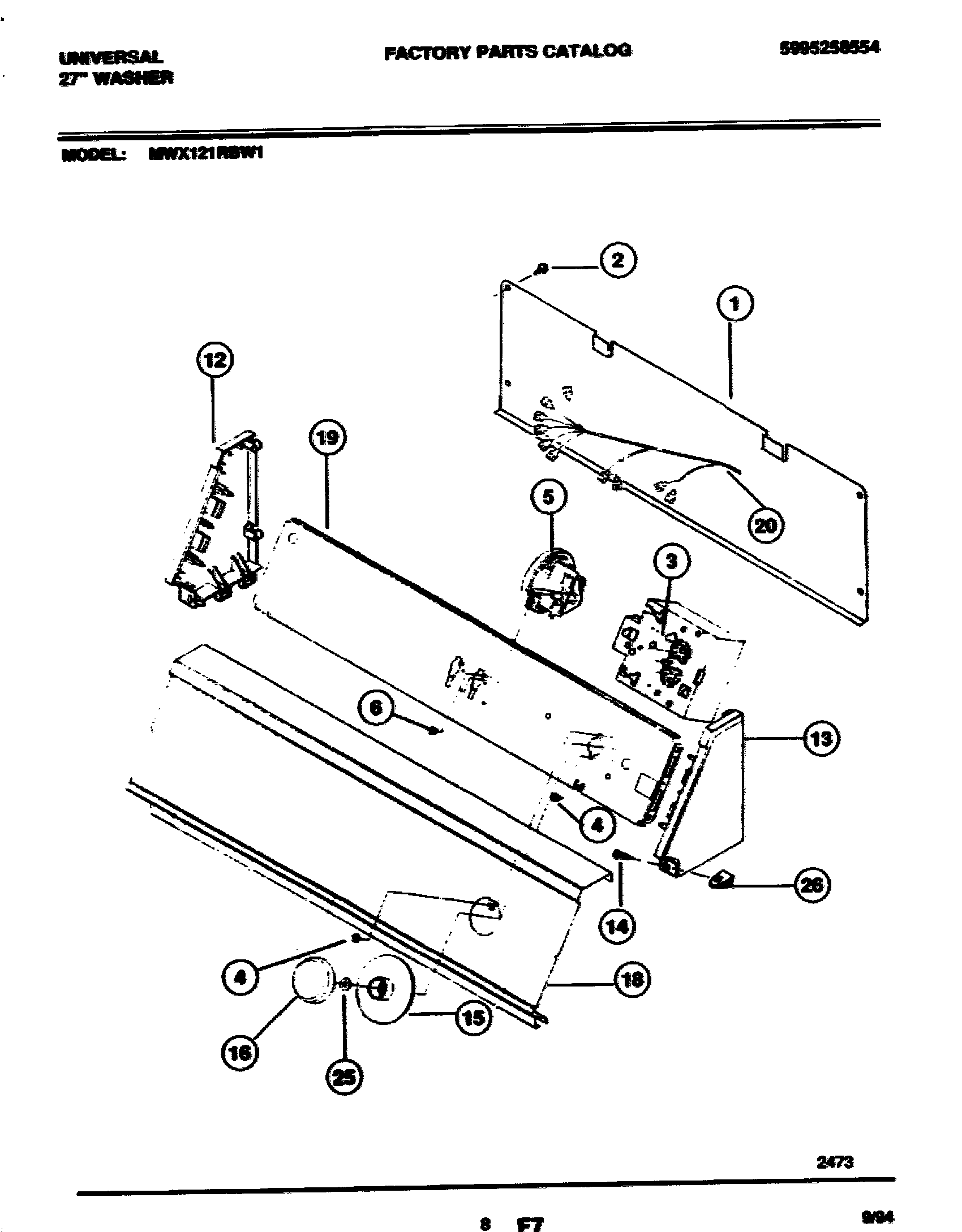

MWX121RBW1 09 – CONTROLS

MWX121RBW1 09 – CONTROLS

Written by

in

MWX121RBW1 09 – CONTROLS

Products

Position	Product
NI	SCREW
NI	131243800 Frigidaire Screw
1	COVER-BACK
2	131205100 Frigidaire Screw
3	TIMER-WASHER
4	SCREW (2)
5	WCI 131302500
6	131168200 Frigidaire Dryer Screw
12	WCI 5303291344
13	WCI 5303291352
14	WCI 5303289526
15	WCI 5303295581
16	WCI 5308014337
18	WCI 131359200
19	WCI 131297306
20	WCI 131166000
25	Spacer,washer ,timer shaft
26	CLIP-CONSOLE MTG
