MWX233RBD2 05 – CONTROL PANEL – Aparts

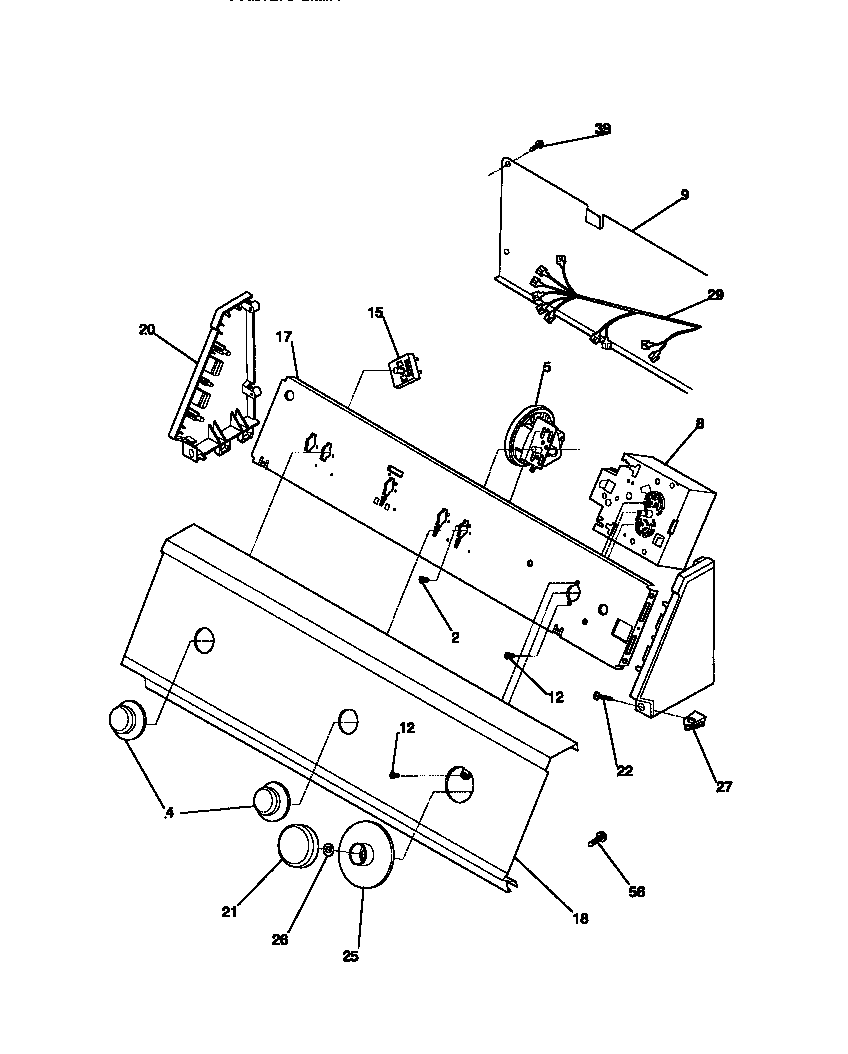

MWX233RBD2 05 – CONTROL PANEL

Products

Position	Product
2	131168200 Frigidaire Dryer Screw
4	WCI 131081000
5	WCI 131047500
8	WCI 131360200
9	COVER-BACK
9A	COVER-BACK
12	SCREW (2)
15	WCI 131047000
17	WCI 131297306
18	WCI 131313400
20	WCI 5303291344
21	WCI 5308014337
22	WCI 131266300
25	WCI 5303295581
26	Spacer,washer ,timer shaft
27	CLIP-CONSOLE MTG
29	WCI 131340900
31	WCI 5303291352
39	131205100 Frigidaire Screw
56	131243800 Frigidaire Screw
