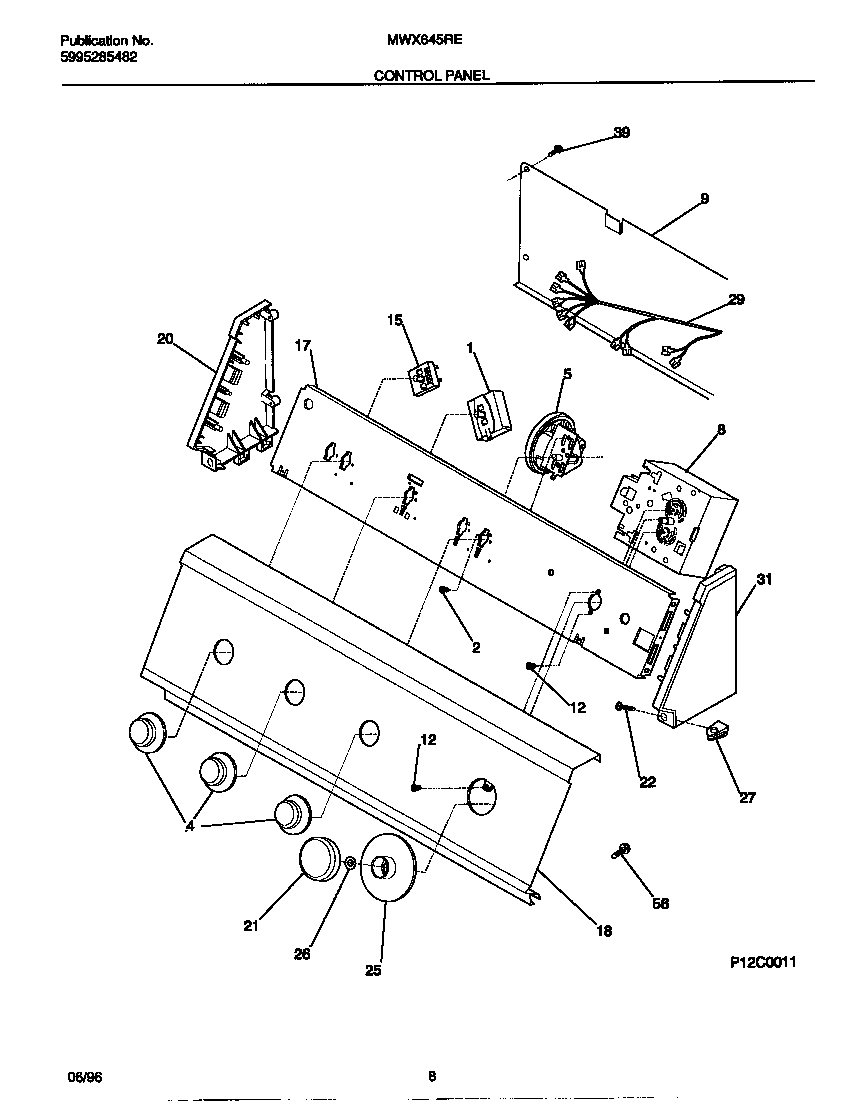

MWX645RET0 05 – CONTROL PANEL

MWX645RET0 05 – CONTROL PANEL

Written by

in

MWX645RET0 05 – CONTROL PANEL

Products

PositionProduct
1WCI 131120400
2131168200 Frigidaire Dryer Screw
4WCI 131118604
5WCI 131395500
8WCI 131437000
9COVER-BACK
12SCREW (2)
15WCI 131081200
17WCI 131297306
18WCI 131508100
20WCI 5303318524
21WCI 131118402
22WCI 131266320
25WCI 131118504
26Spacer,washer ,timer shaft
27CLIP-CONSOLE MTG
29WCI 131520100
31WCI 5303318525
39131205100 Frigidaire Screw
56131243800 Frigidaire Screw
