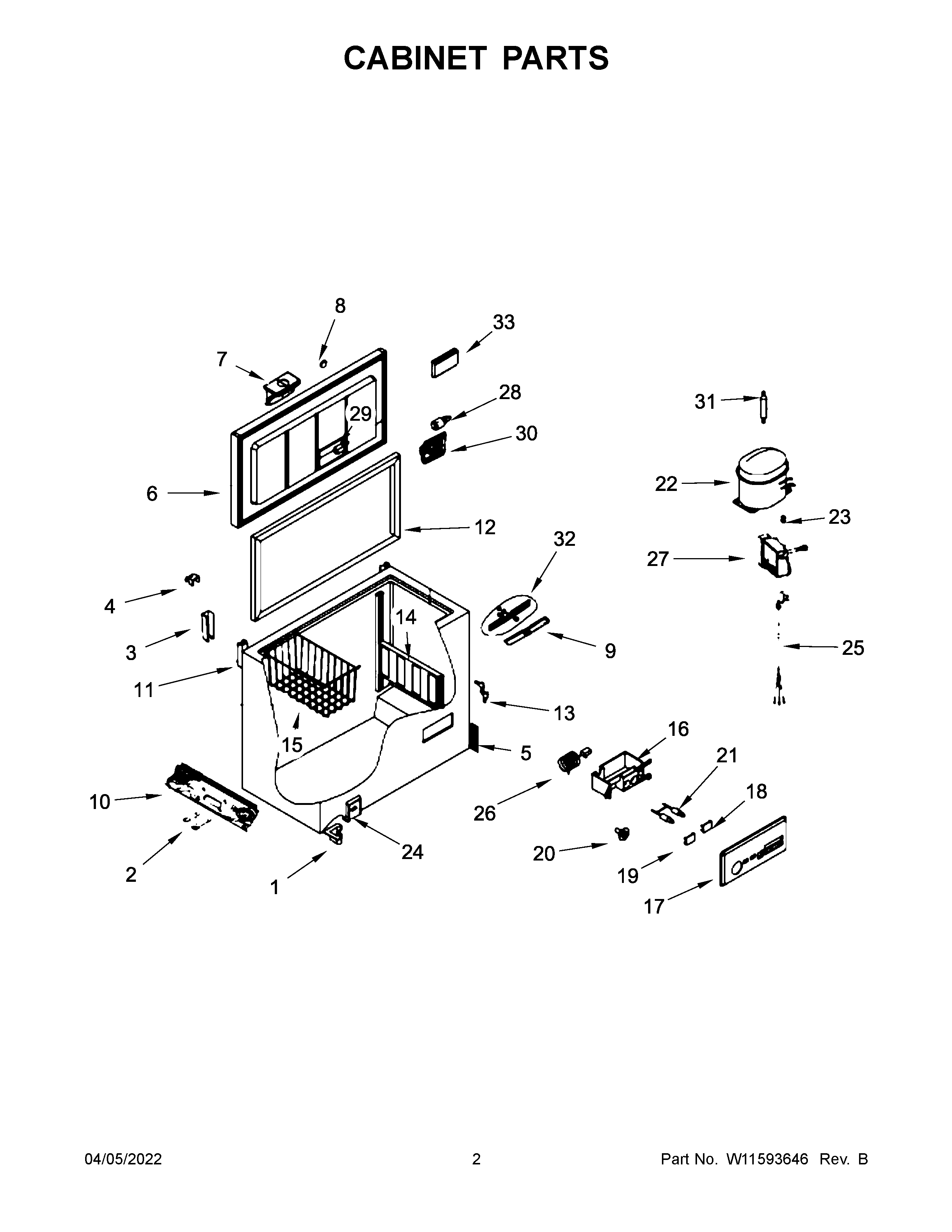

MZC5216LW 02 – CABINET PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11597891 Whirlpool Basket Assembly
1	W11591689 Whirlpool Lever Foot
2	W11591957 Whirlpool Cabinet Roller
3	W11591958 Whirlpool Cover
4	W11591959 Whirlpool Cover Assembly
5	W11591960 Whirlpool Unit Cover
6	W11599965 Whirlpool Door Assembly
7	W11591981 Whirlpool Handle Assembly
8	W11591983 Whirlpool Handle Plug
9	W11593694 Whirlpool Cover Assembly
10	W11591985 Whirlpool Frame
11	W11598144 Whirlpool Door Hinge
12	W11597677 Whirlpool Door Gasket
13	W11597676 Whirlpool Door Key
14	W11593742 Whirlpool Separator Assembly
15	W11597890 Whirlpool Refrigerator Freezer Basket
16	W11592036 Whirlpool Control Box
17	W11592037 Whirlpool Overlay
18	LENS (RED)
19	LENS (GREEN)
20	W11592041 Whirlpool Thermostat Knob
21	W11593352 Whirlpool Harness Assembly
22	W11599968 Whirlpool Compressor
23	COMPRESSOR DAMPER
24	W11592064 Whirlpool Drain Plug
25	W11531505 Whirlpool Power Cord
26	W11685637 Whirlpool Refrigerator Thermostat
27	W11598145 Whirlpool Inverter Box
28	W11518235 Whirlpool LED Light
29	W11593888 Whirlpool Refrigerator Socket
30	SUPPORT, LAMP HOLDER
31	W11109499 Whirlpool Refrigerator Tube
32	W11593738 Whirlpool Refrigerator Door Lock
33	W11593756 Whirlpool Cover Assembly
