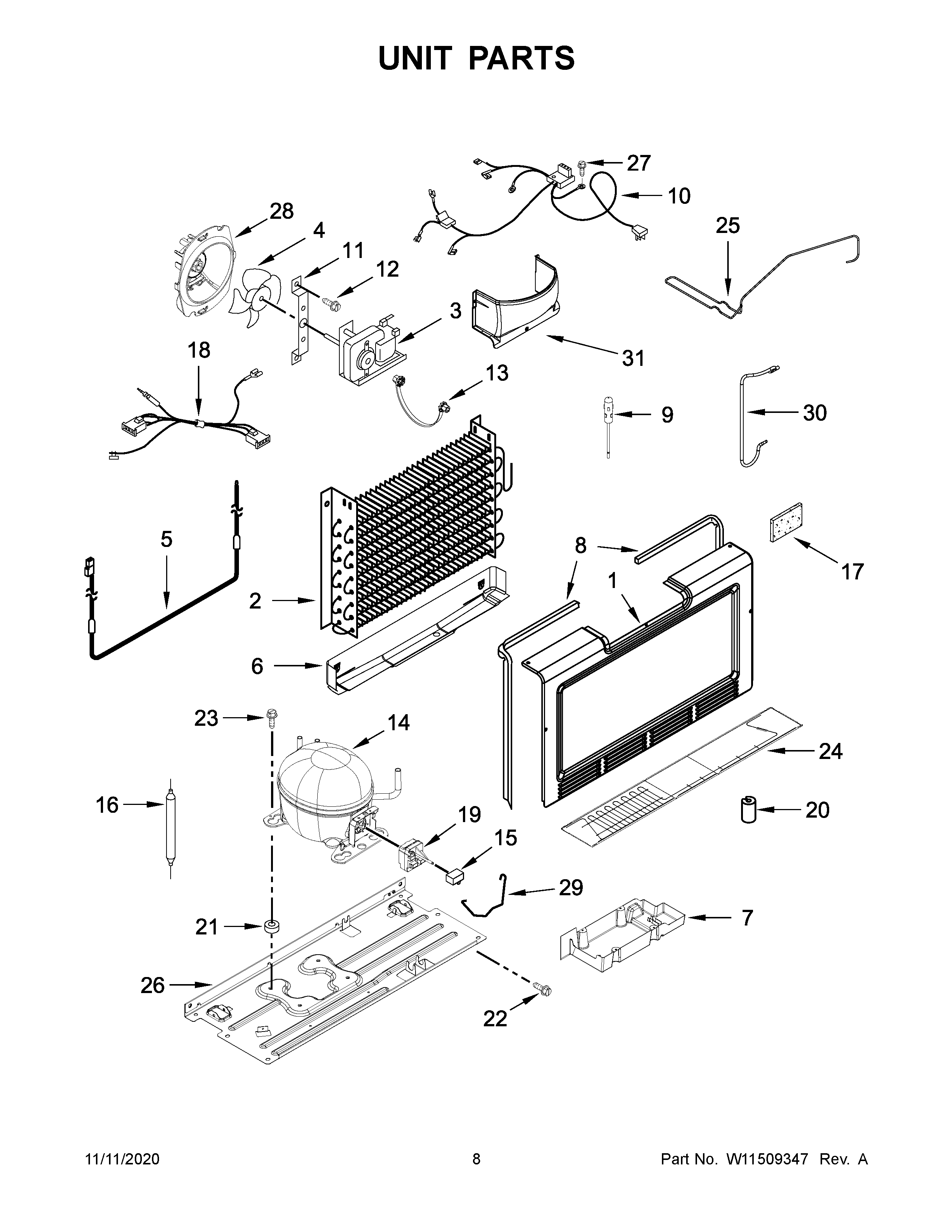

MZF34X16DW06 05 – UNIT PARTSadmin2025-04-26T12:46:30+00:00MZF34X16DW06 05 – UNIT PARTS ProductsPositionProductNICABINET (NOT A SERVICEABLE PART)1W11551256 Whirlpool Refrigerator Evaporator Cover2W11507067 Whirlpool Refrigerator Evaporator3W11499658 Whirlpool Refrigerator Evaporator Motor4WP2169142 Whirlpool Fan Blade5WPW10316428 Whirlpool Refrigerator Heater6WPW10314195 Whirlpool Refrigerator Shield7W10574291 Whirlpool Refrigerator Drip Pan8WPW10574368 Whirlpool Refrigerator Gasket9THERMISTOR-REFRIGERATOR10W11648068 Whirlpool Refrigerator Wire Harness11CLIP, EVAPORATOR MOTOR12SCREW13W11690160 Whirlpool Grommet14W11209866 Whirlpool Refrigerator Compressor15WPW10350564 Whirlpool Refrigerator Freezer Capacitor16WPW10143759 Whirlpool Dryer Filter17W11553819 Whirlpool Refrigerator Insulation18W11670030 Whirlpool Harness19W11092533 Whirlpool Device Start20W10852725 Whirlpool Refrigerator Grommet21W11661108 Whirlpool Grommet22BOLT23SCREW24CONDENSER25W10574478 Whirlpool Refrigerator Tube26W10574278 Whirlpool Refrigerator Compressor Pan27SCREW28W10574469 Whirlpool Refrigerator Scroll Fan29W11092534 Whirlpool Refrigerator Clip30W10872146 Whirlpool Refrigerator Tube31W10574581 Whirlpool Refrigerator Evaporator Cover
