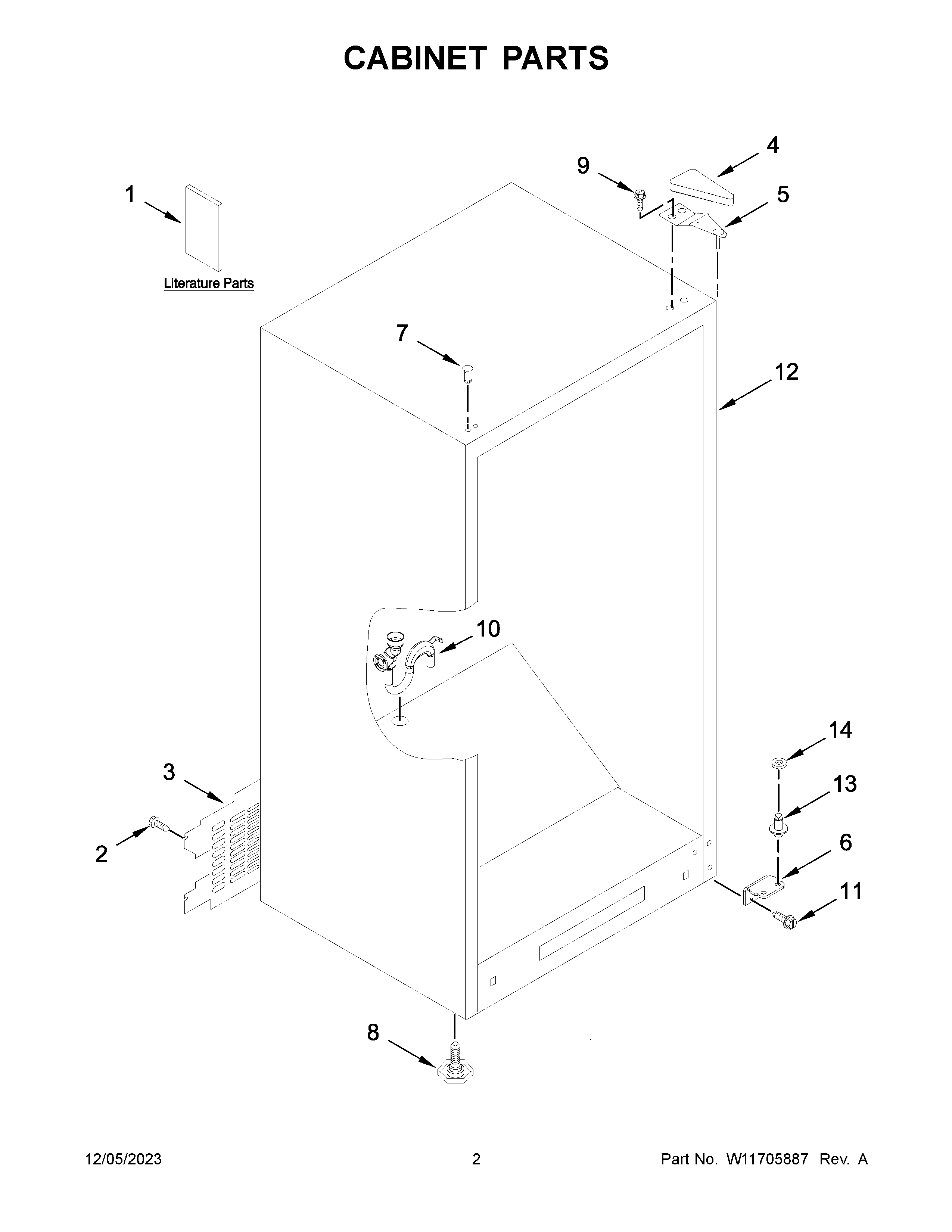

MZF34X16DW10 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	OWNER'S MANUAL
1B	TECH SHEET
2	SCREW
3	W11311062 Whirlpool Unit Cover
4	WP2213360 Whirlpool Refrigerator Cover
5	HINGE-DOOR
6	W10574264 Whirlpool Refrigerator Door Hinge
7	WPW10520304 Whirlpool Refrigerator Button Plug
8	LEG, LEVELER
9	WP489497 Whirlpool Screw
10	W11673435 Whirlpool Refrigerator Drain Tube
11	67006564 Whirlpool Refrigerator Screw
12	CABINET (NOT A SERVICEABLE PART)
13	W11676609 Whirlpool Hinge Pin
14	WP487576 Whirlpool Washer
15	WPW10534166 Whirlpool Refrigerator Front Grille
16	SCREW (WHITE)
