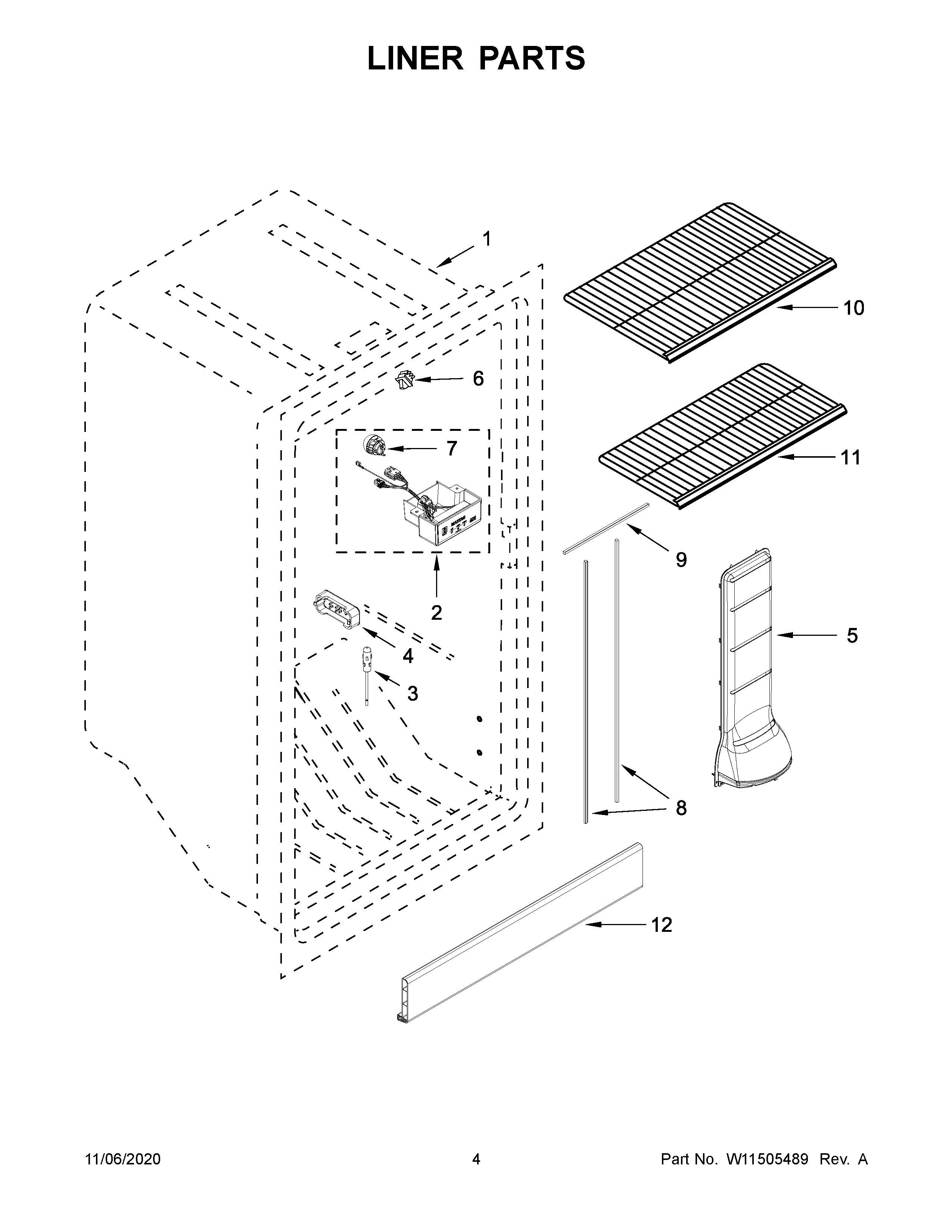

MZF34X20DW04 03 – LINER PARTS

MZF34X20DW04 03 – LINER PARTS

Written by

in

MZF34X20DW04 03 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11496887 Whirlpool Refrigerator Control Box
3WPW10384183 Whirlpool Thermistor
4W10608692 Whirlpool Refrigerator Cover
5W10574583 Whirlpool Refrigerator Air Tower
6W10755325 Whirlpool Refrigerator Switch
7W11502762 Whirlpool Light Bulb
8WPW10574368 Whirlpool Refrigerator Gasket
10W10860909 Whirlpool Refrigerator Wire Shelf
11W11679651 Whirlpool Wire Shelf
12W10581590 Whirlpool Refrigerator Door Trim
