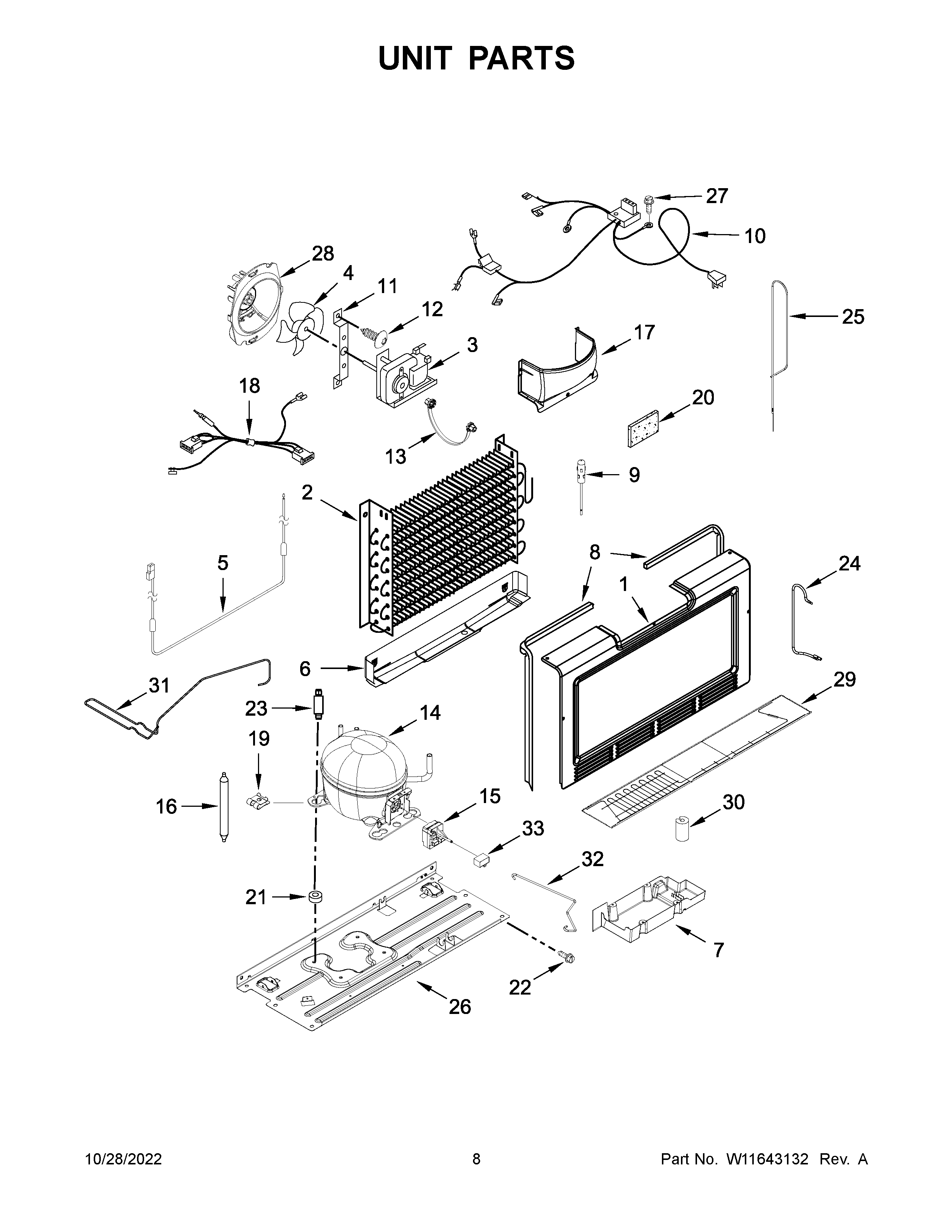

MZF34X20DW07 05 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	W11551256 Whirlpool Refrigerator Evaporator Cover
2A	W11504450 Whirlpool Refrigerator Coupler
2	W11572047 Whirlpool Refrigerator Evaporator
3	W11499658 Whirlpool Refrigerator Evaporator Motor
4	WP2169142 Whirlpool Fan Blade
5	W11562215 Whirlpool Refrigerator Heater
6	W11562216 Whirlpool Shield
7	W10574291 Whirlpool Refrigerator Drip Pan
8	WPW10574368 Whirlpool Refrigerator Gasket
9	WPW10384183 Whirlpool Thermistor
10	W11648068 Whirlpool Refrigerator Wire Harness
11	CLIP, EVAPORATOR MOTOR
12	SCREW
13	W11690160 Whirlpool Grommet
14C	W11506622 Whirlpool Refrigerator Coupler
14C	W11506635 Whirlpool Refrigerator Valve Coupler
14A	W11504420 Whirlpool Microwave Coupler
14	W11547313 Whirlpool Refrigerator Compressor
15	W11524472 Whirlpool Refrigerator Start Device
16B	W11504448 Whirlpool Refrigerator Coupler
16A	W11506623 Whirlpool Refrigerator Coupler
16	W11109499 Whirlpool Refrigerator Tube
17	W10574581 Whirlpool Refrigerator Evaporator Cover
18	W11741458 Whirlpool Harness
19	W10697017 Whirlpool Clip
20	W11553819 Whirlpool Refrigerator Insulation
21	WPW10169124 Whirlpool Refrigerator Grommet
22	BOLT
23	SCREW
24	TUBE, SUCTION
26	PAN, COMPRESSOR
27	SCREW
28	W10574469 Whirlpool Refrigerator Scroll Fan
30	W10852725 Whirlpool Refrigerator Grommet
31	W10574478 Whirlpool Refrigerator Tube
31B	W11578570 Whirlpool Refrigerator Coupler
31A	W11504431 Whirlpool Microwave Coupler
32	WPL W11379613
33	W11631831 Whirlpool Capacitor
