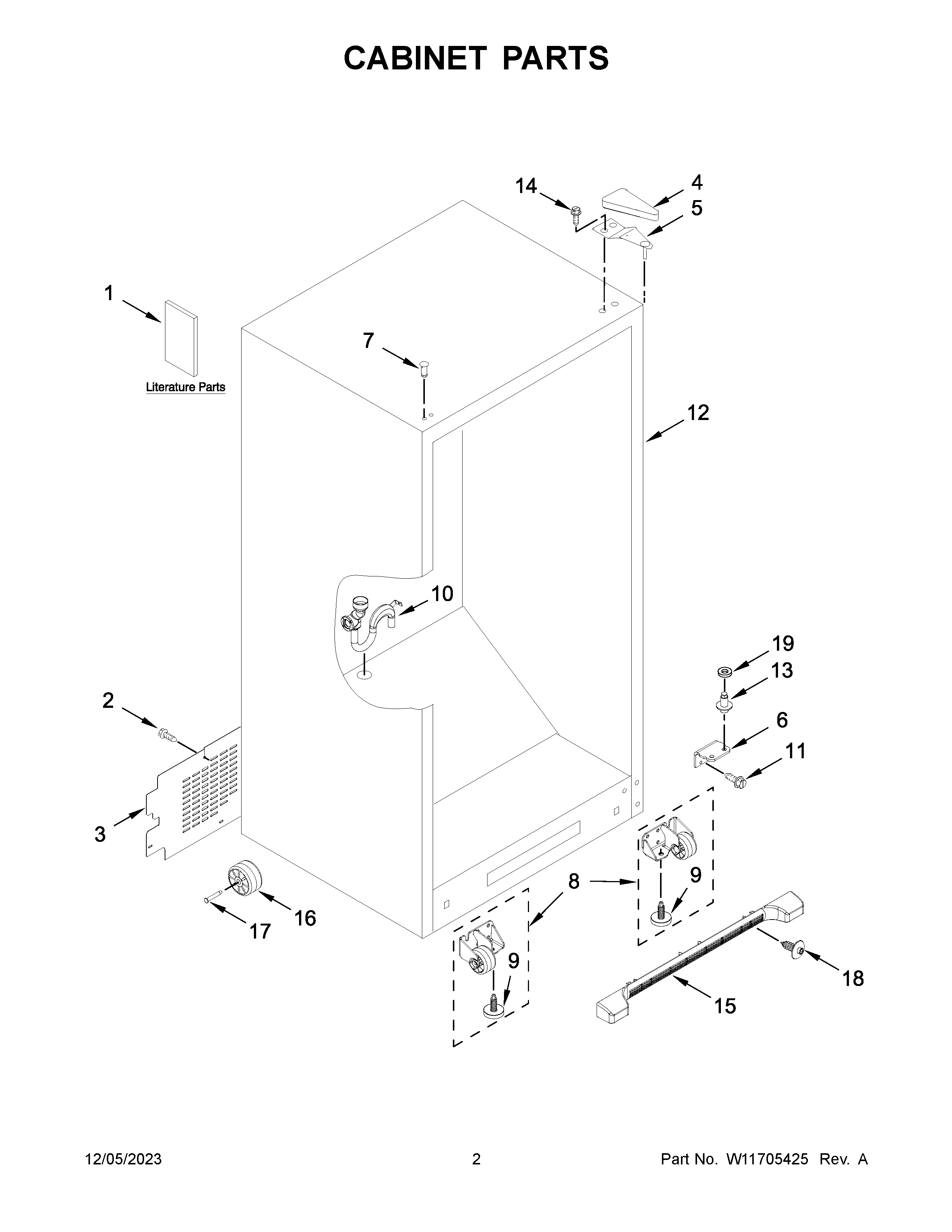

MZF34X20DW08 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	OWNER'S MANUAL
1B	TECH SHEET
2	SCREW
3	W11311063 Whirlpool Unit Cover
4	WP2213360 Whirlpool Refrigerator Cover
5	HINGE-DOOR
6	W10574264 Whirlpool Refrigerator Door Hinge
7	WPW10520304 Whirlpool Refrigerator Button Plug
8A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
8	WPW10515763 Whirlpool Refrigerator Cabinet Roller
9	WPW10141622 Whirlpool Leveler
10	W11673435 Whirlpool Refrigerator Drain Tube
11	67006564 Whirlpool Refrigerator Screw
12	CABINET (NOT A SERVICEABLE PART)
13	W11676609 Whirlpool Hinge Pin
14	WP489497 Whirlpool Screw
15	WPW10534161 Whirlpool Refrigerator Front Grille
16	WPW10475495 Whirlpool Roller Assembly
17	W11594405 Whirlpool Axle
18	WPW10142283 Whirlpool Refrigerator Screw
19	WP487576 Whirlpool Washer
