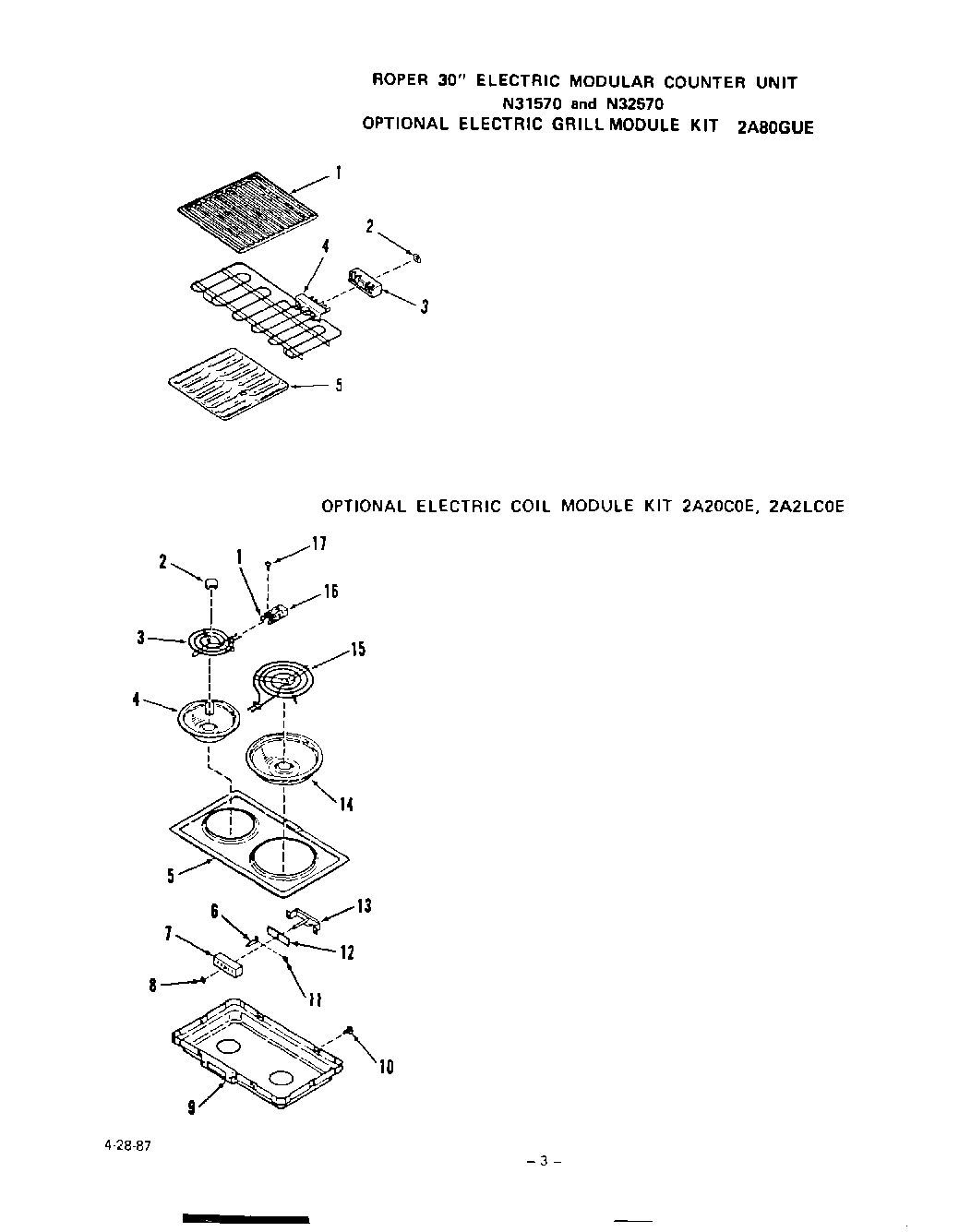

N3157^0 03 – ELECTRIC GRILL MODULE , ELECTRIC

Products

Position	Product
1	Grate-Grill (2 Req)
1	Bracket-Term. Block (2 Req) All 2101 Mod.
2	Medallion (2 Req) All 2101 Models
3	6“ Surface Element (1 Req) All 2101 Models
4	240 Volt
4	6“ Burner Bowl (1 Req) All 2101 Models
4	208 Volt (Optional-Order Kit 2C70GEE)
5	Almond
5	21010E,1E,21020E, 1E Models
5	Chrome
6	Terminal Pin (4 Req)
7	Terminal Block-Grill Element
8	Speed Nut
9	Pan-Module
10	WPL 232183
11	WPL 78565
12	hold down, glass (2)
13	Bracket-Terminal Block
14	8“ Burner Bowl (1 Req) All 2101 Models
15	8“ Surface Element (1 Req) All 2101 Mod.
16	Term. Block w/Leads-All 2101 Models
17	Screw 7-32×5/16“(2 Req) All 2101 Models
