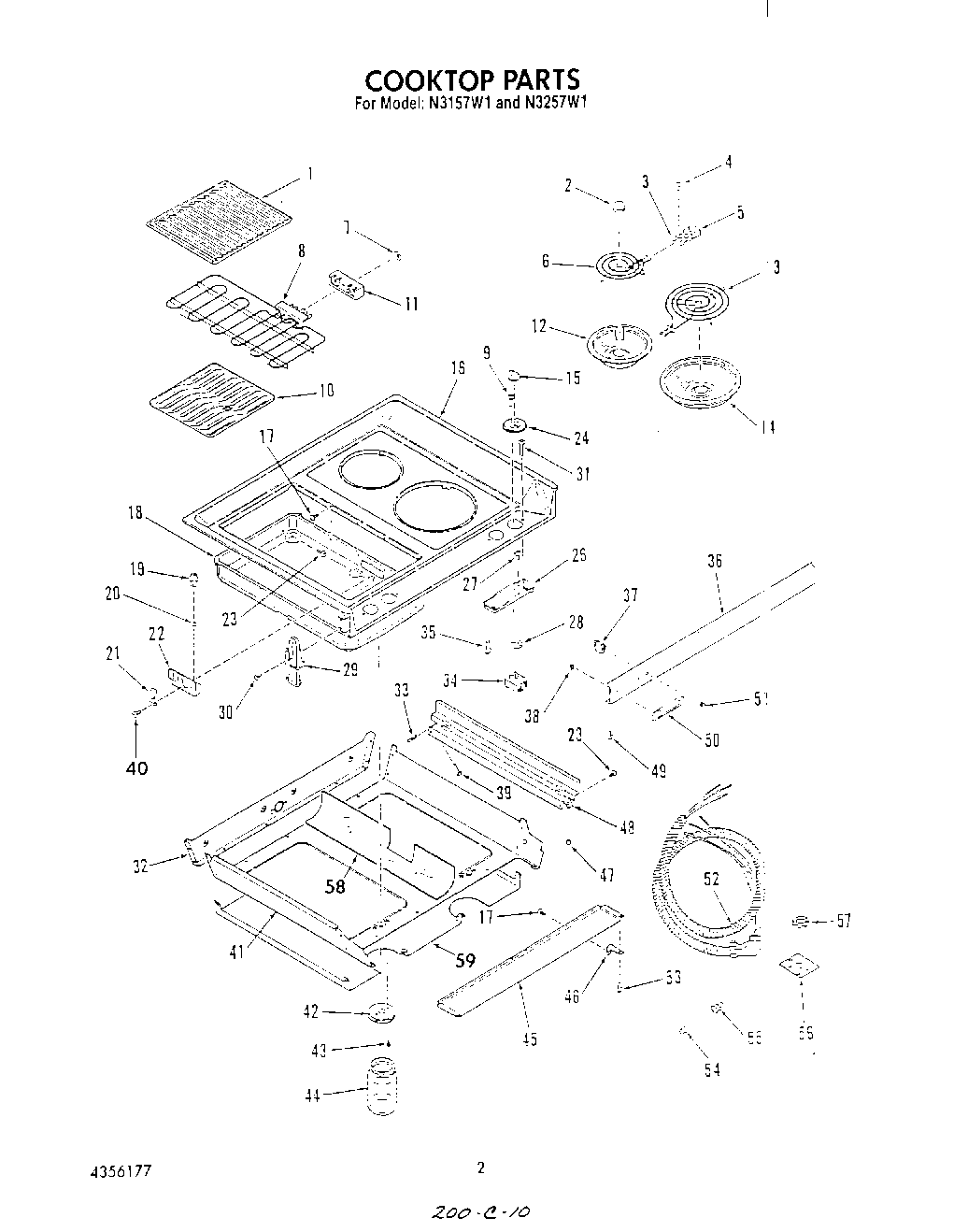

N3157^1 02 – COOK TOP
Written by
in
N3157^1 02 – COOK TOP
Products
Position
Product
1
Grate-Grill
2
Medallion (2)
3
WP4332752 Whirlpool Clip
4
Screw, No.7-32 x 5/16
5
BURNER RECEPTACLE KIT
6
WPY04100165 Whirlpool Surface Element
7
Nut, Speed
8
Element, Grill (240 Volt)
9
Screw, No.8-32 x 3/8
10
Reflector Grid
11
Block, Terminal
12
WPW10196406 Whirlpool 6" Chrome Drip Bowl
13
WP3177565 Whirlpool Surface Element
14
DRIP BOWL 8" W/HOLE CHROME
15
Knob, Infinite
16
Top, Main (Chrome N3157X)
16
Top, Main (Black N3257B)
16
Top, Main (White N3157W)
16
Top, Main (White N3257W)
16
Top, Main (Black N3157B)
16
Top, Main (Almond N3157L)
16
Top, Main (Almond N3257L)
16
Top, Main (Chrome N3257X)
17
Screw No.6-20×3/8
18
Grease Well (Left)
18
Grease Well (Right)
19
Terminal
21
Clamp, Terminal Block
22
Block, Terminal
23
SCREW
24
Bezel, Knob (Left Rear)
24
Bezel, Knob (Right Front)
24
Bezel, Knob (Left Front)
24
Bezel, Knob (Right Rear)
26
Mounting tray Switch (Rt or Lt)
27
Screw
28
Seal, Control
29
End Cap (Left)
29
End Cap (Right)
30
Screw No.10-32×1/2
31
WPL 4342651
32
WPL 4335895
33
WPL 4335925
34
W10900107 Whirlpool Oven Surface Element Switch
34
Knob, Infinite
35
Screw No.10-32×7/16
36
WPL 4336911
37
Light, Indicator
38
WPL 4323217
39
WPL 4335926
40
Screw, No.8-32 x 3/8
41
WPL 4337011
42
Jar Lid (2)
43
Screw No.10-32×1/4
44
WPY707869 Whirlpool Drain Jar
45
WPL 4335905
46
WPL 4336164
47
WPL 4323675
48
WPL 4335924
49
Screw 6-20×3/8
50
WPL 4335903
51
Lens, Ind. Light
52
WPL 4337040
53
W10850756 Whirlpool Screw
54
WPL 4324204
55
WPL 4324205
56
Plate, Conduit
57
Nut, Lock
58
WPL 4336231
59
WPL 4335928
59
WPL 4336246
59
WPL 4335920
←
