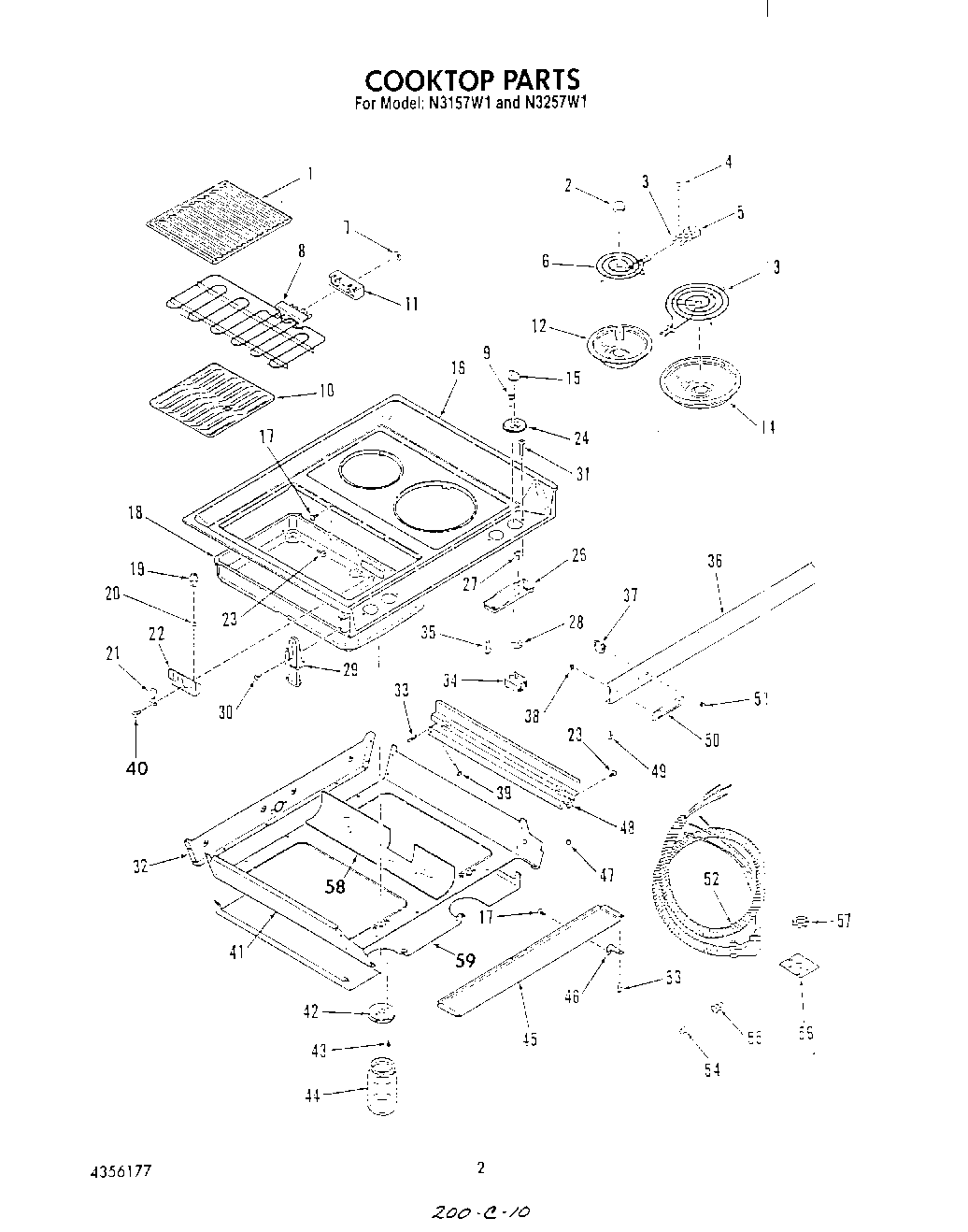

N3157W1 02 – COOK TOP

Products

Position	Product
1	Grate-Grill
2	Medallion (2)
3	WP4332752 Whirlpool Clip
4	Screw, No.7-32 x 5/16
5	BURNER RECEPTACLE KIT
6	WPY04100165 Whirlpool Surface Element
7	Nut, Speed
8	Element, Grill (240 Volt)
9	Screw, No.8-32 x 3/8
10	Reflector Grid
11	Block, Terminal
12	WPW10196406 Whirlpool 6" Chrome Drip Bowl
13	WP3177565 Whirlpool Surface Element
14	DRIP BOWL 8" W/HOLE CHROME
15	Knob, Infinite
16	Top, Main (Chrome N3157X)
16	Top, Main (Black N3257B)
16	Top, Main (White N3157W)
16	Top, Main (White N3257W)
16	Top, Main (Black N3157B)
16	Top, Main (Almond N3157L)
16	Top, Main (Almond N3257L)
16	Top, Main (Chrome N3257X)
17	Screw No.6-20×3/8
18	Grease Well (Left)
18	Grease Well (Right)
19	Terminal
21	Clamp, Terminal Block
22	Block, Terminal
23	SCREW
24	Bezel, Knob (Left Rear)
24	Bezel, Knob (Right Front)
24	Bezel, Knob (Left Front)
24	Bezel, Knob (Right Rear)
26	Mounting tray Switch (Rt or Lt)
27	Screw
28	Seal, Control
29	End Cap (Left)
29	End Cap (Right)
30	Screw No.10-32×1/2
31	WPL 4342651
32	WPL 4335895
33	WPL 4335925
34	W10900107 Whirlpool Oven Surface Element Switch
34	Knob, Infinite
35	Screw No.10-32×7/16
36	WPL 4336911
37	Light, Indicator
38	WPL 4323217
39	WPL 4335926
40	Screw, No.8-32 x 3/8
41	WPL 4337011
42	Jar Lid (2)
43	Screw No.10-32×1/4
44	WPY707869 Whirlpool Drain Jar
45	WPL 4335905
46	WPL 4336164
47	WPL 4323675
48	WPL 4335924
49	Screw 6-20×3/8
50	WPL 4335903
51	Lens, Ind. Light
52	WPL 4337040
53	W10850756 Whirlpool Screw
54	WPL 4324204
55	WPL 4324205
56	Plate, Conduit
57	Nut, Lock
58	WPL 4336231
59	WPL 4335928
59	WPL 4336246
59	WPL 4335920
