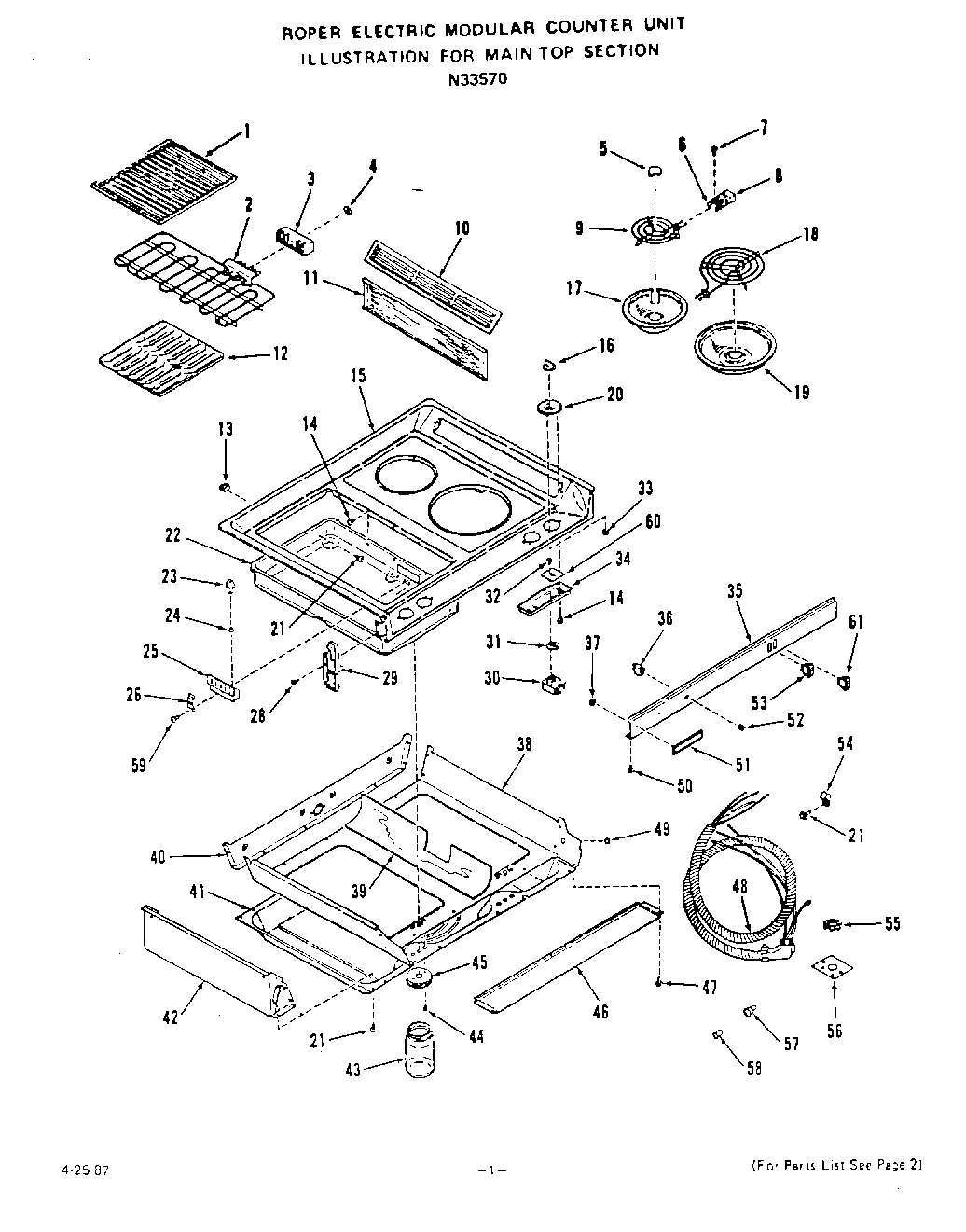

N3357W0 02 – MAIN TOP

Products

Position	Product
1	Grate-Grill (2 Req)
2	Element Grill
3	Terminal Block-Grill Element
4	Clip-Push On
5	Medallion (2 Req) All 2101 Models
6	Bracket-Term. Block (2 Req) All 2101 Mod.
7	Screw 7-32×5/16“(2 Req) All 2101 Models
8	Term. Block w/Leads-All 2101 Models
9	6“ Surface Element (1 Req) All 2101 Models
10	Air Intake-Grill (Rt. or Lt.)
11	Air Filter (Rt. or Lt.)
12	21012E & 21022E Models
14	Screw 6-20×3/8“
15	Toast 2141T
15	Platinum 2141P
15	WP3394509 Whirlpool Bearing Ring
15	Almond 2141L
15	Black 2141B
15	White 2141W
16	Knob-Infinite Control (4 Req)
17	6“ Burner Bowl (1 Req) All 2101 Models
18	8“ Surface Element (1 Req) All 2101 Mod.
19	8“ Burner Bowl (1 Req) All 2101 Models
20	WPL 331541
20	WPL 331540
20	WPL 331542
20	WPL 331543
21	Screw 10-16×7/16“
22	Left All 21011E,2E,21021E,2E Models
22	Right All 21011E & 21012E Models
23	21012E & 21022E Models
24	WPL 78565
25	WPL 333732
26	Baffle, Top Insulation
28	Screw-10-32×1/2“
29	WPL 328784
29	WPL 328783
30	WPL 331619
31	WPL 280157
32	Screw 8-32 x 3/8“
33	WPL 78593
34	WPL 331875
35	Front Panel
36	WPL 327326
37	WPL 24710
38	Housing-Bottom & Sides
39	WPL 330186
40	WPL 329000
41	WPL 329250
42	WPL 329013
43	WPL 329034
44	Screw 10 – 32 x 1/4“
45	WPL 329010
46	WPL 329019
47	WP112432 Whirlpool Nut Assembly
48	Harness Conduit
49	WPL 232365
50	Screw 6-20×3/8“
51	WPL 329016
52	WPL 329465
53	WPL 331038
54	WPL 109266
55	Nut (For Key 45)
56	WPL 333487
57	WPL 112062
58	WPL 112061
59	Screw 8ABx3/4“
60	WPL 330289
61	WPL 330117
