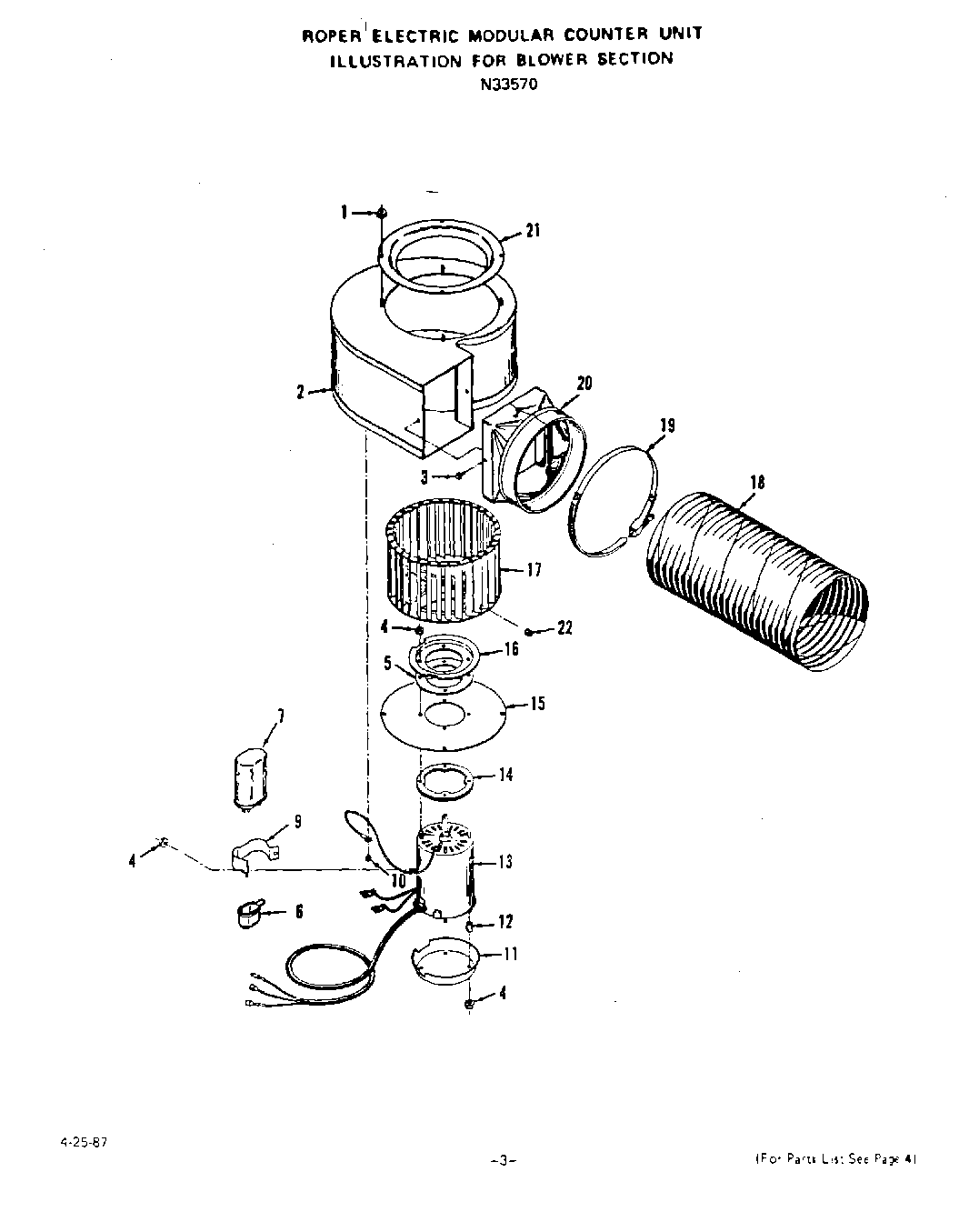

N3357W0 03 – BLOWER

Products

Position	Product
1	Lock Nut
2	Housing
3	Screw 10-16×7/16“
4	Keps Nut 8-32
5	Gasket-Motor Seal
6	Cap-Capacitor
7	Capacitor
9	Bracket-Capacitor
10	Screw 8ABx1/4“
11	Shield-Motor
12	Spacer (4 Req)
13	Motor
14	Rubber Motor Mount
15	Plate-Motor Mount
16	Seal-Motor
17	Impellor
18	Flexible Hose
19	Clamp-Hose
20	Discharge-Blower
21	Inlet Ring
22	Set Screw 24-5/16“x3/8“
