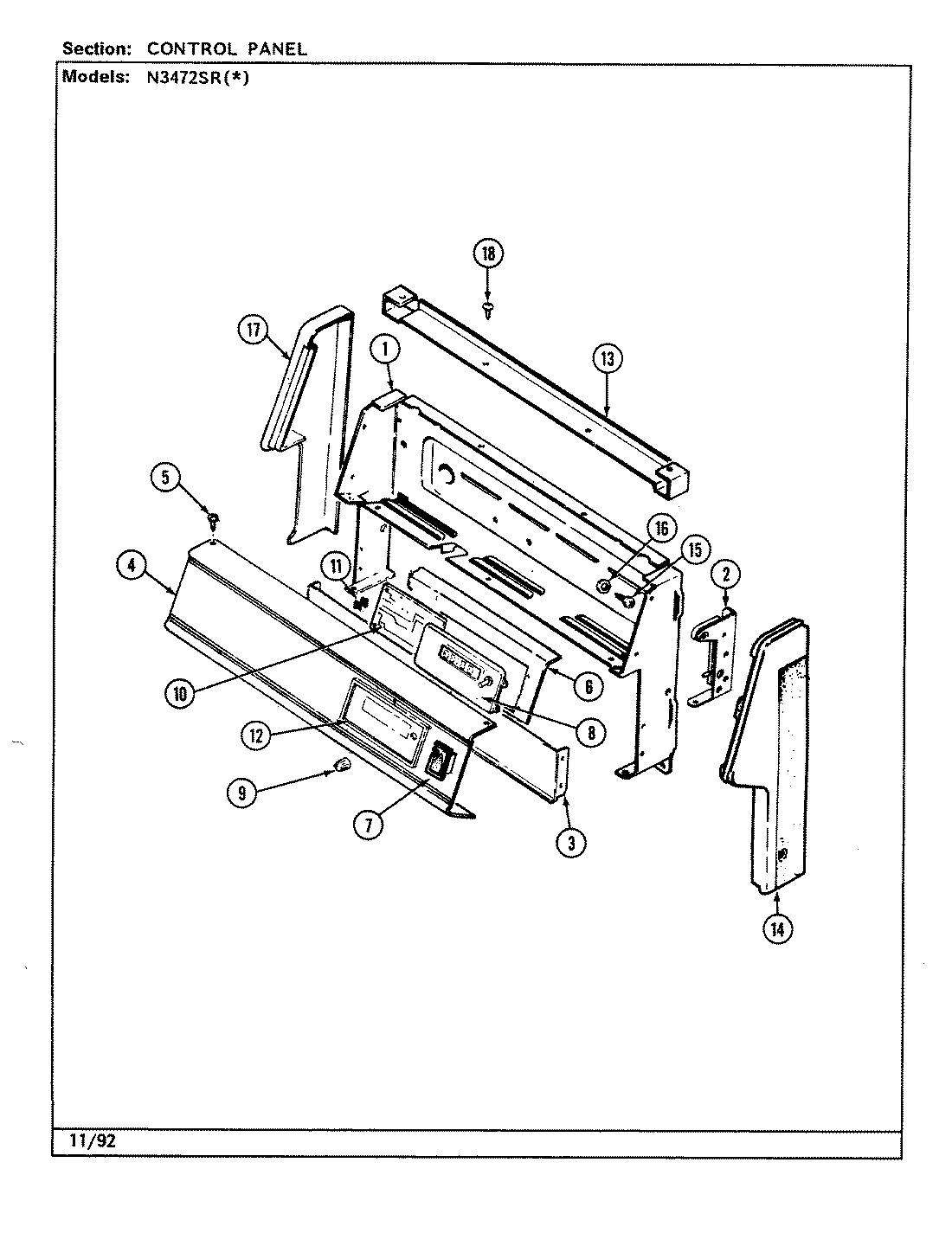

N3472SRW 02 – CONTROL PANEL

Products

Position	Product
1	MAY 4001F088-51
2	MAY 3418A088-34
2	MAY 3418A087-34
3	MAY 3604F188-09
4	MAY 4851S003-59
5	MAY 7118P019-60
6	MAY 3801F263-45
7	7403P067-60 Whirlpool Light Switch
8	MAY 7601P169-60
9	MAY 7711P431-60
10	MAY 7428P012-60
11	MAY 8004P020-60
12	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13	MAY 4001F064-51
14	MAY 7726P060-60
15	MAY 7118P018-60
16	MAY 7103P129-60
17	MAY 7726P059-60
18	MAY 7118P015-60
