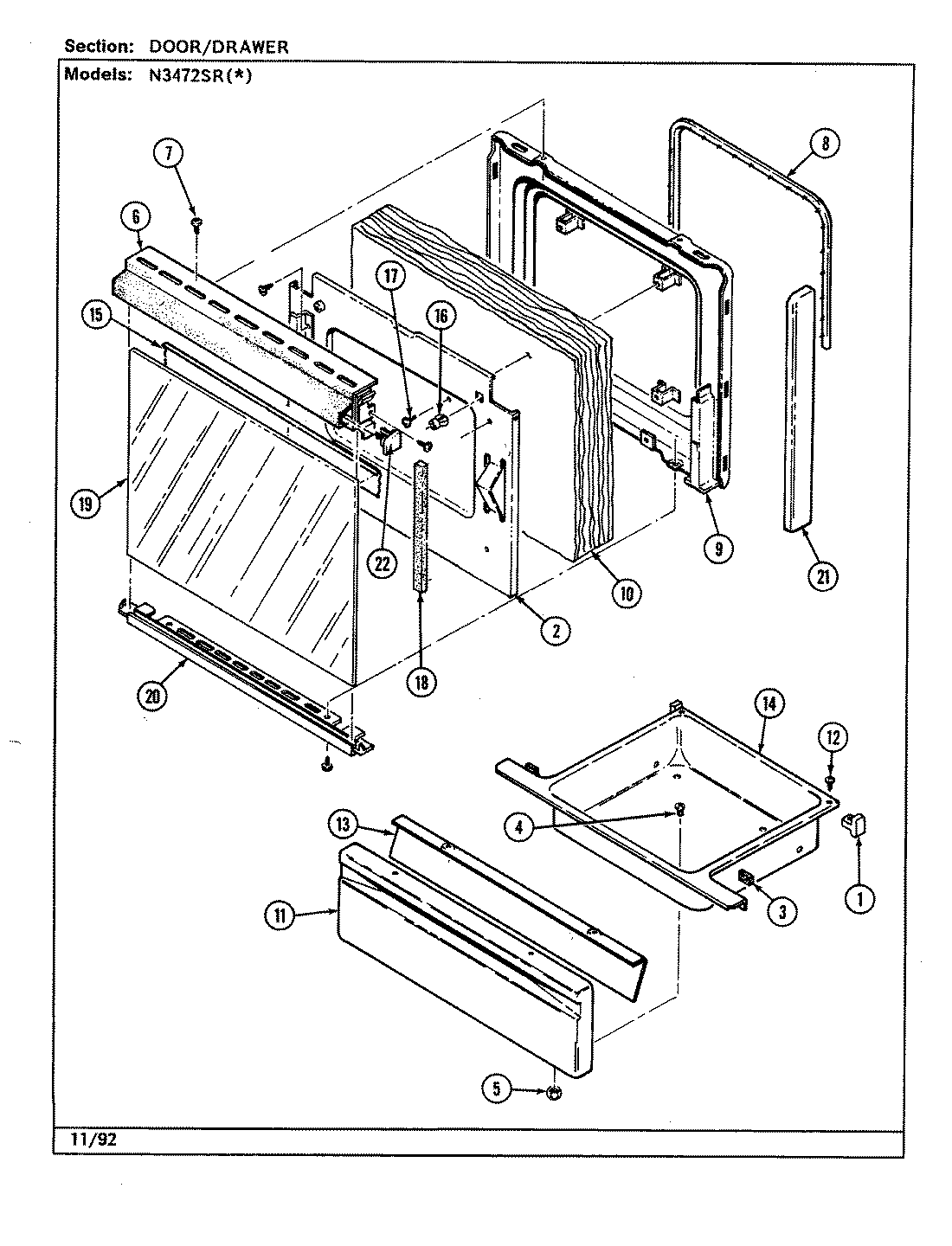

N3472SRW 03 – DOOR/DRAWER

N3472SRW 03 – DOOR/DRAWER

Written by

in

N3472SRW 03 – DOOR/DRAWER

Products

PositionProduct
1WP8004P026-60 Whirlpool Support
2MAY 3601F218-45
4WP4159193 Whirlpool Screw
5WPW10131078 Whirlpool Nut Assembly
6MAY 7701P103-60
8GASKT-DOOR OVEN
9MAY 2402W200-19
10MAY 4804F012-60
11MAY 2416F038-62
12MAY 7101P291-60
13LINING, DRAWER PANEL
14MAY 3405F014-80
15TAPE, FOIL (3“ WIDE)
16MAY 8010P075-60
17MAY 7101P290-60
17MAY 8010P086-60
18MAY 7208P011-60
19MAY 7902P325-60
20MAY 7744P105-60
21MAY 7744P055-60
22MAY 7744P076-60
22MAY 7744P075-60
