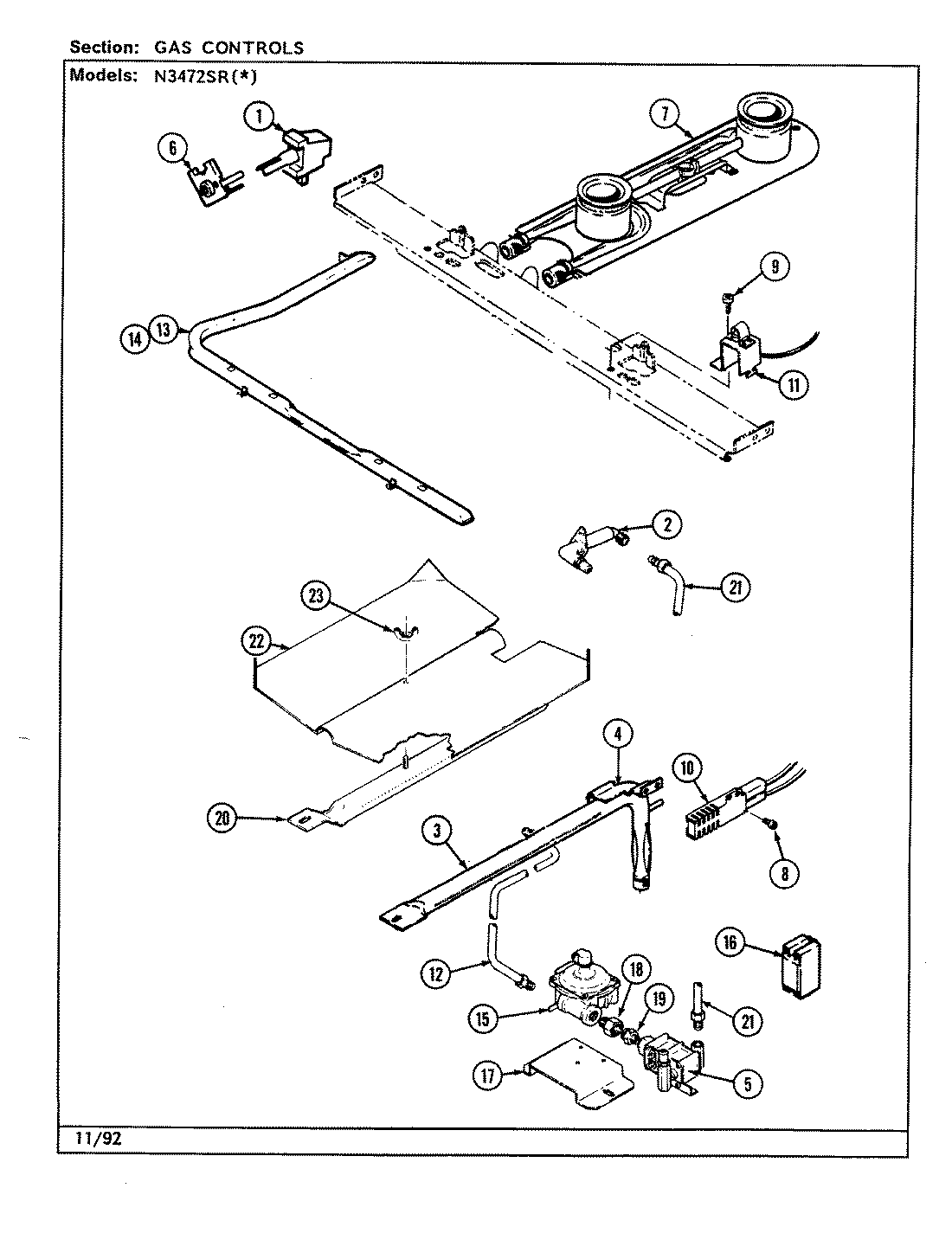

N3472SRW 04 – GAS CONTROLS – Aparts

N3472SRW 04 – GAS CONTROLS

Products

Position	Product
1	MAY 7101P044-60
1	MAY 7502P174-60
2	MAY 7507P088-60
2	MAY 3605F186-45
3	MAY 3403D043-45
4	MAY 3807F446-45
5	WP74006427 Whirlpool Oven Valve
6	MAY 7403P284-60
7	MAY 3412A004-19
8	SCREW (10-24X5/16-NI)
9	MAY 7118P015-60
10	MAY 7432P076-60
11	MAY 7432P015-60
11	MAY 7432P008-60
12	MAY 3414F103-44
13	MAY 7513P105-60
14	MAY 7103P130-60
15	MAY 7101P290-60
15	MAY 7510P050-60
16	MAY 3807F421-51
16	MAY 7431P006-60
17	MAY 8020P007-60
18	MAY 7507M125-60
19	MAY 7507M124-60
20	MAY 3403D024-45
21	MAY 3414F102-44
22	MAY 3601F217-45
23	MAY 3601F229-45
23	MAY 5125A312-60
23	MAY 5195D111-60
23	NUT, WING
