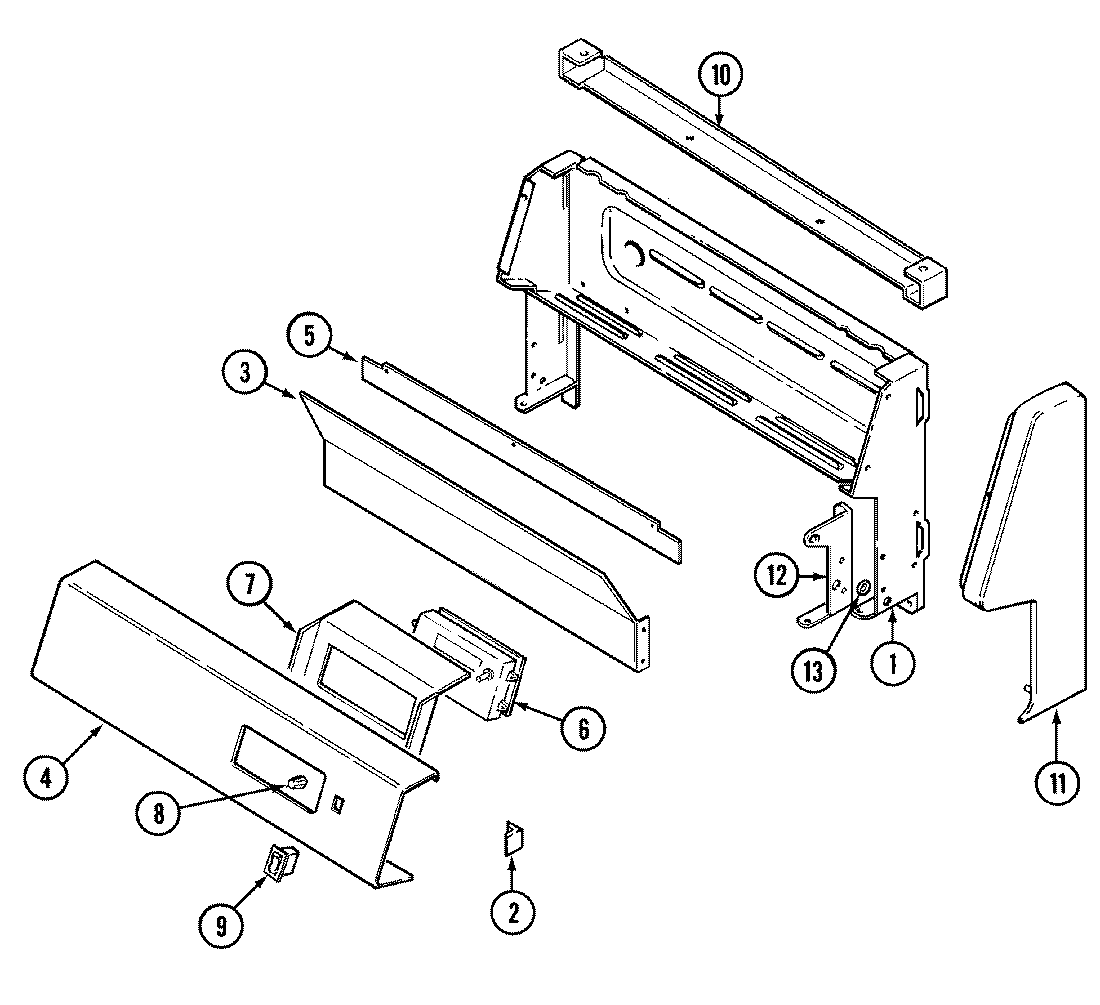

N3478XVA 02 – CONTROL PANEL

Products

Position	Product
1	MAY 4001F091-51
1	MAY 74002162
1	MAY 4005F448-45
2	MAY 7101P148-60
2	MAY 8010P083-60
3	MAY 3604F188-09
4	MAY 7703P603-60
5	MAY 8036P003-60
6	MAY 7601P239-60
6	MAY 74001541
6	WP59002061 Whirlpool Microwave Screw
7	WPY706189 Whirlpool Stove Screw
7	MAY 74002080
8	WP7711P492-60 Whirlpool Clock Knob
8	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
9	7403P067-60 Whirlpool Light Switch
10	MAY 4001F064-51
11	MAY 7726P059-60
11	MAY 7726P060-60
11	MAY 7101P331-60
12	SCREW (8BX3/8-NI)
12	MAY 3807F454-51
12	MAY 3807F453-51
13	WP3195558 Whirlpool Nut
14	MAY 5180D152-60
14	MAY 5170P204-60
15	MAY 8113P066-60
15	MAY 16007437
16	MAY 16000329
